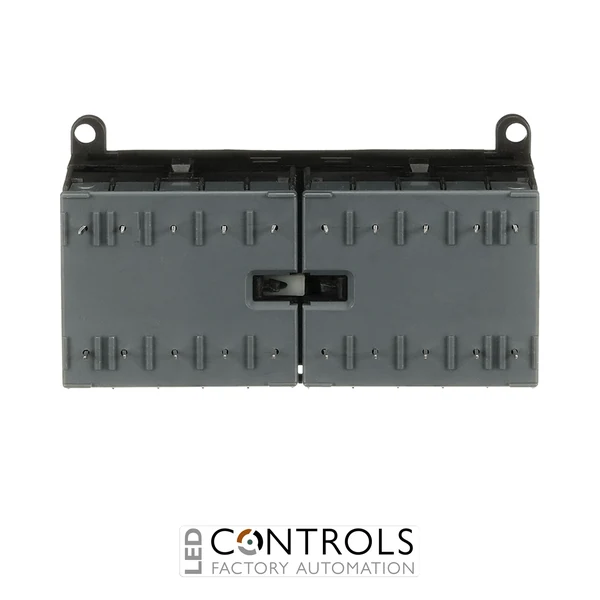

Why Choose the ABB GJL1213909R0101 Mini Reversing Contactor?
The ABB GJL1213909R0101 is a compact and reliable mini reversing contactor designed for efficient switching and reversing control of three-phase motors in industrial, commercial and automation applications. As part of the ABB GJL121 mini contactor series, it provides dependable motor control performance where installation space is limited and reliability is essential.
This contactor features a 24 V DC control coil, a compact three-pole main contact arrangement and an integrated mechanical interlock for reversing applications. The VBC6-30-10-P design includes soldering pin terminals, switch position indication and the ability for rail mounting, making it suitable for compact control panels and machine automation systems.
With an AC-3 motor switching capability of up to 4 kW, a rated operational voltage up to 690 V AC and a compact footprint, the ABB GJL1213909R0101 provides dependable motor reversing control for industrial equipment, automation systems and electrical installations.
Key Advantages
- Compact mini reversing contactor for space-saving installations.
- 24 V DC coil voltage for integration with modern control systems.
- Three-pole motor switching capability for reversing applications.
- Integrated mechanical interlock for safe reversing operation.
- Suitable for motor loads up to 4 kW AC-3.
- Robust ABB design for industrial automation and control panels.
Key Features
- ABB GJL121 mini contactor series.
- VBC6-30-10-P-01 mini reversing contactor.
- 24 V DC control coil.
- 3 NO main contacts.
- 1 NO auxiliary contact.
- Soldering pin terminals for compact installation.
- Integrated normal mechanical interlock.
- Noiseless and hum-free DC coil operation.
- Switch position indication for easier status identification.
Reliable Motor Reversing Control for Industrial Applications
Mini reversing contactors such as the ABB GJL1213909R0101 provide a compact solution for controlling the forward and reverse operation of three-phase motors. By combining power switching contacts with mechanical interlocking, they enable reliable motor direction control in automated equipment and electrical control systems.
The ABB GJL121 series is designed for applications where reduced panel space, dependable switching performance and straightforward integration are required. Its compact construction makes it suitable for machine builders, OEM equipment manufacturers and industrial control engineers.
Typical Applications
- Industrial motor reversing circuits.
- Machine automation and control panels.
- Small three-phase motor starters.
- Conveyors and material handling equipment.
- OEM machinery and compact electrical systems.
- Commercial and industrial installations.
