Why Choose the ABB GJL1313001R0011 Mini Contactor?

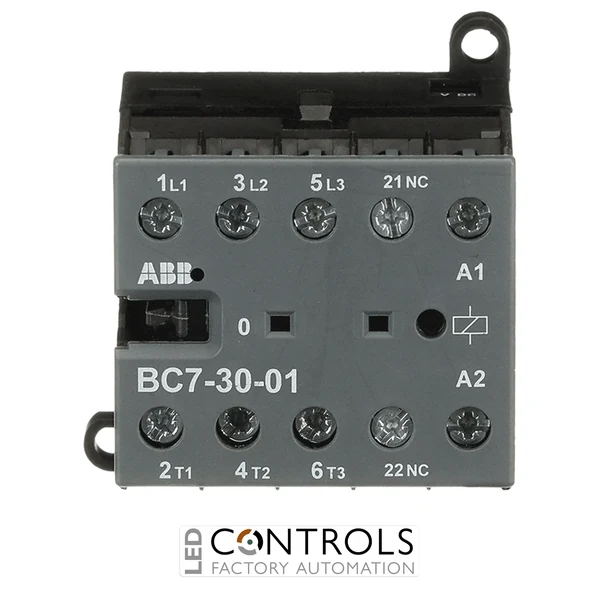

The ABB GJL1313001R0011, also known as the BC7-30-01-01, is a compact and reliable three-pole mini contactor designed for motor control, load switching and control signal applications. As part of the ABB BC7 mini contactor range, it is built for installations where dependable operation and space-saving panel design are important.
This mini contactor is suitable for residential, commercial and industrial electrical systems. With its compact construction, screw terminals and integrated auxiliary contact, the BC7-30-01-01 supports straightforward installation and control circuit integration inside electrical panels, automation cabinets and machinery systems.
With a 24 V DC coil, 3 normally open main contacts and 1 normally closed auxiliary contact, the ABB GJL1313001R0011 is suitable for switching single-phase and three-phase loads. It supports motor control duties up to 5.5 kW at 400 V AC-3 and general load switching up to 20 A AC-1.
Key Advantages
- Compact three-pole mini contactor for space-saving control panel installations.
- 24 V DC control coil suitable for low-voltage control systems.
- 3NO main contact configuration for switching single-phase or three-phase loads.
- Integrated 1NC auxiliary contact for signalling, interlocking and control feedback.
- Supports motor control duties up to 5.5 kW at 400 V AC-3.
- Screw terminals provide secure and straightforward wiring.
Key Features
- ABB BC7 mini contactor series.
- Model BC7-30-01-01.
- Three normally open main contacts.
- One normally closed auxiliary contact.
- 24 V DC rated control circuit voltage.
- 20 A conventional free-air thermal current.
- Rated insulation voltage of 690 V.
- Noiseless and hum-free coil operation.
- Integrated switch position indication.
- DIN rail or wall mounting capability.
Compact Switching for Motor and Control Circuits
Mini contactors such as the ABB BC7-30-01-01 are used to switch motors, lighting circuits, heating loads and control signals in electrical installations. Their compact size makes them ideal for applications where control panel space is limited but reliable switching performance is still required.
The ABB BC7 range is designed for dependable operation in automation systems, building services and industrial control panels. Its hum-free DC coil, auxiliary contact and visible switch position indication help support reliable control, feedback and maintenance in modern electrical systems.
Typical Applications
- Small motor control circuits.
- Single-phase and three-phase load switching.
- Industrial control panels and automation cabinets.
- Residential and commercial electrical installations.
- Lighting, heating and ventilation control systems.
- Machine building and OEM equipment.
- Control signal switching and interlocking circuits.
