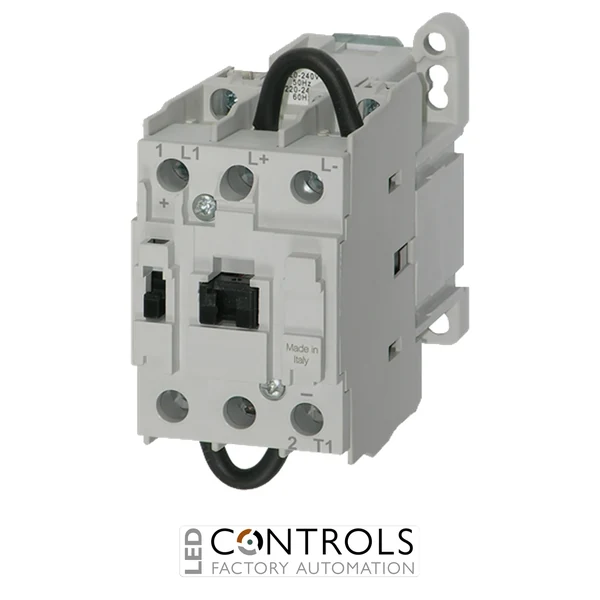

imo mdc20-s-00230ac dc switching contactor 20a 600vdc dc1 230vac

Q: What current rating does this contactor provide?

This contactor provides a 20A DC1 operational rating.

Q: What coil voltage does this model use?

This model is fitted with a 230V AC control coil.

IMO MDC20-S-00230AC DC switching contactor with 20A DC1 rating, 600V DC switching capability and 230V AC coil for solar PV, battery storage and industrial DC switching applications.

SKU: MDC20-S-00230ACAlt SKU: MDC20S00230ACMPN: MDC20-S-00230AC

List Price £388.07 ex VAT

Your Price (ex VAT)

£388.07

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £388.07

Trade pricing is personalised to your account

Manufacturer Lead Time

£388.07

Why Choose the IMO MDC20-S-00230AC DC Switching Contactor?

The IMO MDC20-S-00230AC is a compact and reliable DC switching contactor designed for safe switching of direct current circuits in solar PV, battery storage and industrial DC control systems. Manufactured by IMO Precision Controls, this contactor is engineered for applications where dependable DC isolation and switching performance are essential.

Designed specifically for DC loads, the MDC20-S-00230AC provides a DC1 operational rating of 20A at 600V DC. Its specialist contact design supports reliable DC switching while helping protect equipment and improve system safety in renewable energy and industrial installations.

With a 230V AC control coil, compact construction and panel-mounting design, the MDC20-S-00230AC is ideal for integration into photovoltaic systems, DC distribution panels, battery storage equipment and industrial control cabinets.

Key Advantages

Compact DC switching contactor for renewable energy and industrial systems.
20A DC1 operational rating at 600V DC.
230V AC coil for standard industrial control circuits.
Designed specifically for reliable direct current switching.
Suitable for solar PV, battery storage and DC isolation applications.
Compact panel-mounted design for control cabinets and distribution equipment.

Key Features

IMO MDC Series DC switching contactor.
20A rated operational current.
600V DC DC1 switching capability.
230V AC operating coil.
1 string DC switching configuration.
IP20 protection rating.
Designed for photovoltaic and industrial DC applications.
Compact construction for panel integration.

Reliable DC Switching for Renewable Energy Systems

Direct current circuits require contactors designed to manage DC arcing safely and consistently. The IMO MDC20-S-00230AC is engineered for reliable switching of DC loads, making it suitable for systems where controlled isolation and long-term operational reliability are important.

Its 20A 600V DC rating and 230V AC coil make it a practical choice for panel builders, renewable energy engineers and system integrators working with DC distribution, photovoltaic equipment and battery storage applications.

Typical Applications

Solar photovoltaic systems.
Battery energy storage systems.
Industrial DC control panels.
DC distribution and isolation equipment.
Renewable energy switching systems.
Automation systems requiring DC load switching.

Technical Specifications

Coil Voltage Range	200–250 V
Device Type	DC Switching Contactor
Current	20 A
Voltage	230 V
Phase	Three Phase
IP Rating	IP20
Series	MDC Series DC Contactors
Product type	DC switching contactor
Rated operational current	20A DC1
Rated operational voltage	600V DC
Switching configuration	1 string
Control coil voltage	230V AC
Protection rating	IP20
Cable size	2 × 1.5 to 10 mm²
Operating temperature	-25°C to +40°C
Mounting type	DIN rail or screw mounting
Application category	DC1
Standards	IEC/EN 60947-4-1, UL508
HS Code	8536490099
Country of Manufacture	Austria
Coil Type	AC

Frequently Asked Questions

What is the IMO MDC20-S-00230AC used for?

The IMO MDC20-S-00230AC is used for switching DC loads in solar PV systems, battery storage equipment, industrial DC panels and renewable energy control applications.

What current rating does this contactor provide?

This contactor provides a 20A DC1 operational rating.

What voltage is the MDC20-S-00230AC rated for?

The MDC20-S-00230AC is rated for switching applications up to 600V DC.

What coil voltage does this model use?

This model is fitted with a 230V AC control coil.

Where is this contactor typically installed?

It is typically installed in solar PV equipment, battery storage panels, DC distribution boards and industrial control cabinets.

Trusted by Renewable Energy and Industrial Engineers Worldwide

IMO MDC Series DC switching contactors are trusted by engineers, panel builders and renewable energy professionals for reliable DC load switching, compact installation and dependable long-term performance.
