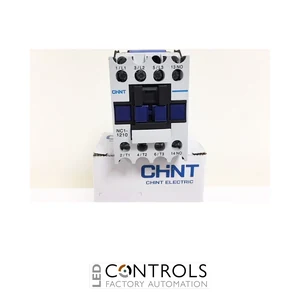

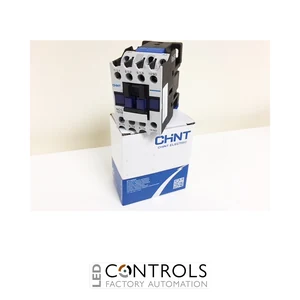

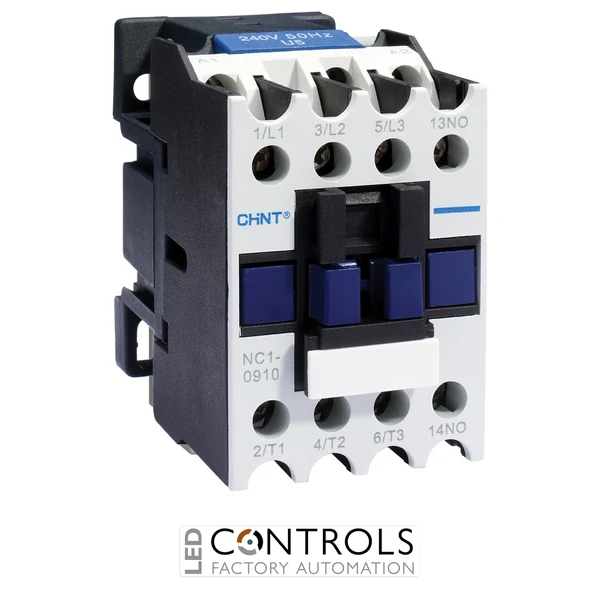

CHINT NC1-1210-48V industrial AC contactor with 12A AC-3 rating, 48V AC coil and 3 NO main poles plus 1 NO auxiliary contact for motor control and industrial automation systems.
£25.85
The CHINT NC1-1210-48V is a compact and reliable AC contactor designed for controlling motors, electrical loads and industrial automation circuits. As part of the trusted CHINT NC1 contactor series, it provides dependable switching performance for commercial and industrial applications requiring reliable remote operation.
This contactor combines robust electrical performance with a space-saving design, making it suitable for motor starters, control panels and automation systems. The NC1 series is engineered for frequent remote making and breaking of AC circuits while supporting long service life and compatibility with industrial accessories.
With a rated operational current of 12A AC-3, a 20A AC-1 thermal current rating, a 5.5 kW motor control capacity and a 48V AC coil, the CHINT NC1-1210-48V is ideal for three-phase motor switching applications. It features 3 normally open main poles and 1 normally open auxiliary contact for flexible control circuit arrangements.
AC contactors such as the CHINT NC1-1210-48V provide safe and efficient control of electrical circuits by enabling remote switching of motors and other AC loads. They are widely used in motor starters, automation panels and industrial control equipment.
The NC1 series offers dependable switching performance, compact dimensions and compatibility with additional accessories, helping engineers create flexible and reliable electrical systems for industrial applications.
| Power | 5.5 kW |
|---|---|
| Current | 12 A |
| Voltage | 48 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | NC1 AC Contactors |
| Product type | AC contactor |
| Rated operational current (AC-3) | 12 A |
| AC-1 thermal current | 20 A |
| Control coil voltage | 48 V AC |
| Rated operational voltage | Up to 690 V AC |
| Motor power at 400 V | 5.5 kW |
| Main poles | 3 NO |
| Auxiliary contacts | 1 NO |
| Frequency | 50 / 60 Hz |
| Utilisation category | AC-1, AC-3, AC-4 |
| Mounting type | DIN rail or screw mounting |
| Protection rating | IP20 |
| Mechanical life | Approx. 10 million operations |
| Electrical life (AC-3) | Approx. 1 million operations |
| Dimensions | Approx. 82 × 45 × 86 mm |
| Ambient operating temperature | Approx. -5 °C to +40 °C |
| Standards | IEC/EN 60947-4-1 |
The CHINT NC1-1210-48V is an AC contactor used for switching and controlling electric motors, lighting systems and industrial power circuits in automation applications.
The contactor supports motors with a rated output power of approximately 5.5 kW under AC-3 operating conditions.
The contactor uses a 48V AC control coil suitable for industrial automation and motor control applications.
The CHINT NC1-1210-48V features 3 normally open main poles and 1 normally open auxiliary contact.
This contactor is commonly installed inside electrical control panels, motor starters and industrial automation systems.
CHINT NC1 contactors are widely used in industrial and commercial electrical systems to provide reliable motor switching, efficient control and dependable automation performance.
