Why Choose the ABB 2CDS200912R0001 S2C-H6R Auxiliary Contact?

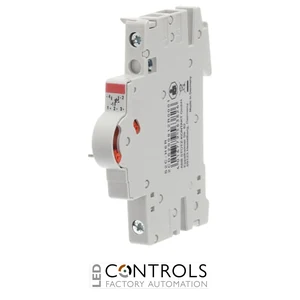

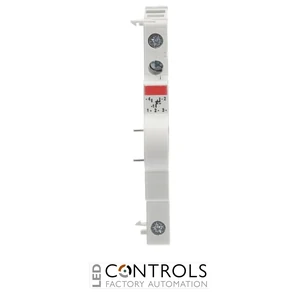

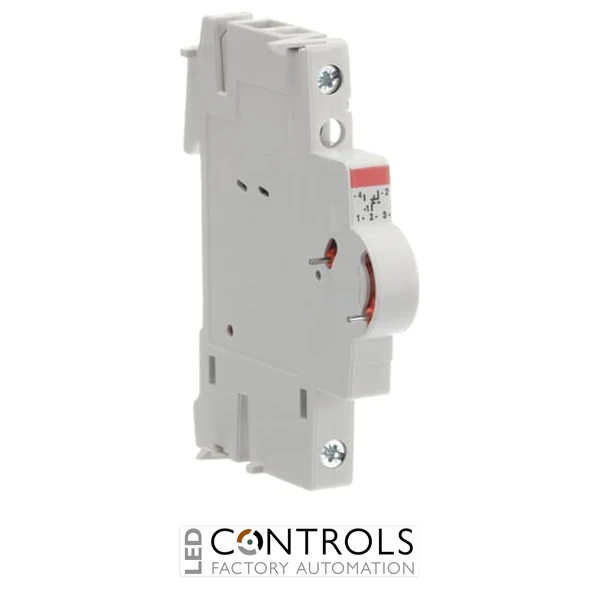

The ABB 2CDS200912R0001, also known as the S2C-H6R auxiliary contact, is a compact and reliable auxiliary switching accessory designed for ABB miniature circuit breakers and residual current devices. As part of the ABB S2C auxiliary contact range, it provides remote indication of the operating position of connected protection devices in industrial, commercial and electrical distribution applications.
The S2C-H6R features a 1 changeover (CO/SPDT) contact configuration, allowing monitoring systems to receive accurate status feedback from connected ABB protection devices. Its side-mounted design enables simple installation on compatible ABB circuit breakers and modular DIN rail equipment.
Designed for ABB S200 series miniature circuit breakers, SN201 series devices, F200 RCCBs and compatible DS200/DS201 protection products, the 2CDS200912R0001 provides a space-saving solution for electrical status monitoring and automation integration.
Key Advantages
- Reliable auxiliary contact accessory for ABB protection devices.
- 1CO (SPDT) contact configuration for flexible status monitoring.
- Compact 8.8 mm modular width saves panel space.
- Compatible with ABB S200 series miniature circuit breakers.
- Side mounting allows easy installation on existing devices.
- Provides reliable remote indication of circuit breaker status.
Key Features
- ABB S2C auxiliary contact series.
- Model: S2C-H6R.
- Product ID: 2CDS200912R0001.
- Product type: Auxiliary contact.
- Contact configuration: 1 changeover contact (CO/SPDT).
- Mounting position: Right side of compatible devices.
- Indicates the position of connected protection device contacts.
- Compatible with ABB modular DIN rail products.
Reliable Circuit Breaker Status Monitoring
The ABB S2C-H6R auxiliary contact enables electrical systems to monitor the switching position of connected protective devices. This allows integration with control systems, alarms, building management systems and industrial automation equipment requiring reliable feedback signals.
Its compact System pro M compact design allows efficient installation alongside ABB modular protection equipment. The S2C-H6R provides dependable signalling performance while maintaining compatibility with ABB's established circuit breaker accessory platform.
Typical Applications
- Industrial electrical distribution boards.
- Automation control panels.
- Remote circuit breaker monitoring systems.
- Building management systems.
- Machine control cabinets.
- Electrical protection installations.
