Why Choose the Lovato SM1X3141R Rigid Breaker-Contactor Connection?

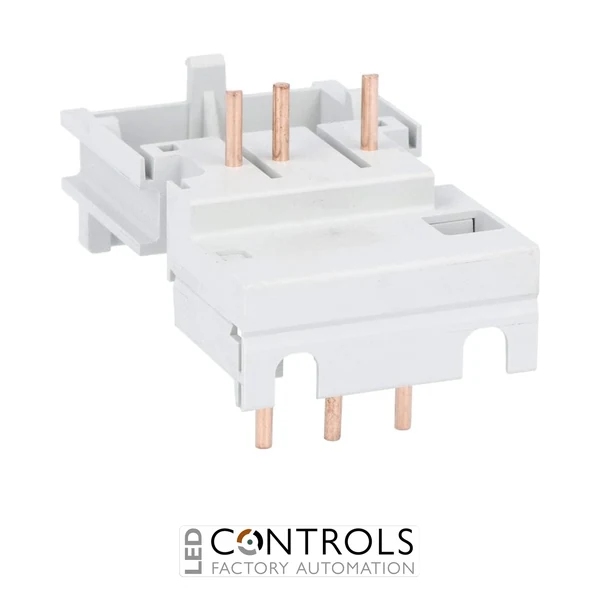

The Lovato SM1X3141R is a compact rigid breaker-contactor connection accessory designed to connect Lovato SM1R motor protection circuit breakers with BF09…25A contactors. As part of the Lovato SM1X accessory range, it provides a reliable and space-saving solution for building compact motor starter assemblies in industrial control panels.
This rigid connection accessory simplifies the assembly of motor protection and switching equipment by providing a fixed mechanical and electrical interface between compatible Lovato components. It helps reduce wiring requirements, improve panel organisation and ensure consistent installation of motor starter combinations.
With compatibility for SM1R motor protection breakers and BF09…25A contactors, an IEC maximum current rating of 25 A and a lightweight 35 g construction, the SM1X3141R is suitable for industrial automation panels, machinery control systems and motor starter applications.
Key Advantages
- Dedicated rigid breaker-contactor connection accessory for Lovato SM1R devices.
- Creates compact motor starter assemblies with compatible BF contactors.
- Provides reliable mechanical and electrical interconnection.
- Reduces panel wiring and simplifies installation.
- Maintains correct alignment between protection and switching devices.
- Genuine Lovato accessory designed for SM1 motor control systems.
Key Features
- Lovato SM1X accessory series.
- Rigid SM1 breaker-contactor connection.
- For SM1R motor protection breakers with BF09…25A contactors.
- IEC maximum current rating of 25 A.
- 35 g lightweight construction.
- Designed for compact industrial motor starter assemblies.
- Suitable for professional control panel integration.
Reliable Motor Starter Integration for Industrial Systems
Rigid connection accessories such as the Lovato SM1X3141R provide an efficient method of combining motor protection circuit breakers and contactors into compact starter solutions. This approach reduces installation complexity while maintaining reliable connection between compatible control components.
The SM1X accessory range is designed for industrial engineers and panel builders requiring space-efficient motor control solutions with manufacturer-approved compatibility between protection and switching devices.
Typical Applications
- Industrial motor starter assemblies.
- Automation control panels.
- Machine building applications.
- Motor protection and switching systems.
- DIN rail mounted control cabinets.
- Industrial equipment manufacturing.
