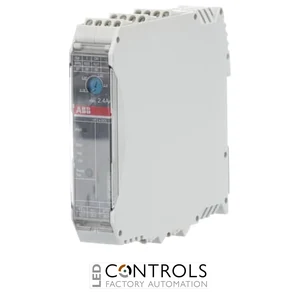

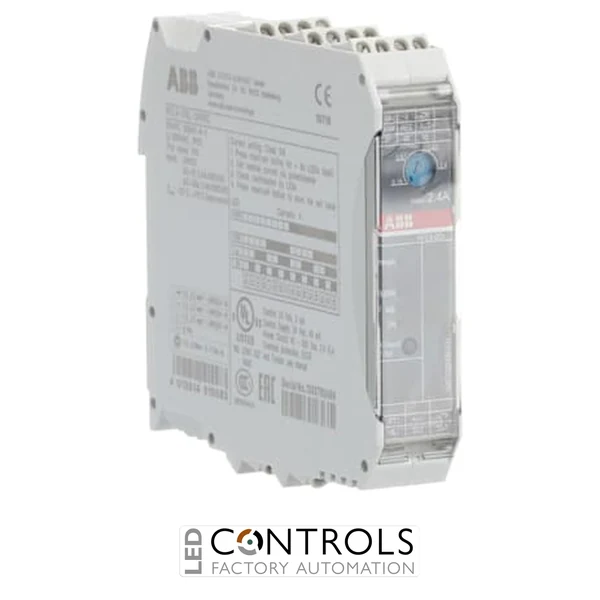

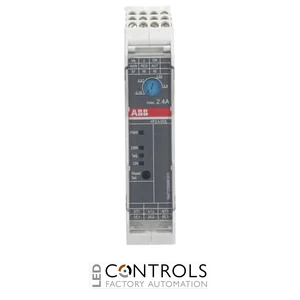

Why Choose the ABB 1SAT122000R1011 HF2.4-DOL Electronic Compact Starter?
The ABB 1SAT122000R1011 is a compact and reliable electronic direct-on-line motor starter designed for efficient motor starting, electronic overload protection and industrial automation applications. Part of the ABB HF-DOL electronic compact starter series, this device combines contactor and overload relay functionality into a single space-saving unit, helping reduce wiring time and improve system reliability.
The HF2.4-DOL-24VDC starter is designed for direct-on-line starting of motors and switching of non-resistive loads. Its integrated electronic overload protection provides a wide adjustment range, allowing fewer starter models to cover a broad range of motor applications.
With a 24 V DC control supply, 2.4 A rated operational current, adjustable overload protection from 0.18 A to 2.4 A and operation up to 500 V AC, the ABB 1SAT122000R1011 is suitable for industrial machinery, automation systems and OEM control panels.
Key Advantages
- Compact electronic motor starter with integrated overload protection.
- Combines contactor and overload relay functions in one device.
- 24 V DC control supply for PLC and automation applications.
- Adjustable overload protection from 0.18 A to 2.4 A.
- Space-saving 22.5 mm wide housing for modern control cabinets.
- Reduces installation time and wiring complexity.
Key Features
- ABB HF-DOL electronic compact starter series.
- Model: 1SAT122000R1011.
- Type: HF2.4-DOL-24VDC.
- Direct-on-line motor starter function.
- Integrated electronic overload protection.
- 2.4 A rated operational current.
- Class 10A overload trip characteristic.
- Three protected poles.
- DIN rail mounting according to IEC 60715.
- Screw terminal connections for control and main circuits.
Reliable Motor Starting and Protection for Industrial Systems
The ABB 1SAT122000R1011 provides an integrated solution for controlling and protecting motors in industrial environments. By combining motor switching and electronic overload protection into one compact device, it simplifies control cabinet design while improving operational reliability.
ABB HF-DOL electronic compact starters are designed for machine builders and automation engineers who require efficient motor control solutions with reduced wiring requirements, accurate protection settings and dependable performance in demanding applications.
Typical Applications
- Industrial automation machinery.
- Small and medium motor control systems.
- Conveyors and material handling equipment.
- Pumps and auxiliary drives.
- Machine-building control panels.
- OEM automation systems.
- Production and process equipment.
