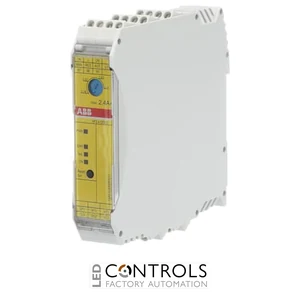

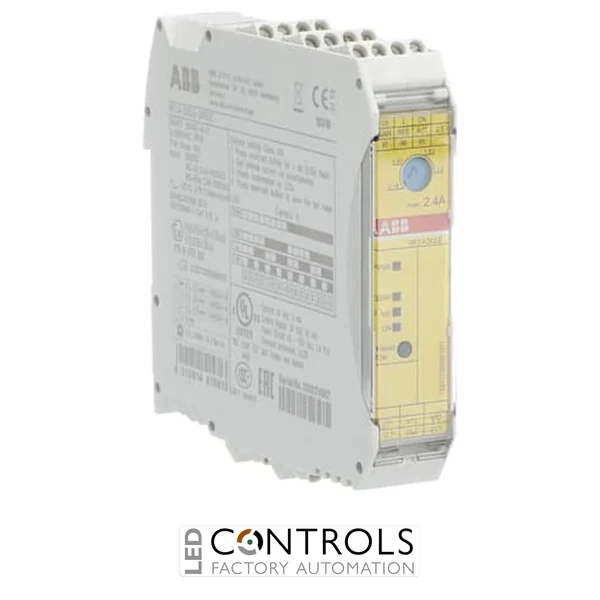

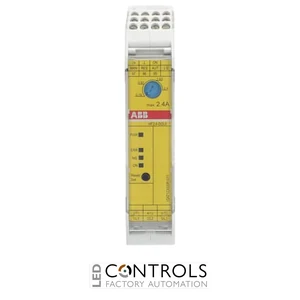

Why Choose the ABB 1SAT123000R1011 HF2.4-DOLE Electronic Compact Starter?
The ABB 1SAT123000R1011 is a compact and advanced electronic direct-on-line motor starter designed for motor starting, electronic overload protection and emergency stop functionality in industrial automation systems. Part of the ABB HF-DOLE electronic compact starter safety range, this device combines contactor and overload relay functionality into one space-saving solution, reducing wiring effort and improving system reliability.
The HF2.4-DOLE-24VDC starter is designed for direct-on-line starting of motors and switching of non-resistive loads while providing integrated electronic overload protection and emergency switching-off functionality. Its compact 22.5 mm width makes it ideal for modern machine control cabinets where space efficiency and safety performance are required.
With a 24 V DC control supply, 2.4 A rated operational current, adjustable overload protection from 0.18 A to 2.4 A and support for motors up to approximately 0.75 kW at 400 V AC, the ABB 1SAT123000R1011 is suitable for industrial machinery, OEM automation systems and safety-focused control applications.
Key Advantages
- Integrated electronic motor starter with overload protection and emergency stop function.
- Combines contactor and overload relay functionality in one compact device.
- 24 V DC control supply compatible with PLC-based automation systems.
- Adjustable overload protection from 0.18 A to 2.4 A.
- Space-saving 22.5 mm housing width for efficient panel design.
- Certified safety functionality including SIL 3 and Performance Level e compliance.
Key Features
- ABB HF-DOLE electronic compact starter safety series.
- Model: 1SAT123000R1011.
- Type: HF2.4-DOLE-24VDC.
- Direct-on-line motor starter function.
- Integrated electronic overload protection.
- Emergency switching-off function.
- 2.4 A rated operational current.
- Class 10A overload trip characteristic.
- Three-phase motor switching capability.
- DIN rail mounting design.
- Screw terminal connections for control and main circuits.
Reliable Motor Starting and Safety Protection for Industrial Systems
The ABB 1SAT123000R1011 provides an integrated solution for controlling and protecting motors in industrial environments. By combining motor switching, electronic overload protection and emergency stop functionality into one compact device, it simplifies control cabinet design while improving operational reliability.
ABB HF-DOLE electronic compact starters are designed for machine builders and automation engineers requiring compact motor control solutions with integrated safety functions, reduced wiring requirements and dependable performance in demanding applications.
Typical Applications
- Industrial automation machinery.
- Machine-building control panels.
- Small and medium motor control systems.
- Conveyor and material handling equipment.
- Pumps and auxiliary drives.
- OEM production machinery.
- Safety-related industrial equipment.
