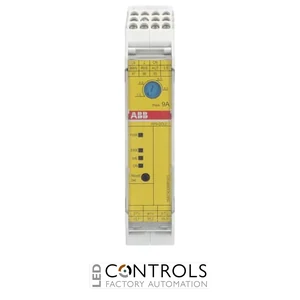

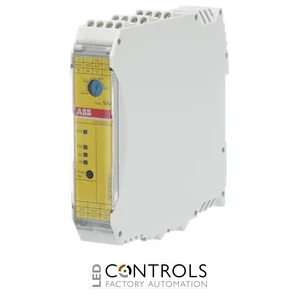

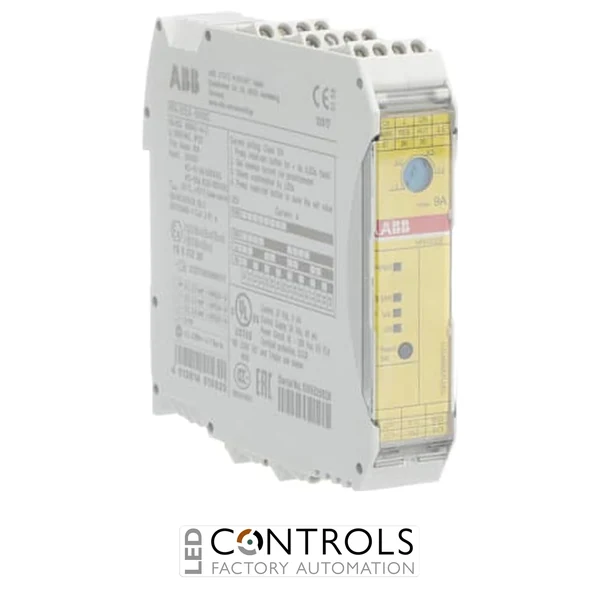

ABB 1SAT143000R1011 HF9-DOLE-24VDC electronic compact direct-on-line starter with integrated overload protection, emergency stop function, 1.5-9 A setting range and 24 V DC control supply for industrial motor control and machine safety applications.
£228.84
The ABB 1SAT143000R1011 is a compact and advanced HF9-DOLE-24VDC electronic compact starter designed for direct-on-line motor starting, electronic overload protection and emergency stop functionality in industrial automation applications. Part of the ABB HF-DOLE safety starter range, it combines contactor and overload relay functions into one space-saving device for faster installation and improved system reliability.
The integrated hybrid design reduces control panel wiring requirements while providing dependable motor switching and protection. The HF9-DOLE-24VDC is developed for machine builders and automation engineers requiring compact motor control solutions with built-in safety functionality.
With a 24 V DC control supply, 9 A rated operational current and an adjustable overload protection range of 1.5 A to 9 A, the ABB 1SAT143000R1011 is suitable for motors up to approximately 3 kW at 400 V AC. Its narrow 22.5 mm housing allows efficient installation in modern electrical control cabinets.
The ABB HF9-DOLE-24VDC provides a complete motor starting solution by integrating direct-on-line switching, electronic overload monitoring and emergency stop functionality into a single compact starter. This reduces component count while improving machine reliability and simplifying control system design.
Designed for industrial automation environments, the starter supports motors used in production machinery, OEM equipment and automated systems where space saving, protection and functional safety are essential.
| Power | 3 kW |
|---|---|
| Current | 9 A |
| Voltage | 24 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | HF-DOLE Electronic Compact Starters |
| Product ID | 1SAT143000R1011 |
| Product type | Electronic compact starter |
| Starter function | Direct-on-line starter with overload protection and emergency stop function |
| Rated current setting range | 1.5-9 A |
| Rated operation current at AC-3, 400 V | 9 A |
| Rated operational power at 400 V AC-3 | 3 kW |
| Control supply voltage | 24 V DC |
| Main circuit voltage range | 42-550 V AC |
| Rated operational voltage | 500 V AC |
| Maximum operational voltage | 550 V AC |
| Frequency | 50 / 60 Hz |
| Number of poles | 3 |
| Connection type | Screw terminals |
| Safety rating | SIL 3 / Performance Level e |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-2, IEC/EN 61508, ISO 13849 |
| ATEX certification | Certified |
| Dimensions (H × W × D) | approx. 99 × 22.5 × 114.5 mm |
| Weight | approx. 0.218 kg |
| EAN | 4013614515620 |
| Customs tariff number | 85371098 |
The ABB 1SAT143000R1011 is an HF9-DOLE-24VDC electronic compact starter used for direct-on-line motor starting, overload protection and emergency stop functionality.
The starter supports motors with a rated operational current of 9 A and an adjustable overload protection range from 1.5 A to 9 A.
The starter requires a 24 V DC control supply voltage.
Yes, the HF-DOLE safety range includes an integrated emergency stop function designed for industrial safety applications.
The starter is typically installed inside industrial control cabinets using DIN rail mounting for automation and machine control systems.
ABB HF-DOLE electronic compact starters deliver efficient motor control, integrated protection and safety functionality for modern industrial automation systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "ABB HF9-DOLE-24VDC Electronic Compact Starter", "sku": "1SAT143000R1011", "mpn": "1SAT143000R1011", "brand": { "@type": "Brand", "name": "ABB" }, "category": "Electronic Motor Starters", "description": "ABB 1SAT143000R1011 HF9-DOLE-24VDC electronic compact starter with direct-on-line motor starting, electronic overload protection and emergency stop function.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Control supply voltage", "value": "24 V DC" }, { "@type": "PropertyValue", "name": "Rated operational current", "value": "9 A" }, { "@type": "PropertyValue", "name": "Overload setting range", "value": "1.5 ... 9 A" }, { "@type": "PropertyValue", "name": "Motor power rating", "value": "Up to 3 kW" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the ABB 1SAT143000R1011 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB 1SAT143000R1011 is an HF9-DOLE-24VDC electronic compact starter used for direct-on-line motor starting, overload protection and emergency stop functionality." } }, { "@type": "Question", "name": "What motor current does this starter support?", "acceptedAnswer": { "@type": "Answer", "text": "The starter supports motors with a rated operational current of 9 A and an adjustable overload protection range from 1.5 A to 9 A." } }, { "@type": "Question", "name": "What control voltage does the HF9-DOLE-24VDC require?", "acceptedAnswer": { "@type": "Answer", "text": "The starter requires a 24 V DC control supply voltage." } }, { "@type": "Question", "name": "Does this starter include emergency stop functionality?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the HF-DOLE safety range includes an integrated emergency stop function designed for industrial safety applications." } } ] }
