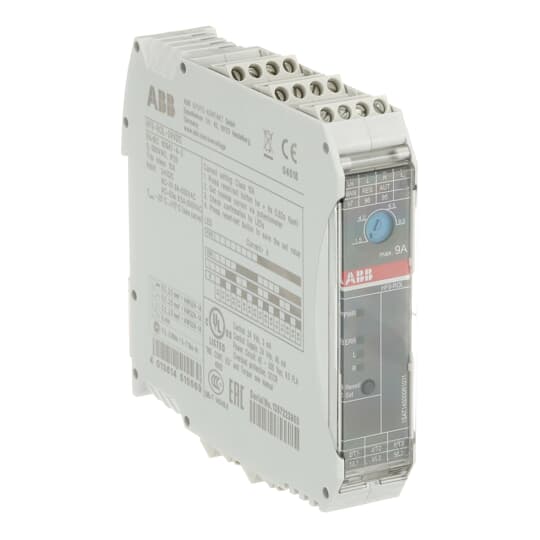

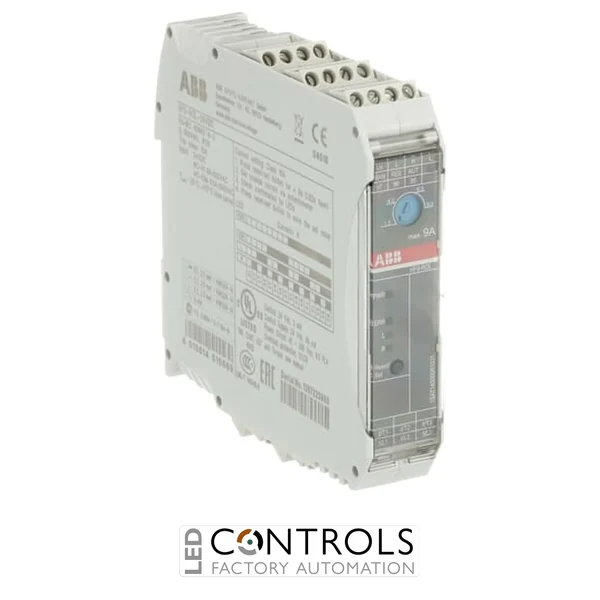

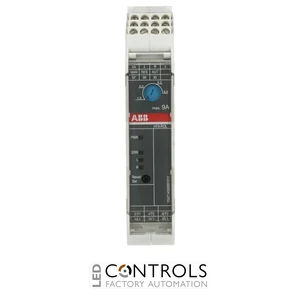

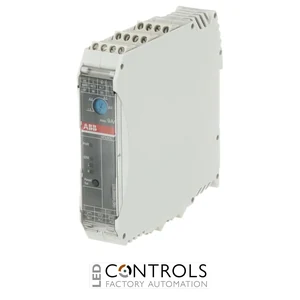

ABB 1SAT145000R1011 HF9-ROL-24VDC electronic compact reversing starter with integrated overload protection, 1.5-9 A setting range, 24 V DC control supply and 42-550 V AC main circuit voltage range for industrial motor control applications.
£217.81
The ABB 1SAT145000R1011 is a compact and reliable HF9-ROL-24VDC electronic compact starter designed for forward and reverse motor operation, switching of non-resistive loads and integrated electronic overload protection in industrial automation applications. As part of the ABB HF-ROL electronic starter range, it combines contactor and overload relay functionality into a single space-saving device to simplify installation and improve system reliability.
The integrated design of the HF9-ROL-24VDC reduces control panel wiring requirements while providing dependable motor switching and protection. By combining multiple motor control functions into one compact unit, it helps machine builders create smaller, more efficient and easier-to-maintain automation systems.
With a 24 V DC control supply, 9 A rated operational current and an adjustable overload protection range of 1.5 A to 9 A, the ABB 1SAT145000R1011 is suitable for motors up to approximately 3 kW at 500 V AC. Its narrow 22.5 mm housing makes it ideal for modern electrical control cabinets where space saving and dependable motor protection are required.
The ABB HF9-ROL-24VDC provides an integrated solution for reversing motor control by combining switching technology and electronic overload protection in one compact starter. This reduces component count, simplifies wiring and improves reliability in industrial control applications.
Designed for automation environments, the starter delivers dependable motor operation for machinery, production equipment and OEM systems requiring compact dimensions, accurate protection and efficient installation.
| Power | 3 kW |
|---|---|
| Current | 9 A |
| Voltage | 24 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | HF-ROL Electronic Compact Starters |
| Product ID | 1SAT145000R1011 |
| Product type | Electronic compact starter |
| Starter function | Reversing starter with overload protection |
| Rated current setting range | 1.5-9 A |
| Rated operation current at AC-3, 400 V | 9 A |
| Rated operational power at 400 V AC-3 | 3 kW |
| Control supply voltage | 24 V DC |
| Main circuit voltage range | 42-550 V AC |
| Rated operational voltage | 500 V AC |
| Maximum operational voltage | 550 V AC |
| Frequency | 50 / 60 Hz |
| Trip class | Class 10A |
| Protection rating | IP20 |
| Connection type | Screw terminals |
| Dimensions (H × W × D) | approx. 99 × 22.5 × 114.5 mm |
| Weight | approx. 0.228 kg |
| Country of origin | Germany |
| EAN | 4013614515569 |
| Customs tariff number | 85371098 |
The ABB 1SAT145000R1011 is an HF9-ROL-24VDC electronic compact starter used for forward and reverse motor operation with integrated overload protection.
The starter supports motors with a rated operational current of 9 A and an adjustable overload protection range from 1.5 A to 9 A.
The starter requires a 24 V DC control supply voltage.
Yes, the ABB HF9-ROL-24VDC includes integrated electronic overload protection with adjustable motor protection settings.
The starter is typically installed inside industrial control cabinets using DIN rail mounting for automation and machine control systems.
ABB HF-ROL electronic compact starters provide reliable reversing motor control, integrated protection and space-saving installation for modern industrial automation systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "ABB HF9-ROL-24VDC Electronic Compact Starter", "sku": "1SAT145000R1011", "mpn": "1SAT145000R1011", "brand": { "@type": "Brand", "name": "ABB" }, "category": "Electronic Motor Starters", "description": "ABB 1SAT145000R1011 HF9-ROL-24VDC electronic compact starter with reversing motor control and integrated electronic overload protection.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Control supply voltage", "value": "24 V DC" }, { "@type": "PropertyValue", "name": "Rated operational current", "value": "9 A" }, { "@type": "PropertyValue", "name": "Overload setting range", "value": "1.5 ... 9 A" }, { "@type": "PropertyValue", "name": "Motor power rating", "value": "Up to 3 kW" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the ABB 1SAT145000R1011 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB 1SAT145000R1011 is an HF9-ROL-24VDC electronic compact starter used for forward and reverse motor operation with integrated overload protection." } }, { "@type": "Question", "name": "What motor current does this starter support?", "acceptedAnswer": { "@type": "Answer", "text": "The starter supports motors with a rated operational current of 9 A and an adjustable overload protection range from 1.5 A to 9 A." } }, { "@type": "Question", "name": "What control voltage does the HF9-ROL-24VDC require?", "acceptedAnswer": { "@type": "Answer", "text": "The starter requires a 24 V DC control supply voltage." } }, { "@type": "Question", "name": "Does this starter include overload protection?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the ABB HF9-ROL-24VDC includes integrated electronic overload protection with adjustable motor protection settings." } } ] }
