Why Choose the ABB 1SAT146000R1011 HF9-ROLE-24VDC Electronic Compact Starter?

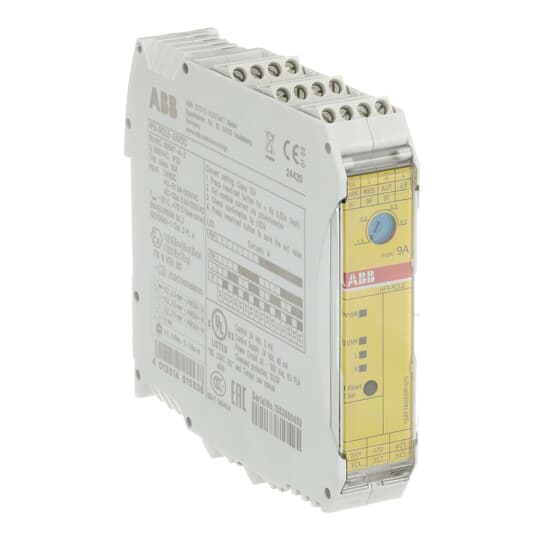

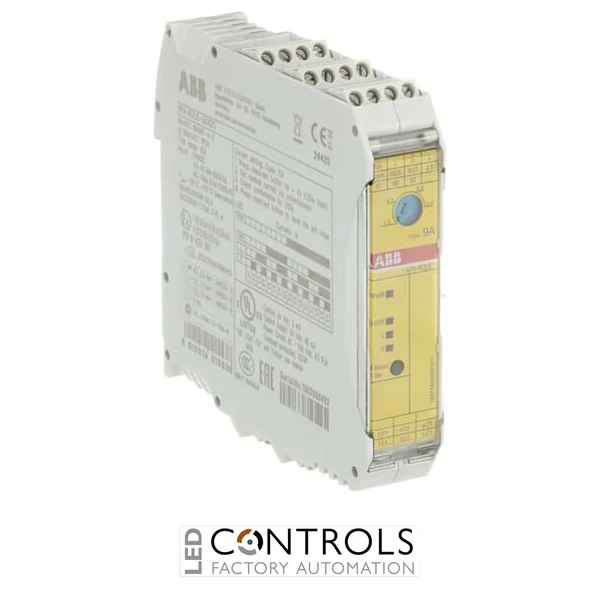

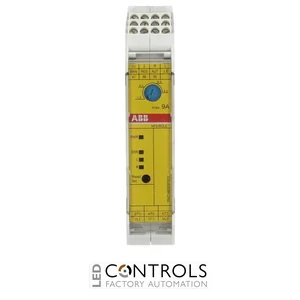

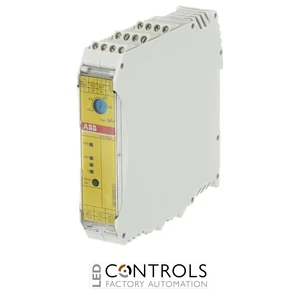

The ABB 1SAT146000R1011 is a compact and advanced HF9-ROLE-24VDC electronic compact starter designed for reversing motor operation, direct-on-line starting, integrated electronic overload protection and emergency stop functionality in industrial automation applications. As part of the ABB HF-ROLE safety starter range, it combines contactor and overload relay functions into a single space-saving device, helping reduce wiring effort and improve machine reliability.
The integrated hybrid starter design provides efficient motor control by combining solid-state electronics with mechanical switching technology. This allows machine builders and automation engineers to create compact control panels with fewer components, faster installation and improved operational safety.
With a 24 V DC control supply, 9 A rated operational current and an adjustable overload protection range of 1.5 A to 9 A, the ABB 1SAT146000R1011 is suitable for motors up to approximately 3 kW at 500 V AC. Its narrow 22.5 mm housing makes it ideal for modern industrial control cabinets where space efficiency and dependable motor protection are required.
Key Advantages
- Compact electronic reversing motor starter with integrated overload protection and emergency stop function.
- Combines contactor and overload relay functionality into one device.
- 9 A motor current rating suitable for industrial motor applications.
- 24 V DC control supply compatible with PLC and automation systems.
- Reduces wiring time and control cabinet space requirements.
- Certified safety functionality for demanding industrial applications.
Key Features
- ABB HF-ROLE electronic compact starter series.
- Model: HF9-ROLE-24VDC.
- Product ID: 1SAT146000R1011.
- Direct-on-line and reversing motor starter functionality.
- Rated operational current: 9 A.
- Control supply voltage: 24 V DC.
- Overload setting range: 1.5 ... 9 A.
- Integrated electronic overload protection.
- Emergency stop safety function.
- Safety Integrity Level 3 and Performance Level e certified.
- 22.5 mm compact housing design.
- DIN rail mounting capability.
Reliable Reversing Motor Control with Integrated Safety
The ABB HF9-ROLE-24VDC provides a complete motor control solution by integrating reversing operation, overload monitoring and emergency stop functionality into one compact starter. This integrated approach reduces the number of components required while improving installation efficiency and machine safety.
Designed for industrial automation environments, the starter supports reliable motor operation in machinery, production systems and OEM equipment where compact dimensions, functional safety and dependable protection are essential.
Typical Applications
- Industrial automation machinery.
- OEM machine control panels.
- Conveyor and material handling systems.
- Packaging and production equipment.
- Pumps, fans and processing machinery.
- Forward and reverse motor control applications.
