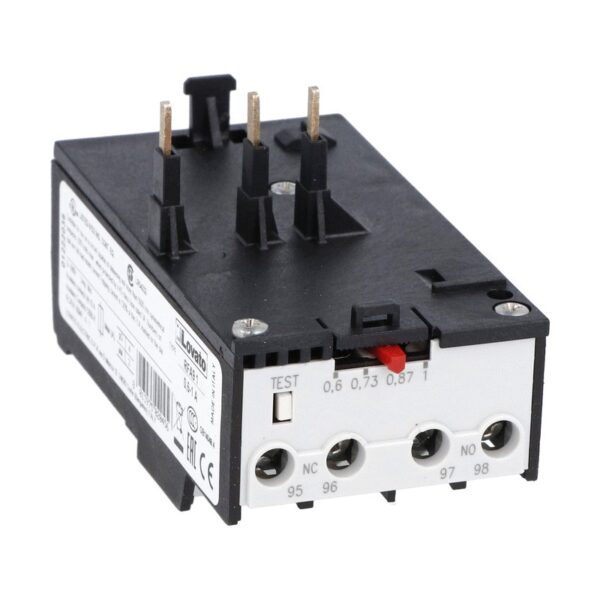

Why Choose the Lovato 11RFA9075 Thermal Overload Relay?
The Lovato 11RFA9075 is a compact and reliable thermal motor protection relay designed to protect three-phase motors against overload and phase failure conditions. As part of the Lovato 11RFA9 motor protection relay series, it combines thermal overload protection with phase failure and single-phase sensitivity for dependable motor protection in industrial control applications.
Designed for direct mounting on Lovato BG06, BG09 and BG12 mini-contactors, the 11RFA9075 enables a compact motor starter assembly without requiring separate relay mounting. Its Class 10A tripping characteristic, automatic reset function, test button and trip indicator provide practical protection and straightforward system monitoring.
With an adjustable operational current range of 0.45–0.75 A and a rated operational voltage of up to 690 V, the 11RFA9075 is suitable for protecting small three-phase motors. Its IP20 frontal protection and robust industrial construction support reliable operation in machinery, automation equipment and electrical control panels.
Key Advantages
- Reliable thermal overload protection for three-phase motors.
- 0.45–0.75 A adjustable operational current range for small motor applications.
- Integrated phase failure and single-phase sensitivity for enhanced motor protection.
- Automatic reset supports convenient system operation.
- Direct mounting on Lovato BG06, BG09 and BG12 mini-contactors.
- Integrated test button and trip indicator simplify testing and fault identification.
Key Features
- Lovato 11RFA9 motor protection relay series.
- 0.45–0.75 A operational current range.
- Three-pole thermal motor protection relay.
- Phase failure and single-phase sensitive operation.
- Automatic reset mode.
- Class 10A tripping characteristic.
- Integrated test button and trip indicator.
- IP20 frontal protection.
- Direct mounting on BG06, BG09 and BG12 mini-contactors.
Reliable Motor Protection for Industrial Machinery
Thermal overload relays such as the Lovato 11RFA9075 protect electric motors by responding to sustained overcurrent conditions that can cause excessive heating and equipment damage. Phase failure sensitivity provides additional protection when abnormal phase conditions occur in a three-phase motor circuit, helping reduce the risk of motor damage and unplanned downtime.
The 11RFA9075 is designed to integrate directly with compatible Lovato BG mini-contactors, creating a compact motor starter assembly. Its automatic reset function, Class 10A tripping characteristic, test button and trip indicator make it well suited to industrial machinery, automation equipment and control-panel applications requiring dependable motor protection.
Typical Applications
- Small three-phase motor protection.
- Industrial machinery and automation equipment.
- Compact motor starter assemblies.
- Pumps, fans and conveyor systems.
- Electrical control panels.
- OEM machinery using Lovato BG mini-contactors.
