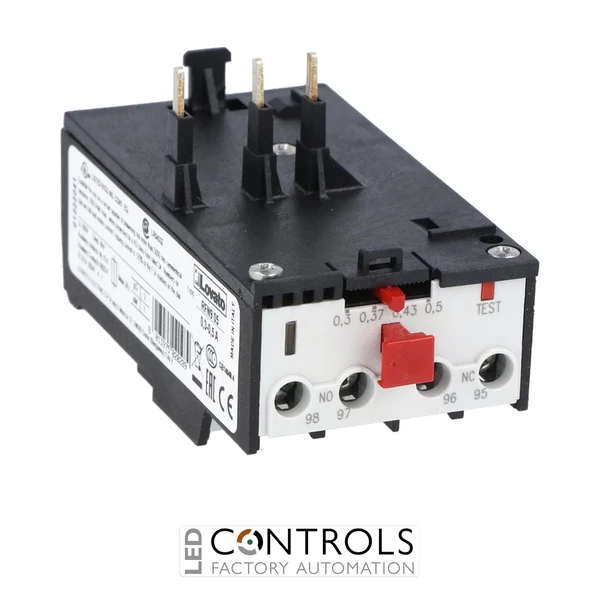

11RFN9033 - T/O RELAY RFN9 0.2-0.33A

11RFN9033 – T/O RELAY RFN9 0.2-0.33A

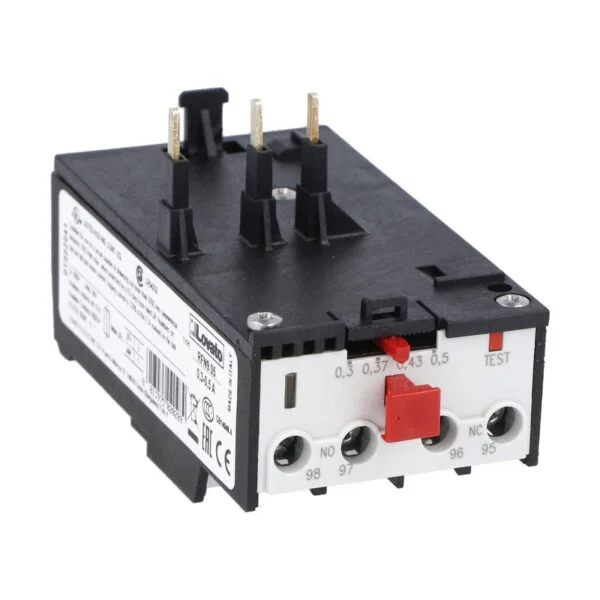

Lovato 11RFN9033 is a three-pole Class 10A thermal motor protection relay with a 0.2–0.33 A adjustable operational current range, manual reset, phase failure detection and direct mounting on BG06, BG09 and BG12 mini-contactors.

SKU: 11RFN9033Alt SKU: RFN9033MPN: 11RFN9033
Price
List Price £69.33 ex VAT
Your Price (ex VAT)
£69.33
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £69.33
Trade pricing is personalised to your account

Manufacturer Lead Time

£69.33

Why Choose the Lovato 11RFN9033 Thermal Overload Relay?

The Lovato 11RFN9033 is a compact and reliable thermal motor protection relay designed for three-phase motor circuits requiring adjustable overload protection. As part of the Lovato 11RFN9 motor protection relay series, it features a three-pole thermal release, manual resetting and direct mounting on compatible Lovato BG mini-contactors.

The 11RFN9033 combines a Class 10A tripping characteristic with phase failure detection, an integrated test button and a trip indicator. Its direct-mounting design simplifies the construction of compact motor starters, while screw-and-washer terminals provide secure electrical connections for industrial control-panel applications.

With an adjustable operational current range of 0.2–0.33 A and a rated operational voltage of 690 V, the 11RFN9033 is designed for low-current motor protection applications. The relay mounts directly on Lovato BG06, BG09 and BG12 mini-contactors and provides IP20 frontal protection.

Key Advantages

  • Compact thermal motor protection relay for three-phase applications.
  • 0.2–0.33 A adjustable operational current range for precise overload settings.
  • Class 10A tripping characteristic for motor overload protection.
  • Manual reset provides controlled resetting following a trip.
  • Integrated phase failure detection, test button and trip indicator.
  • Direct mounting on Lovato BG06, BG09 and BG12 mini-contactors.

Key Features

  • Lovato 11RFN9 motor protection relay series.
  • 0.2–0.33 A operational current range.
  • Three-pole thermal release.
  • 690 V rated operational voltage.
  • Manual reset mode.
  • Class 10A tripping characteristic.
  • Integrated phase failure detection.
  • Integrated test button and trip indicator.
  • Direct mounting on BG06, BG09 and BG12 mini-contactors.

Reliable Motor Protection for Industrial Machinery

Thermal motor protection relays such as the Lovato 11RFN9033 respond to sustained overcurrent conditions that can cause excessive motor heating. Its adjustable current setting allows the relay to be configured within the specified 0.2–0.33 A range, while the Class 10A tripping characteristic provides defined overload response behaviour.

The 11RFN9033 also incorporates phase failure detection, a test button and a trip indicator to support motor protection and maintenance. Direct mounting on compatible Lovato BG mini-contactors allows the relay and contactor to form a compact motor starter assembly for machinery and industrial control systems.

Typical Applications

  • Low-current three-phase motor protection.
  • Industrial machinery and automation equipment.
  • Compact motor starter assemblies.
  • Electrical control panels.
  • OEM machinery and production equipment.
  • Motor circuits using Lovato BG06, BG09 or BG12 mini-contactors.

Technical Specifications

Tick the specs you need, then view products that match.

Terminal Type Screw
Monitoring Function Temperature / thermistor
Monitored Supply Single-phase
Reset Type Manual
Load Voltage 690 V
Manufacturer Lovato Electric
Series 11RFN9
Model 11RFN9033
Product type Thermal motor protection relay
Number of poles 3
Type of release Thermal
Operational current 0.2–0.33 A
Rated operational voltage 690 V
Rated insulation voltage Ui 690 V
Rated impulse withstand voltage Uimp 8 kV
Operational frequency 0–400 Hz
Tripping class 10A
Reset mode Manual
Phase failure detection Yes
Test button Yes
Trip indicator Yes
Protection rating IP20 frontal
Overvoltage category III
Pollution degree 3
gG protection fuse 1 A
aM protection fuse 0.5 A
RK5 protection fuse 1 A
Terminal type Screw and washer
Terminal screw M4
Terminal width 9.8 mm
Minimum terminal tightening torque 2.3 Nm
Operating temperature -20 to 55 °C
Storage temperature -55 to 70 °C
Compensation temperature -15 to 55 °C
Maximum altitude 3000 m
Normal operating position Vertical plane
Permitted mounting position ±30°
Mounting type Direct mounting on BG06, BG09 and BG12 mini-contactors
IP Rating IP20

Frequently Asked Questions

What is the Lovato 11RFN9033 used for?

The Lovato 11RFN9033 is a thermal motor protection relay designed for overload protection in compatible three-phase motor circuits.

What current range does the Lovato 11RFN9033 support?

The relay has an adjustable operational current range of 0.2–0.33 A.

Does the Lovato 11RFN9033 reset automatically?

No. The 11RFN9033 uses a manual reset following a trip.

Does the Lovato 11RFN9033 provide phase failure detection?

Yes. The 11RFN9033 includes phase failure detection as part of its motor protection functionality.

Which contactors can the Lovato 11RFN9033 be mounted on?

The relay is designed for direct mounting on Lovato BG06, BG09 and BG12 mini-contactors.

Trusted Motor Protection from Lovato Electric

Lovato Electric 11RFN9 thermal motor protection relays provide adjustable overload protection and direct integration with compatible BG mini-contactors for compact industrial motor control applications.
