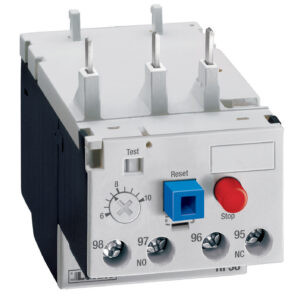

Lovato 11RFN915 three-pole thermal motor protection relay with a 9–15 A adjustable overload range, manual reset and direct mounting for BG06, BG09 and BG12 mini-contactors.
£69.33
The Lovato 11RFN915 is a compact and reliable thermal motor protection relay designed to provide overload protection for three-phase motors in industrial control and automation applications. As part of the Lovato RFN9 series motor protection relays, it is engineered for dependable motor protection with phase failure and single-phase sensitive protection, while providing direct integration with compatible Lovato BG series mini-contactors.
This relay provides accurate thermal overload protection while helping safeguard motors against excessive current conditions. Its manual reset operation, integrated test button and trip indicator make it suitable for industrial motor starters, machine builders, OEM equipment and electrical control panels.
With an adjustable operational current range of 9–15 A and a three-pole three-phase configuration, the 11RFN915 is suitable for protecting industrial motors in a wide range of applications. The relay is designed for direct mounting on Lovato BG06, BG09 and BG12 mini-contactors for compact motor starter assemblies.
Thermal overload relays such as the Lovato 11RFN915 monitor motor current and disconnect the control circuit when overload conditions occur. This helps prevent motor overheating, reduce equipment downtime and improve the reliability of industrial electrical systems.
The RFN9 series is designed for use with Lovato contactors and motor starters, providing a compact solution for machine builders, panel manufacturers and automation engineers requiring dependable motor protection with simple installation.
| Manufacturer | Lovato Electric |
|---|---|
| Series | RFN9 |
| Model | 11RFN915 |
| Product type | Thermal motor protection relay |
| Number of poles | 3 |
| Operational current range | 9–15 A |
| Type of release | Thermal |
| Reset mode | Manual |
| Phase failure detection | Yes |
| Single-phase sensitive | Yes |
| Tripping class | 10A |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 8 kV |
| Rated operational voltage | 690 V |
| Operational frequency | 0–400 Hz |
| Auxiliary contacts | 1 NO + 1 NC |
| Protection rating | IP20 |
| Test button | Yes |
| Trip indicator | Yes |
| Mounting type | Direct mounting on BG06, BG09 and BG12 mini-contactors |
| Weight | approx. 118 g |
The Lovato 11RFN915 is a thermal overload relay used to protect three-phase motors against overload conditions, phase failure and single-phase operation in industrial applications.
The relay supports an adjustable operational current range of 9–15 A.
The 11RFN915 uses a manual reset function to allow controlled recovery after an overload trip.
The relay is designed for direct mounting on compatible Lovato BG06, BG09 and BG12 mini-contactors.
The relay includes thermal overload protection with phase failure and single-phase sensitive detection for reliable three-phase motor protection.
Lovato RFN9 series motor protection relays are used by electrical engineers and machine builders to provide reliable overload protection and efficient motor control solutions in industrial applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11RFN915 Thermal Overload Relay 9–15 A", "sku": "11RFN915", "mpn": "11RFN915", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Thermal Overload Relays", "description": "Lovato 11RFN915 three-pole thermal motor protection relay with a 9–15 A adjustable overload range, manual reset and direct mounting for BG06, BG09 and BG12 mini-contactors.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Operational current range", "value": "9–15 A" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Reset mode", "value": "Manual" }, { "@type": "PropertyValue", "name": "Tripping class", "value": "10A" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11RFN915 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11RFN915 is a thermal overload relay used to protect three-phase motors against overload conditions, phase failure and single-phase operation in industrial applications." } }, { "@type": "Question", "name": "What current range does the Lovato 11RFN915 support?", "acceptedAnswer": { "@type": "Answer", "text": "The relay supports an adjustable operational current range of 9–15 A." } }, { "@type": "Question", "name": "How is the Lovato 11RFN915 reset?", "acceptedAnswer": { "@type": "Answer", "text": "The 11RFN915 uses a manual reset function to allow controlled recovery after an overload trip." } }, { "@type": "Question", "name": "Which contactors can the Lovato 11RFN915 be mounted with?", "acceptedAnswer": { "@type": "Answer", "text": "The relay is designed for direct mounting on compatible Lovato BG06, BG09 and BG12 mini-contactors." } }, { "@type": "Question", "name": "What protection features are included?", "acceptedAnswer": { "@type": "Answer", "text": "The relay includes thermal overload protection with phase failure and single-phase sensitive detection for reliable three-phase motor protection." } } ] }
