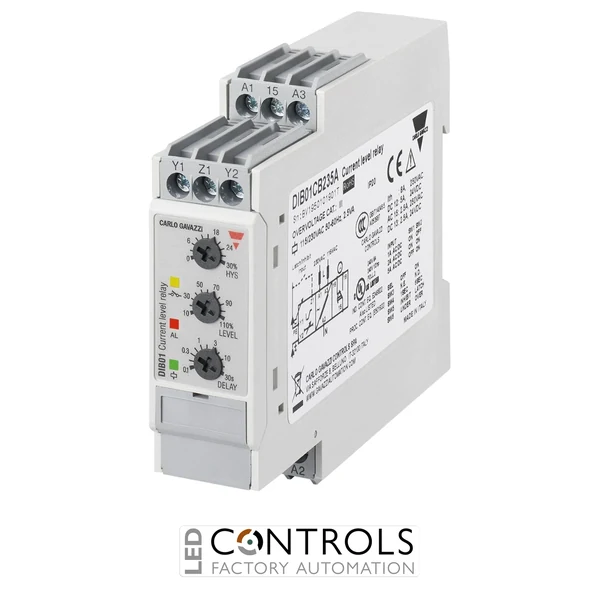

DIB01CB23500MA – 115-230V CURR. LEV. RLY OVER/UNDER 10-500mA AC/DC

Q: What current range does this relay monitor?

The relay monitors AC/DC current from 10 mA to 500 mA.

Q: What supply voltage does the DIB01CB23500MA require?

The relay operates from a 115/230 V AC supply.

Q: What type of output does this monitoring relay provide?

The DIB01CB23500MA provides an SPDT relay output for switching alarms and control circuits.

Q: How is the DIB01CB23500MA installed?

The relay is designed for installation on a DIN rail inside industrial control panels.

Carlo Gavazzi DIB01CB23500MA AC/DC current monitoring relay with 10-500 mA input range, SPDT relay output and DIN rail mounting for industrial control systems.

SKU: DIB01CB23500MAMPN: DIB01CB23500MA

List Price £140.02 ex VAT

Your Price (ex VAT)

£140.02

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £140.02

Trade pricing is personalised to your account

Manufacturer Lead Time

£140.02

Why Choose the Carlo Gavazzi DIB01CB23500MA Current Monitoring Relay?

The Carlo Gavazzi DIB01CB23500MA is a precise AC/DC current monitoring relay designed for detecting overcurrent and undercurrent conditions in industrial automation and electrical control systems. Part of the Carlo Gavazzi DIB01 monitoring relay series, it provides reliable current supervision with adjustable monitoring parameters and a flexible relay output for alarm and control applications.

This single-phase monitoring relay supports a selectable 10–500 mA AC/DC current input range and provides an SPDT relay output for connection to PLC inputs, alarms and industrial control circuits. Its compact 22.5 mm DIN rail housing allows efficient installation inside electrical control panels.

With a 115/230 V AC supply voltage, adjustable hysteresis, adjustable delay function and selectable overcurrent or undercurrent monitoring, the DIB01CB23500MA provides dependable protection and fault detection for machinery, electrical loads and industrial processes.

Key Advantages

AC/DC current monitoring relay for industrial protection and automation applications.
10–500 mA AC/DC measuring range for flexible current monitoring.
Overcurrent and undercurrent monitoring functions.
SPDT relay output for versatile control and alarm switching.
115/230 V AC supply voltage for industrial installations.
Compact 22.5 mm DIN rail mounting design.

Key Features

Carlo Gavazzi DIB01 monitoring relay series.
Single-phase AC/DC current monitoring.
Adjustable overcurrent and undercurrent detection.
Selectable 10–500 mA current input range.
One SPDT relay output.
Adjustable delay-on-alarm function.
Adjustable hysteresis.
DIN rail mounting with screw terminal connections.

Reliable Current Monitoring for Industrial Systems

Current monitoring relays such as the Carlo Gavazzi DIB01CB23500MA help protect industrial equipment by continuously supervising current levels and detecting abnormal operating conditions. This allows control systems to respond quickly to overloads, reduced load conditions or equipment faults.

The DIB01 series combines accurate current measurement with adjustable settings, relay output switching and compact DIN rail installation, making it suitable for a wide range of industrial automation and electrical monitoring applications.

Typical Applications

Industrial automation control panels.
Motor current monitoring systems.
Pump and fan protection.
Machine fault detection systems.
Electrical load supervision.
Industrial process control equipment.

Technical Specifications

Tick the specs you need, then view products that match.

Terminal Type	Screw
Monitored Supply	AC/DC
Mounting Type	DIN rail
Monitoring Function	Current
Voltage	230 V
Manufacturer	Carlo Gavazzi
Series	DIB01 Monitoring Relays
Model	DIB01CB23500MA
Product type	Current monitoring relay
Monitoring parameter	AC/DC current
Input current range	10–500 mA AC/DC
Supply voltage	115/230 V AC
Monitoring functions	Overcurrent, undercurrent, over or undercurrent
Output type	SPDT relay
Relay contact rating	8 A at 250 V AC
Delay function	Delay on alarm
Mounting type	Industrial DIN rail mounting
Connection type	Screw terminals
Protection rating	IP20
Dimensions (W × H × D)	approx. 22.5 × 80 × 99.5 mm
Operating temperature	-20 to +60 °C
Coil / Supply Voltage	115 V AC, 230 V AC
IP Rating	IP20

Frequently Asked Questions

What is the Carlo Gavazzi DIB01CB23500MA used for?

The DIB01CB23500MA is a current monitoring relay used to detect overcurrent and undercurrent conditions in industrial electrical systems.

What current range does this relay monitor?

The relay monitors AC/DC current from 10 mA to 500 mA.

What supply voltage does the DIB01CB23500MA require?

The relay operates from a 115/230 V AC supply.

What type of output does this monitoring relay provide?

The DIB01CB23500MA provides an SPDT relay output for switching alarms and control circuits.

How is the DIB01CB23500MA installed?

The relay is designed for installation on a DIN rail inside industrial control panels.

Trusted for Industrial Monitoring Applications

Carlo Gavazzi DIB series monitoring relays provide reliable electrical supervision solutions for automation engineers requiring accurate current measurement, fault detection and dependable control system integration.

Terminal Type	Screw
Monitored Supply	AC/DC
Mounting Type	DIN rail
Monitoring Function	Current
Voltage	230 V
Manufacturer	Carlo Gavazzi
Series	DIB01 Monitoring Relays
Model	DIB01CB23500MA
Product type	Current monitoring relay
Monitoring parameter	AC/DC current
Input current range	10–500 mA AC/DC
Supply voltage	115/230 V AC
Monitoring functions	Overcurrent, undercurrent, over or undercurrent
Output type	SPDT relay
Relay contact rating	8 A at 250 V AC
Delay function	Delay on alarm
Mounting type	Industrial DIN rail mounting
Connection type	Screw terminals
Protection rating	IP20
Dimensions (W × H × D)	approx. 22.5 × 80 × 99.5 mm
Operating temperature	-20 to +60 °C
Coil / Supply Voltage	115 V AC, 230 V AC
IP Rating	IP20
