Why Choose the Lovato PMV80NA600 Voltage Monitoring Relay?

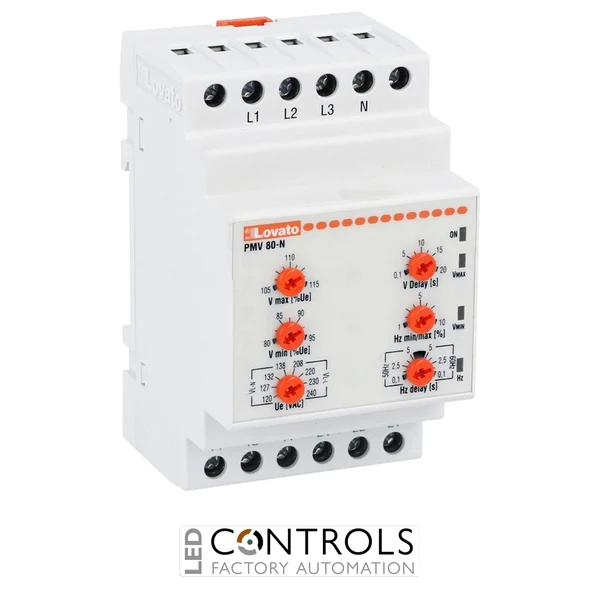

The Lovato PMV80NA600 is a multifunction three-phase voltage monitoring relay designed to protect electrical installations against abnormal supply conditions. Suitable for 480 to 600 V AC 50/60 Hz systems with or without neutral, it continuously monitors voltage, frequency and phase conditions to help prevent costly equipment damage and unexpected downtime.
As part of the trusted Lovato PMV80N series, this relay combines under and overvoltage protection, under and overfrequency monitoring, phase loss detection, neutral loss detection and incorrect phase sequence monitoring within a compact DIN rail mounted unit. Adjustable settings allow engineers to tailor protection levels for demanding industrial environments.
With dual SPDT relay outputs, automatic reset functionality and user-friendly potentiometer adjustment, the PMV80NA600 offers dependable protection for motors, pumps, compressors, switchboards, generators and industrial power distribution systems where reliable three-phase monitoring is essential.
Key Advantages
- Designed for 480 to 600 V AC three-phase systems.
- Monitors minimum and maximum voltage.
- Detects minimum and maximum frequency.
- Protects against phase loss, neutral loss and incorrect phase sequence.
- Dual SPDT relay outputs for flexible control integration.
- Compact 35 mm DIN rail mounting for industrial control panels.
Key Features
- Lovato PMV80N series voltage monitoring relay.
- Suitable for three-phase systems with or without neutral.
- 480 to 600 V AC operating voltage.
- Rated frequency 50/60 Hz.
- Adjustable voltage thresholds from 80 to 115% of nominal voltage.
- Adjustable frequency thresholds from 1 to 10%.
- Adjustable trip delay from 0.1 to 20 seconds.
- 2 changeover (SPDT) relay outputs.
- Automatic reset operation.
- LED indication for power and fault status.
Comprehensive Three-Phase Power Protection
The PMV80NA600 continuously analyses the incoming supply to identify abnormal operating conditions before they can affect connected equipment. Voltage fluctuations, incorrect phase rotation, missing phases or unstable frequency can all cause premature failure of motors, drives and industrial machinery. This relay provides reliable protection by disconnecting equipment whenever configured limits are exceeded.
Its compact modular design makes installation straightforward in new control panels or retrofit projects, while adjustable settings provide flexibility across a wide range of industrial applications.
Typical Applications
- Motor control centres.
- Industrial control panels.
- Pump and fan protection.
- Compressors.
- Generator monitoring.
- Production machinery.
- HVAC systems.
- Power distribution equipment.
