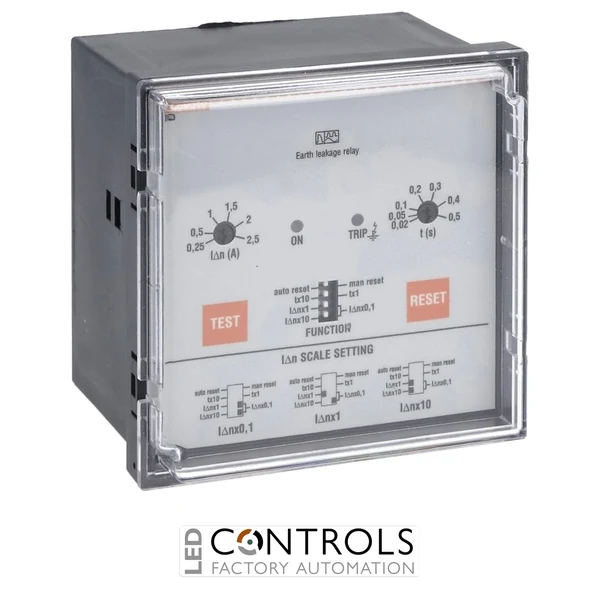

R1D415 – EARTH LEAKAGE RELAY R1D 240-41 5VAC FLUS

Engineered for dependable residual current protection, the Lovato R1D415 Earth leakage relay combines Type A sensitivity with robust flush mounting for neat panels.

SKU: R1D415MPN: R1D415

List Price £351.94 ex VAT

Your Price (ex VAT)

£351.94

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £351.94

Trade pricing is personalised to your account

Manufacturer Lead Time

£351.94

Lovato R1D415 Earth Leakage Relay - Flush Mount Residual Current Protection Relay 110-415VAC

The Lovato R1D415 is a flush-mounted earth leakage relay designed for residual current monitoring and electrical protection applications. Featuring Type A residual current detection, one adjustable operating threshold, and compatibility with 110-125VAC/DC, 220-240VAC, and 380-415VAC supply systems, this relay provides reliable earth fault monitoring for industrial and commercial electrical installations. The unit requires an external toroidal current transformer and is designed for panel mounting with a transparent protective cover.

Product Overview

The Lovato R1D415 earth leakage relay is part of the Lovato R1D series of residual current monitoring devices. It is designed for flush mounting applications and works with an external toroidal transformer to measure leakage currents. The relay provides a single adjustable tripping threshold, SPDT changeover output, LED status indication, and compliance with IEC/EN 60947-2 standards.

Key Features

Manufacturer: Lovato Electric
Model / Part Number: R1D415
Product Type: Earth leakage relay / residual current monitoring relay
Residual Current Characteristic: Type A
Supply Voltage: 110-125VAC/DC, 220-240VAC, 380-415VAC
Flush panel mounting design
External toroidal transformer connection
Single adjustable operating threshold
SPDT changeover relay output
Green LED auxiliary voltage indication
Red LED trip indication
Transparent protective front cover
IEC/EN 60947-2 compliant

Applications

The Lovato R1D415 is suitable for installations requiring dependable earth leakage monitoring and residual current protection, including:

Industrial control panels
Electrical distribution boards
Motor control centres
Automation systems
Machine protection applications
Commercial electrical installations

Why Choose Lovato R1D415?

The Lovato R1D415 provides a reliable flush-mounted solution for residual current protection where external toroidal transformers are preferred. Its Type A detection, adjustable trip settings, SPDT output contact, and broad supply voltage compatibility make it suitable for monitoring earth leakage faults and improving electrical system safety.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type	Panel
Time Delay	Fixed
Switching Current (A)	5 A
Monitoring Function	Earth leakage / residual current
Specification Value Brand	Lovato Electric
Part Number	R1D415
Product Type	Earth leakage relay
Residual Current Type	Type A
Mounting Type	Flush mounting
Toroidal Transformer	External
Supply Voltage	110-125VAC/DC; 220-240VAC; 380-415VAC
Number of Operating Thresholds	1
Adjustable Tripping Current	0.025-0.25A / 0.25-2.5A / 2.5-25A
External Multiplier Range	Up to 250A with compatible multiplier
Trip Delay	0.02-0.5s
Output Contact	1 x SPDT changeover contact
Contact Rating	5A at 250VAC
Frequency	50-60Hz
Power Consumption	5.5VA
Protection Rating	IP40 front / IP20 terminals
Operating Temperature	-10°C to +60°C
Dimensions	96 x 96 x 75mm
Weight	276g
Standards	IEC/EN 60947-2
HS Code	85365080
Coil / Supply Voltage	110 V AC, 110 V DC, 115 V AC, 120 V AC, 125 V DC, 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC
IP Rating	IP20, IP40

Frequently Asked Questions

What is the Lovato R1D415 used for?

The Lovato R1D415 is used to monitor earth leakage currents and provide residual current protection in industrial and commercial electrical systems.

Does the Lovato R1D415 include a toroidal transformer?

No. The relay requires an external toroidal current transformer for residual current measurement.

What supply voltage does the Lovato R1D415 support?

The relay supports 110-125VAC/DC, 220-240VAC, and 380-415VAC supply voltages.

What type of residual current detection does the Lovato R1D415 provide?

The Lovato R1D415 provides Type A residual current detection suitable for AC and pulsating DC fault currents.

Mounting Type	Panel
Time Delay	Fixed
Switching Current (A)	5 A
Monitoring Function	Earth leakage / residual current
Specification Value Brand	Lovato Electric
Part Number	R1D415
Product Type	Earth leakage relay
Residual Current Type	Type A
Mounting Type	Flush mounting
Toroidal Transformer	External
Supply Voltage	110-125VAC/DC; 220-240VAC; 380-415VAC
Number of Operating Thresholds	1
Adjustable Tripping Current	0.025-0.25A / 0.25-2.5A / 2.5-25A
External Multiplier Range	Up to 250A with compatible multiplier
Trip Delay	0.02-0.5s
Output Contact	1 x SPDT changeover contact
Contact Rating	5A at 250VAC
Frequency	50-60Hz
Power Consumption	5.5VA
Protection Rating	IP40 front / IP20 terminals
Operating Temperature	-10°C to +60°C
Dimensions	96 x 96 x 75mm
Weight	276g
Standards	IEC/EN 60947-2
HS Code	85365080
Coil / Supply Voltage	110 V AC, 110 V DC, 115 V AC, 120 V AC, 125 V DC, 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC
IP Rating	IP20, IP40
