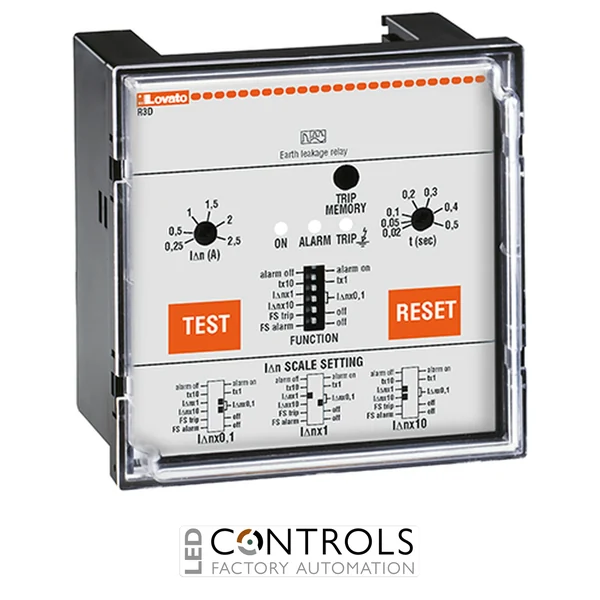

R3D415 - EARTH LEAKAGE RELAY R3D 110-24 0-415VAC

R3D415 – EARTH LEAKAGE RELAY R3D 110-24 0-415VAC

Engineered for dependable protection, the Lovato R3D415 Earth Leakage Relay (SKU R3D415) delivers precise monitoring with two operating thresholds.

SKU: R3D415MPN: R3D415
Price
List Price £562.34 ex VAT
Your Price (ex VAT)
£562.34
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £562.34
Trade pricing is personalised to your account

Manufacturer Lead Time

£562.34

Lovato R3D415 Earth Leakage Relay - Dual Threshold Residual Current Protection Relay 110-415VAC

The Lovato R3D415 is a flush-mounted earth leakage relay designed for advanced residual current monitoring and electrical protection applications. Featuring Type A residual current detection, two adjustable operating thresholds, fail-safe operation, flag trip indication, and compatibility with 110-125VAC, 220-240VAC, and 380-415VAC supply systems, this relay provides reliable earth fault protection for industrial and commercial electrical installations. The unit requires an external toroidal current transformer for residual current measurement.

Product Overview

The Lovato R3D415 earth leakage relay is part of the Lovato R3D series of residual current monitoring devices. Designed for flush panel mounting with a transparent protective cover, it provides two independent operating thresholds for improved protection coordination. The relay supports external toroidal transformers, configurable fail-safe operation, test functionality, LED status indication, and mechanical trip memory through a flag indicator.

Key Features

  • Manufacturer: Lovato Electric
  • Model / Part Number: R3D415
  • Product Type: Earth leakage relay / residual current monitoring relay
  • Residual Current Characteristic: Type A
  • Supply Voltage: 110-125VAC, 220-240VAC, 380-415VAC
  • Flush panel mounting design
  • External toroidal transformer connection
  • Two adjustable operating thresholds
  • Fail-safe relay operation
  • Trip memory flag indicator
  • Two SPDT relay outputs
  • Front TEST button
  • LED indication for power, trip, and alarm status
  • IEC/EN 60947-2 compliant

Applications

The Lovato R3D415 is suitable for installations requiring advanced earth leakage monitoring and selective residual current protection, including:

  • Industrial control panels
  • Electrical distribution systems
  • Motor control centres
  • Automation equipment
  • Machine protection systems
  • Commercial electrical installations

Why Choose Lovato R3D415?

The Lovato R3D415 provides enhanced residual current protection through dual adjustable thresholds, fail-safe operation, and external CT compatibility. Its flush-mounted design, Type A detection, trip memory indication, and configurable relay outputs make it ideal for applications requiring reliable earth leakage monitoring and coordinated electrical protection.

Technical Specifications

Voltage 415 V
Specification Value Brand Lovato Electric
Part Number R3D415
Product Type Earth leakage relay
Residual Current Type Type A
Mounting Type Flush mounting
Toroidal Transformer External
Supply Voltage 110-125VAC / 220-240VAC / 380-415VAC
Operating Thresholds 2 adjustable thresholds
Tripping Current Range 0.025-0.25A / 0.25-2.5A / 2.5-25A
External Multiplier Range 25-250A
Prealarm Threshold 70% of IΔn fixed
Trip Delay 0.02-0.5s / 0.2-5s
Output Contacts 2 x SPDT changeover contacts
Contact Rating 5A at 250VAC
Frequency 50-60Hz
Power Consumption 4.5VA
Protection Rating IP40 front / IP20 terminals
Operating Temperature -10°C to +60°C
Dimensions 96 x 96 x 75mm
Weight 470g
Standards IEC/EN 60947-2
HS Code 85365080
Coil / Supply Voltage 110 V AC, 115 V AC, 120 V AC, 220 V AC, 230 V AC, 240 V AC, 380 V AC, 400 V AC, 415 V AC
Contacts 1 C/O
IP Rating IP20, IP40

Frequently Asked Questions

What is the Lovato R3D415 used for?

The Lovato R3D415 is used to monitor earth leakage currents and provide residual current protection in industrial and commercial electrical systems.

Does the Lovato R3D415 include a toroidal transformer?

No. The relay requires an external toroidal current transformer for residual current measurement.

What supply voltage does the Lovato R3D415 support?

The relay supports 110-125VAC, 220-240VAC, and 380-415VAC supply voltages.

How many operating thresholds does the Lovato R3D415 have?

The Lovato R3D415 features two adjustable operating thresholds for improved protection coordination.
