Why Choose the Lovato RFN380650 Motor Protection Relay?

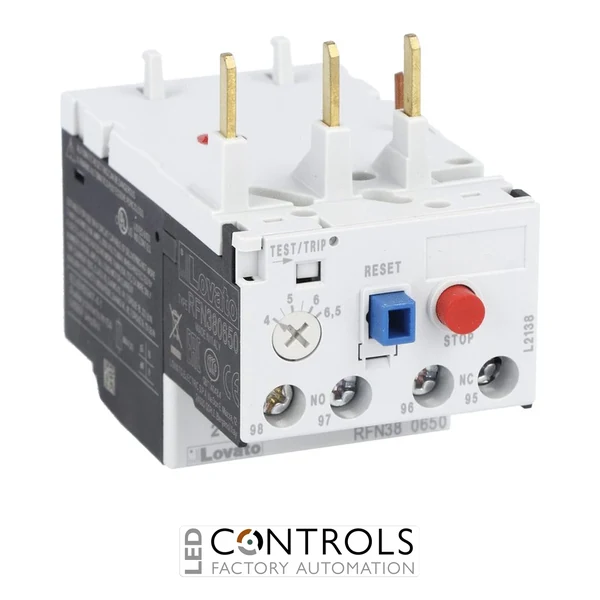

The Lovato RFN380650 is a three-pole thermal motor protection relay designed to protect three-phase motors against overload conditions in industrial motor control applications. As part of the Lovato RFN38 motor protection relay range, it provides an adjustable thermal release and is designed for direct mounting on compatible Lovato BF contactors.
This relay has a class 10A tripping characteristic and provides an adjustable operating current range that allows the protection setting to be matched to the motor's rated current. The RFN380650 is a non-phase-failure and non-single-phase-sensitive version, with manual or automatic resetting for flexible integration into motor starter circuits.
With an adjustable operating current range of 4–6.5 A, the RFN380650 is designed for direct mounting on Lovato BF09–BF38 contactors. Integrated test and trip indication functions, together with 1NO + 1NC auxiliary contacts, support straightforward operation, control and fault signalling.
Key Advantages
- Reliable thermal motor overload protection for industrial applications.
- 4–6.5 A adjustable operating current range for matching protection to the motor.
- Three-pole design for three-phase motor circuits.
- Class 10A tripping characteristic for motor overload protection.
- Manual or automatic resetting for flexible motor starter configurations.
- Direct mounting on Lovato BF09–BF38 contactors simplifies installation.
Key Features
- Lovato RFN38 motor protection relay series.
- 4–6.5 A adjustable operating current.
- Three-pole thermal release.
- Class 10A tripping characteristic.
- Manual or automatic reset mode.
- Non-phase-failure and non-single-phase-sensitive design.
- Integrated test button and trip indicator.
- 1NO + 1NC auxiliary contacts for control and signalling.
- IP20 frontal protection rating.
- Direct mounting on BF09–BF38 contactors.
Reliable Motor Protection for Industrial Systems
Thermal motor protection relays such as the Lovato RFN380650 respond to sustained overcurrent conditions that can cause excessive motor heating and premature equipment failure. Selecting a relay whose adjustment range includes the motor's nameplate rated current enables the overload protection setting to be matched to the motor.
The RFN38 range is designed for industrial motor control applications and can be mounted directly on compatible Lovato BF contactors. The RFN380650 combines adjustable thermal overload protection, auxiliary signalling contacts and manual or automatic resetting in a compact motor starter component.
Typical Applications
- Industrial motor control panels.
- Pumps, fans and ventilation equipment.
- Conveyor and material handling systems.
- Production and processing machinery.
- Industrial automation equipment.
- OEM motor starter and control assemblies.
