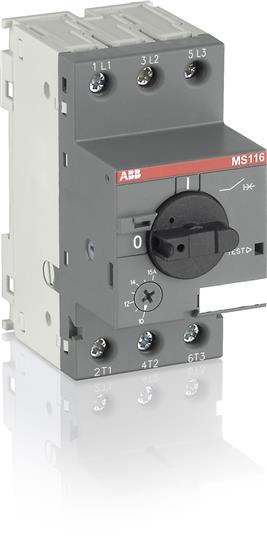

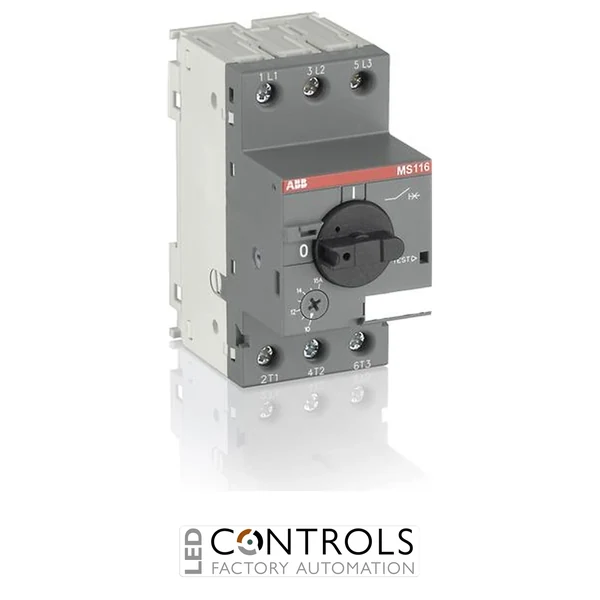

ABB 1SAM250000R1005 MS116-1.0 is a three-pole manual motor starter with an adjustable 0.63–1.00 A thermal range, Class 10A tripping and integrated overload, short-circuit and phase-failure protection.
£77.06
The ABB 1SAM250000R1005, also designated the MS116-1.0, is a compact and reliable manual motor starter and motor protection circuit breaker designed for switching and protecting three-phase motors. It combines manual control, disconnection, thermal overload protection and electromagnetic short-circuit protection within a single 45 mm-wide device.
The adjustable thermal release covers motor currents from 0.63 to 1.00 A, allowing the protection setting to be matched precisely to the motor’s rated current. Phase-failure sensitivity and a Class 10A tripping characteristic provide dependable protection against sustained overloads and abnormal three-phase operating conditions.
With a rated motor power of 0.25 kW at 400 V AC and a rated service short-circuit breaking capacity of 50 kA at 400 V AC, the MS116-1.0 is suitable for small industrial motors used in pumps, fans, conveyors and machinery. Its rotary handle provides clear manual operation, while the compact DIN rail-mounted format simplifies control-panel installation.
Manual motor starters such as the ABB MS116 protect motors using thermal and electromagnetic release mechanisms. The adjustable thermal release responds to sustained overloads, while the electromagnetic release rapidly disconnects the circuit when a high short-circuit current occurs.
The MS116-1.0 can be used independently for local motor switching or combined with a compatible contactor to create a remotely controlled motor starter. Auxiliary contacts, signalling contacts, voltage releases, busbars and protective enclosures can also be added to meet different control and installation requirements.
| Manufacturer | ABB |
|---|---|
| Series | MS116 |
| Model | MS116-1.0 |
| Order code | 1SAM250000R1005 |
| Product type | Manual motor starter / motor protection circuit breaker |
| Number of poles | 3 |
| Thermal current adjustment range | 0.63–1.00 A |
| Trip class | 10A |
| Rated instantaneous short-circuit current setting | 11.5 A |
| Rated motor power | 0.25 kW at 400 V AC |
| Rated operational voltage | Up to 690 V AC |
| Rated service short-circuit breaking capacity Ics | 50 kA at 400 V AC |
| Rated ultimate short-circuit breaking capacity Icu | 100 kA at 400 V AC |
| Protection functions | Thermal overload, electromagnetic short circuit and phase failure |
| Operating control | Rotary handle |
| Terminal type | Screw terminals |
| Protection rating | IP20 |
| Mounting type | 35 mm DIN rail or screw mounting |
| Dimensions (H × W × D) | 90 × 45 × 85.6 mm |
| Weight | 0.225 kg |
The MS116-1.0 manually switches and protects three-phase motors against overloads, short circuits and phase failure.
The thermal protection setting can be adjusted between 0.63 and 1.00 A to match the motor’s rated current.
The ABB MS116-1.0 is rated for a motor power of 0.25 kW at 400 V AC.
The MS116-1.0 has a rated service short-circuit breaking capacity of 50 kA at 400 V AC and an ultimate breaking capacity of 100 kA at 400 V AC.
The device can be mounted on a 35 mm DIN rail or secured with screws inside a suitable electrical panel or protective enclosure.
ABB MS116 manual motor starters provide compact and dependable switching, isolation and motor protection for industrial machinery, control panels and individual motor applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "ABB 1SAM250000R1005 MS116-1.0 Manual Motor Starter 0.63–1.00 A", "sku": "1SAM250000R1005", "mpn": "1SAM250000R1005", "brand": { "@type": "Brand", "name": "ABB" }, "category": "Manual Motor Starters", "description": "ABB 1SAM250000R1005 MS116-1.0 is a three-pole manual motor starter with an adjustable 0.63–1.00 A thermal range, Class 10A tripping and integrated overload, short-circuit and phase-failure protection.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Current adjustment range", "value": "0.63–1.00 A" }, { "@type": "PropertyValue", "name": "Rated motor power", "value": "0.25 kW at 400 V AC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Trip class", "value": "10A" }, { "@type": "PropertyValue", "name": "Service breaking capacity at 400 V AC", "value": "50 kA" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the ABB 1SAM250000R1005 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The MS116-1.0 manually switches and protects three-phase motors against overloads, short circuits and phase failure." } }, { "@type": "Question", "name": "What motor-current range does the MS116-1.0 support?", "acceptedAnswer": { "@type": "Answer", "text": "The thermal protection setting can be adjusted between 0.63 and 1.00 A to match the motor’s rated current." } }, { "@type": "Question", "name": "What motor power is supported by this manual motor starter?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB MS116-1.0 is rated for a motor power of 0.25 kW at 400 V AC." } }, { "@type": "Question", "name": "What is the short-circuit breaking capacity?", "acceptedAnswer": { "@type": "Answer", "text": "The MS116-1.0 has a rated service short-circuit breaking capacity of 50 kA at 400 V AC and an ultimate breaking capacity of 100 kA at 400 V AC." } }, { "@type": "Question", "name": "How is the ABB MS116-1.0 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The device can be mounted on a 35 mm DIN rail or secured with screws inside a suitable electrical panel or protective enclosure." } } ] }
