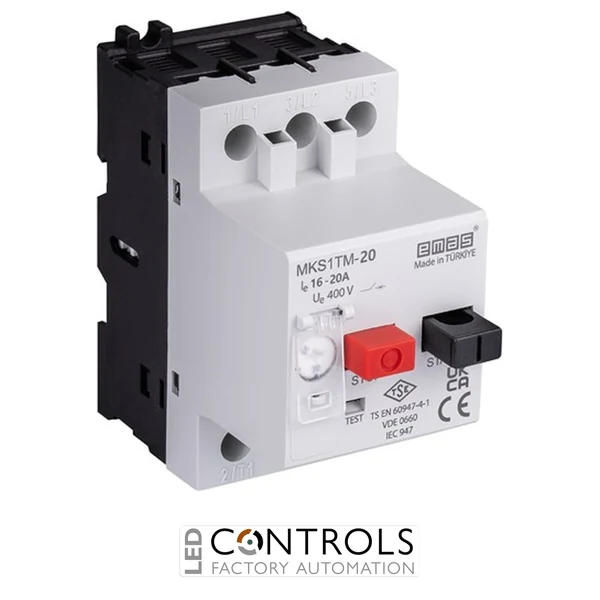

Why Choose the EMAS MKS1TM-20 Motor Protection Circuit Breaker?
The EMAS MKS1TM-20 is a robust motor protection circuit breaker designed to safeguard three-phase motors against overloads, short circuits and phase failure. Part of the trusted EMAS MKS series, it combines adjustable thermal protection with magnetic short-circuit protection in a compact DIN rail-mounted device suitable for industrial control panels and machinery.
Featuring an adjustable thermal protection range of 16 to 20 A, the MKS1TM-20 can be accurately set to match the connected motor's full load current. The integrated magnetic trip mechanism provides rapid disconnection during fault conditions, helping minimise equipment damage and reduce costly downtime.
Designed for installation on a standard 35 mm DIN rail, this motor protection switch is ideal for OEM machinery, motor control centres, conveyor systems, pumps, compressors and other industrial automation applications. With a 690 V insulation rating and IP40 protection, it delivers dependable long-term performance in demanding environments.
Key Advantages
- Adjustable 16 to 20 A thermal overload protection.
- Protects motors against overload, short circuit and phase failure.
- Compact design for 35 mm DIN rail mounting.
- 690 V rated insulation voltage.
- High mechanical and electrical endurance.
- Suitable for industrial motor control and automation systems.
Key Features
- EMAS MKS series motor protection circuit breaker.
- 16 to 20 A adjustable thermal setting.
- 3-pole construction.
- Screw terminal electrical connections.
- IP40 protection rating.
- Operating temperature from -5 °C to +40 °C.
- Mechanical endurance of 100,000 operations.
- Electrical endurance of 100,000 operations.
Reliable Motor Protection for Industrial Applications
Motor protection circuit breakers continuously monitor motor current and disconnect the supply when overload or fault conditions occur. This helps prevent overheating, insulation damage and premature motor failure while improving overall system reliability.
The EMAS MKS1TM-20 is well suited to modern industrial control panels where dependable motor protection, compact installation and straightforward commissioning are essential.
Typical Applications
- Motor control centres.
- Industrial pumps and compressors.
- Conveyor systems.
- Packaging and processing machinery.
- HVAC equipment.
- OEM machinery and automation panels.
