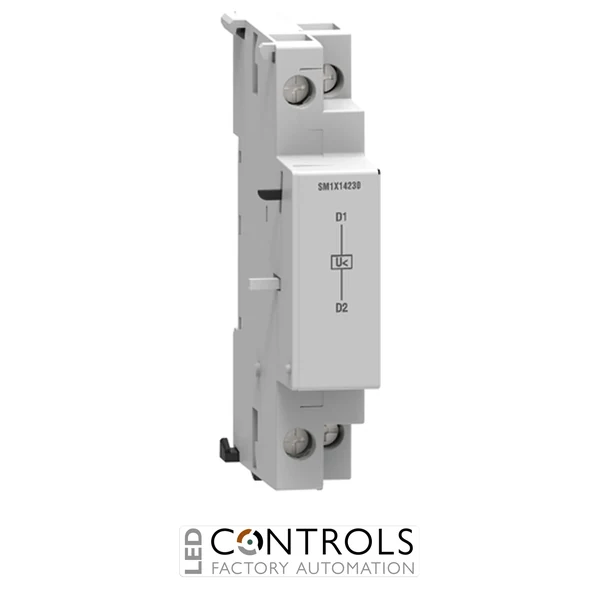

Why Choose the Lovato SM1X14230 Undervoltage Trip Release?
The Lovato SM1X14230 is a dependable undervoltage trip release designed for use with Lovato SM1P and SM1R motor protection circuit breakers. It automatically trips the circuit breaker when the control supply voltage falls below the permitted operating level, helping protect motors, machinery and personnel from unsafe operating conditions.
Operating from a 230 V AC 50 Hz control supply, the SM1X14230 is ideal for industrial motor control systems where machinery must not restart automatically following a power interruption. It enhances machine safety while ensuring compliance with modern motor protection practices.
Designed specifically for the Lovato SM1 series, this compact accessory mounts directly onto compatible motor protection circuit breakers, providing reliable undervoltage protection for OEM equipment, industrial control panels and automation systems.
Key Advantages
- Compact undervoltage trip release for Lovato SM1 motor protection circuit breakers.
- 230 V AC 50 Hz operating voltage.
- Automatically disconnects the breaker during undervoltage conditions.
- Helps prevent unexpected motor restart after power restoration.
- Quick installation onto compatible SM1P and SM1R devices.
- Suitable for industrial machinery, OEM equipment and automation systems.
Key Features
- Lovato SM1X accessory series.
- Undervoltage trip release module.
- 230 V AC 50 Hz rated control supply.
- Compatible with SM1P and SM1R motor protection circuit breakers.
- 690 V rated insulation voltage (Ui).
- 4 kV impulse withstand voltage (Uimp).
- 100,000 mechanical operating cycles.
- Compact direct-mount design for industrial control panels.
Reliable Undervoltage Protection for Industrial Machinery
Undervoltage trip releases improve operational safety by automatically disconnecting the motor protection circuit breaker whenever the control voltage falls below the required operating level. This prevents machinery from restarting unexpectedly once power is restored, reducing the risk of equipment damage and improving operator safety.
The Lovato SM1X14230 has been engineered for dependable long-term operation and integrates seamlessly with compatible Lovato SM1 motor protection circuit breakers, making it an ideal solution for industrial automation and motor control applications.
Typical Applications
- Industrial motor starter panels.
- Machine building and OEM equipment.
- Production and conveyor systems.
- Industrial automation control panels.
- Motor protection systems.
- Applications requiring automatic undervoltage disconnection.
