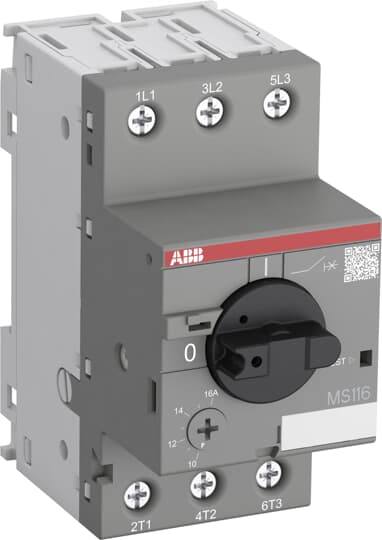

ABB 1SAM250000R1011 MS116-16 manual motor starter and motor protection circuit breaker with 10-16 A adjustable overload setting, 16 A rated operational current, 3-pole thermomagnetic protection and DIN rail mounting design.
£95.46
The ABB 1SAM250000R1011, also known as the MS116-16 manual motor starter, is a compact and reliable motor protection circuit breaker (MPCB) designed for manual motor switching and protection against overload, short circuit and phase failure conditions. As part of the ABB MS116 manual motor starter series, it provides dependable motor protection for industrial automation systems, machinery and electrical control panels.
The MS116-16 features an adjustable thermal overload protection range of 10–16 A with a rated operational current of 16 A. Its compact 45 mm width design combines manual ON/OFF switching, thermal-magnetic protection and integrated disconnect functionality, helping reduce panel space requirements while maintaining reliable motor protection.
With a rated operational voltage of 690 V AC, three-pole construction, trip class 10A protection and a high short-circuit breaking capacity, the ABB 1SAM250000R1011 is suitable for industrial motors, pumps, fans, conveyors and machine automation applications.
Manual motor starters such as the ABB MS116-16 provide a combined switching and protection solution for electric motors. By integrating thermal and magnetic protection into one compact device, they help reduce equipment damage, simplify electrical panel design and improve operational safety.
The ABB MS116 series is engineered for industrial environments requiring dependable motor protection and straightforward maintenance. The 1SAM250000R1011 can be combined with ABB accessories including auxiliary contacts, signalling contacts, undervoltage releases, shunt trips and busbar systems to create flexible motor control solutions.
| Power | 7.5 kW |
|---|---|
| Current | 16 A |
| Phase | Single Phase |
| IP Rating | IP20 |
| Series | MS116 |
| Product ID | 1SAM250000R1011 |
| Product type | Manual motor starter / motor protection circuit breaker |
| Number of poles | 3P |
| Overload release current setting | 10-16 A |
| Rated operational current | 16 A |
| Rated operating voltage | up to 690 V AC |
| Rated operational power AC-3 at 400 V | 7.5 kW |
| Rated service short-circuit breaking capacity Ics at 400 V AC | 16 kA |
| Rated ultimate short-circuit breaking capacity Icu at 400 V AC | 16 kA |
| Trip class | 10A |
| Switch-off technique | Thermomagnetic |
| Phase failure sensitivity | Yes |
| Short-circuit release setting | 240 A |
| Main circuit connection | Screw terminals |
| Control element | Rotary handle |
| Mounting type | DIN rail mounting |
| Protection rating | IP20 |
| Operating temperature | -25 to +70 °C |
| Product net width | 45 mm |
| Product net height | 90 mm |
| Product net depth | 85.6 mm |
| Product net weight | approx. 0.265 kg |
| EAN | 4013614320347 |
The ABB 1SAM250000R1011 is a manual motor starter used to manually switch motors and protect them against overload, short circuit and phase failure conditions.
The product model is ABB MS116-16 manual motor starter.
The MS116-16 supports an adjustable motor protection range of 10–16 A.
The manual motor starter has a rated operational voltage of 690 V AC.
The MS116-16 is designed for DIN rail mounting inside industrial electrical control panels.
ABB MS116 manual motor starters are widely used by electrical engineers and machine builders to provide dependable motor protection, efficient control panel integration and reliable industrial operation.{ "@context": "https://schema.org/", "@type": "Product", "name": "ABB 1SAM250000R1011 MS116-16 Manual Motor Starter", "sku": "1SAM250000R1011", "mpn": "1SAM250000R1011", "brand": { "@type": "Brand", "name": "ABB" }, "category": "Manual Motor Starters", "description": "ABB MS116-16 manual motor starter with 10–16 A adjustable protection range, 16 A rated current and thermal-magnetic motor protection for industrial applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Model", "value": "MS116-16" }, { "@type": "PropertyValue", "name": "Rated current", "value": "16 A" }, { "@type": "PropertyValue", "name": "Adjustment range", "value": "10–16 A" }, { "@type": "PropertyValue", "name": "Voltage rating", "value": "690 V AC" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the ABB 1SAM250000R1011 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The ABB 1SAM250000R1011 is a manual motor starter used to manually switch motors and protect them against overload, short circuit and phase failure conditions." } }, { "@type": "Question", "name": "What is the model name of ABB 1SAM250000R1011?", "acceptedAnswer": { "@type": "Answer", "text": "The product model is ABB MS116-16 manual motor starter." } }, { "@type": "Question", "name": "What motor current range does the MS116-16 support?", "acceptedAnswer": { "@type": "Answer", "text": "The MS116-16 supports an adjustable motor protection range of 10–16 A." } }, { "@type": "Question", "name": "What voltage rating does the ABB MS116-16 have?", "acceptedAnswer": { "@type": "Answer", "text": "The manual motor starter has a rated operational voltage of 690 V AC." } }, { "@type": "Question", "name": "How is the ABB MS116-16 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The MS116-16 is designed for DIN rail mounting inside industrial electrical control panels." } } ] }
