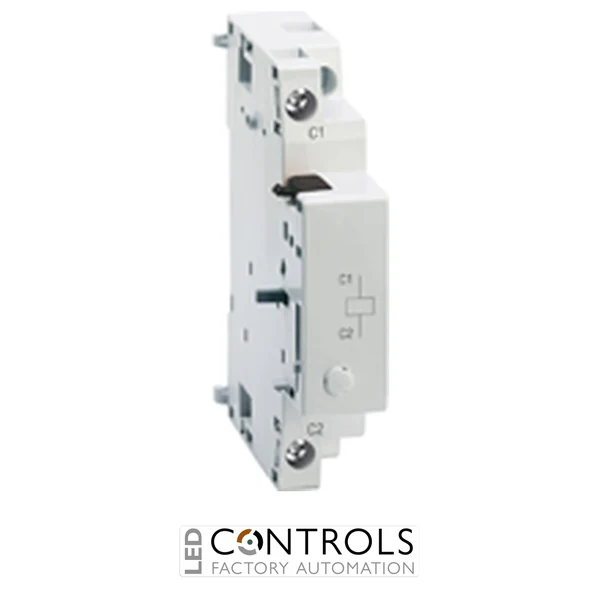

Why Choose the Lovato SM2X14230 Undervoltage Trip Release?
The Lovato SM2X14230 is a reliable undervoltage trip release designed for use with Lovato SM2R and SM3R motor protection circuit breakers. Operating at 230 V AC 50/60 Hz, it helps protect machinery and electrical systems by automatically tripping the associated device when the control voltage falls below a safe operating level.
As part of the Lovato SM2X accessory range, this undervoltage release is ideal for industrial control panels, motor control centres and OEM machinery where controlled shutdown and supply monitoring are required. Its compact accessory design enables straightforward integration with compatible Lovato motor protection devices.
With a rated insulation voltage of 690 V, a 4 kV impulse withstand rating and screw terminal connection, the SM2X14230 provides dependable performance in demanding industrial environments. It is suitable for automation systems that require safe motor disconnection during undervoltage conditions or control supply loss.
Key Advantages
- Designed for Lovato SM2R and SM3R motor protection circuit breakers.
- 230 V AC 50/60 Hz undervoltage trip release.
- Automatically trips the protected device when control voltage drops.
- Helps prevent unsafe motor restart after supply loss.
- Compact accessory design for industrial control panels.
- Reliable screw terminal connection for secure wiring.
Key Features
- Lovato SM2X undervoltage trip release series.
- 230 V AC rated control supply voltage.
- 50/60 Hz operating frequency.
- Compatible with SM2R and SM3R motor protection circuit breakers.
- 690 V rated insulation voltage (Ui).
- 4 kV rated impulse withstand voltage (Uimp).
- Release voltage range for undervoltage protection.
- Screw connection terminals for secure installation.
Reliable Undervoltage Protection for Motor Control Systems
Undervoltage trip releases are used to disconnect motor protection devices when the control supply falls below the required level. This helps prevent motors from restarting unexpectedly and supports safer operation of machinery after supply interruptions or voltage drops.
The Lovato SM2X14230 is engineered for reliable integration with compatible Lovato motor protection circuit breakers, making it suitable for control panels, automated machinery and industrial installations where dependable undervoltage protection is essential.
Typical Applications
- Industrial motor control panels.
- Motor control centres and distribution boards.
- Machine safety and control circuits.
- OEM machinery and automation systems.
- Pump, fan and conveyor control systems.
- Applications requiring controlled trip on voltage loss.
