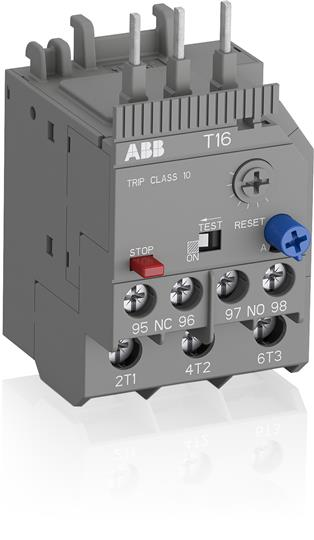

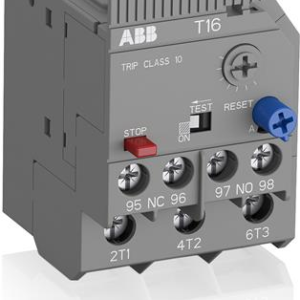

ABB t16-0.55 thermal overload relay 0.41a - 0.55a

ABB t16-0.55 thermal overload relay 0.41a – 0.55a

ABB T16-0.55 thermal overload relay with adjustable 0.41 to 0.55 A current range designed for motor overload and phase failure protection in industrial automation systems.

SKU: 1SAZ711201R1017Alt SKU: T16-0.55MPN: 1SAZ711201R1017
Price
List Price £52.16 ex VAT
Your Price (ex VAT)
£52.16
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £52.16
Trade pricing is personalised to your account

1 in stock (can be backordered)

£52.16

Why Choose the ABB 1SAZ711201R1017 T16-0.55 Thermal Overload Relay?

The ABB 1SAZ711201R1017, also known as the T16-0.55 Thermal Overload Relay, is a compact and dependable electromechanical motor protection relay designed to protect three-phase motors against overload conditions and phase failure. As part of the trusted ABB T16 Thermal Overload Relay series, it delivers reliable motor protection, helping to maximise equipment uptime and extend motor service life.

The T16-0.55 incorporates Trip Class 10 protection, temperature compensation, selectable automatic or manual reset, phase loss sensitivity, integrated STOP and TEST functions, and a clear trip indication. Designed for direct mounting onto compatible ABB mini and block contactors, it provides fast installation and dependable performance within industrial motor starter assemblies.

With an adjustable current setting range of 0.41 to 0.55 A, the ABB 1SAZ711201R1017 is ideal for protecting small three-phase motors used in conveyors, pumps, compressors, fans, OEM machinery and industrial automation systems.

Key Advantages

  • Reliable thermal overload relay for three-phase motor protection.
  • Adjustable overload setting from 0.41 to 0.55 A.
  • Trip Class 10 provides rapid overload protection.
  • Protects motors against overloads and phase failure.
  • Automatic or manual reset selectable.
  • Direct mounting onto compatible ABB contactors.

Key Features

  • ABB T16 Thermal Overload Relay series.
  • Current adjustment range: 0.41 to 0.55 A.
  • Trip Class 10.
  • Temperature compensated operation.
  • Phase loss sensitivity.
  • Integrated STOP and TEST functions.
  • 1 NO signalling contact and 1 NC trip contact.
  • Direct mounting onto ABB B6, BC6, B7, BC7, VB6, VBC6, VB7, VBC7 and AS09-AS16 contactors.

Reliable Motor Protection for Industrial Applications

Thermal overload relays continuously monitor motor current and disconnect the motor circuit whenever prolonged overload conditions occur. This protects motors against overheating, reduces unplanned downtime and helps maximise the operational life of industrial equipment.

The ABB T16 series combines dependable overload protection, phase failure detection and straightforward installation, making it an excellent solution for industrial motor starters, machine builders and OEM automation equipment.

Typical Applications

  • Motor starters.
  • Industrial automation systems.
  • Conveyors and material handling equipment.
  • Pumps and compressors.
  • OEM machinery.
  • Electrical control panels.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type Direct mount on contactor
Device Type Thermal Overload Relay
Current Range 0.41–0.55 A
Trip Class Class 10
Current 0.55 A
Phase Three Phase
IP Rating IP20
Series T16 Thermal Overload Relays
Product code 1SAZ711201R1017
Product type Thermal overload relay
Setting range 0.41–0.55 A
Rated operational current AC-3 0.55 A
Trip class Class 10
Number of protected poles 3
Auxiliary contacts 1 NO + 1 NC
Rated operational voltage main circuit 690 V AC
Rated insulation voltage 690 V
Rated impulse withstand voltage 6 kV
Control circuit voltage 600 V AC/DC
Frequency 50 / 60 Hz
Degree of protection IP20
Connection type Screw terminals
Mounting type Direct mounting to contactor
Width 45 mm
Height 76.7 mm
Depth 53.5 mm
Weight approx. 0.10 kg
Ambient operating temperature -25 °C to +60 °C
Standards IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1

Frequently Asked Questions

What is the ABB 1SAZ711201R1017 used for?

It protects three-phase electric motors against overload conditions and phase failure in industrial motor control systems.

What current range does this overload relay support?

The relay has an adjustable overload setting range of 0.41 to 0.55 A.

What trip class does the relay provide?

The ABB T16-0.55 features a Trip Class 10 characteristic for dependable motor protection.

Can the relay be reset manually?

Yes. The relay supports both manual and automatic reset modes.

Which contactors is this relay compatible with?

It is designed for direct mounting onto compatible ABB B6, BC6, B7, BC7, VB6, VBC6, VB7, VBC7 and AS09 to AS16 contactors.
