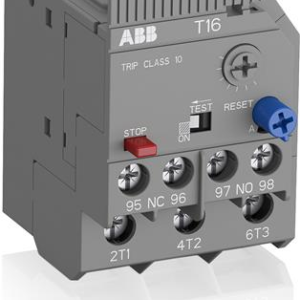

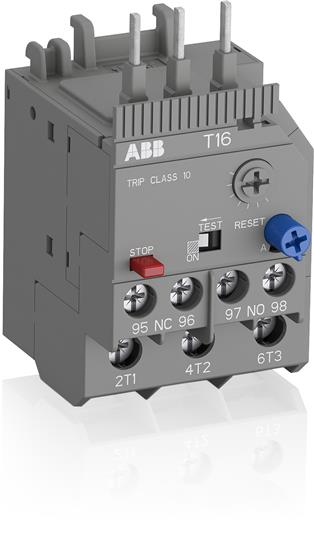

ABB t16-16 thermal overload relay 13a to 16a

ABB t16-16 thermal overload relay 13a to 16a

ABB T16-16 thermal overload relay with adjustable current range from 13 to 16 A, designed for industrial motor protection and automation systems.

SKU: 1SAZ711201R1047Alt SKU: T16-16MPN: 1SAZ711201R1047
Price
List Price £52.16 ex VAT
Your Price (ex VAT)
£52.16
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £52.16
Trade pricing is personalised to your account

1 in stock (can be backordered)

£52.16

Why Choose the ABB T16-16 Thermal Overload Relay?

The ABB T16-16 Thermal Overload Relay (1SAZ711201R1047) is a dependable electromechanical motor protection device designed to safeguard three-phase motors against overload conditions and phase failure. As part of the trusted ABB T16 thermal overload relay series, it provides rapid and reliable motor protection while helping reduce downtime and extend equipment service life.

Designed for direct mounting onto compatible ABB mini and block contactors, the T16-16 combines straightforward installation with dependable performance. It features temperature compensation, selectable automatic or manual reset, integrated auxiliary contacts, trip indication and a trip-free mechanism, making it an excellent choice for industrial motor control applications.

With an adjustable current range of 13 to 16 A and Trip Class 10 protection, the ABB 1SAZ711201R1047 is ideally suited to protecting motors used in conveyors, pumps, compressors, fans, packaging machinery, machine tools and industrial automation systems.

Key Advantages

  • Reliable thermal overload protection for three-phase motors.
  • Adjustable overload setting from 13 to 16 A.
  • Protects against motor overload and phase failure.
  • Trip Class 10 for fast and dependable protection.
  • Selectable automatic or manual reset.
  • Direct mounting onto compatible ABB contactors.

Key Features

  • ABB T16 thermal overload relay series.
  • Current adjustment range: 13 to 16 A.
  • Trip Class 10 motor protection.
  • Integrated temperature compensation.
  • Sensitive phase failure detection.
  • 1 NO + 1 NC auxiliary contacts.
  • Trip-free mechanism with STOP function.
  • Trip indication for simplified diagnostics.
  • Automatic or manual reset selection.

Reliable Motor Protection for Industrial Applications

Thermal overload relays continuously monitor motor current and disconnect the control circuit whenever sustained overload or phase failure is detected. This protects motors against overheating, insulation damage and premature failure while improving equipment reliability and reducing maintenance costs.

The ABB T16 series is widely used in industrial motor starters and control panels where dependable overload protection and seamless integration with ABB contactors are essential. Its compact design makes it suitable for OEM machinery, manufacturing plants and industrial automation systems.

Typical Applications

  • Motor starters and electrical control panels.
  • Industrial conveyors.
  • Pumps and pumping systems.
  • Fans and ventilation equipment.
  • Compressors.
  • Packaging and processing machinery.
  • Machine tools.
  • OEM industrial automation equipment.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Type Direct mount on contactor
Current Range 13–16 A
Trip Class Class 10
Reset Type Manual / Automatic
Device Type Thermal Overload Relay
Current 16 A
Phase Three Phase
IP Rating IP20
Poles 3-pole
Series T16 Thermal Overload Relays
Product code 1SAZ711201R1047
Product type Thermal overload relay
Current adjustment range 13 to 16 A
Rated operational current 16 A
Trip class Class 10
Number of poles 3
Auxiliary contacts 1 NO + 1 NC
Rated operational voltage 690 V AC
Auxiliary circuit voltage 600 V AC/DC
Protection rating IP20
Reset method Automatic or manual
Mounting type Direct attachment to contactor
Terminal type Screw terminals
Dimensions (H × W × D) approx. 76.7 × 45 × 53.5 mm
Weight approx. 0.104 kg

Frequently Asked Questions

What is the ABB T16-16 thermal overload relay used for?

It protects three-phase electric motors against overload conditions and phase failure, helping prevent overheating and costly equipment damage.

What current range does the relay support?

The relay has an adjustable overload setting range of 13 to 16 A.

Does the relay include auxiliary contacts?

Yes. It includes 1 normally open (NO) signal contact and 1 normally closed (NC) trip contact.

Can the relay be configured for automatic or manual reset?

Yes. The reset mode is selectable, allowing either automatic or manual operation depending on the application.

How is the T16-16 installed?

The relay mounts directly onto compatible ABB mini and block contactors, creating a compact and reliable motor starter assembly.
