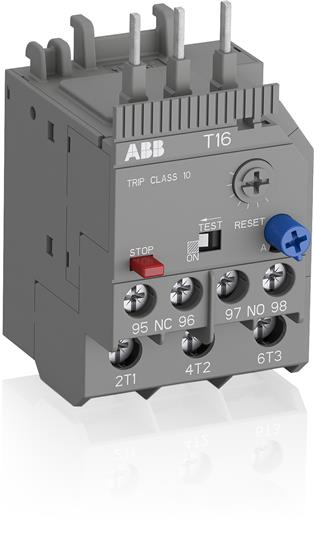

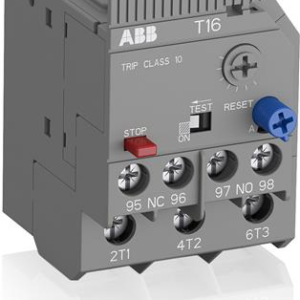

ABB t16-7.6 thermal overload relay 5.7a - 7.6a

ABB t16-7.6 thermal overload relay 5.7a – 7.6a

ABB T16-7.6 thermal overload relay with adjustable current range from 5.7 to 7.6 A, designed for industrial motor protection and automation systems.

SKU: 1SAZ711201R1040Alt SKU: T16-7.6MPN: 1SAZ711201R1040
Price
List Price £52.16 ex VAT
Your Price (ex VAT)
£52.16
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £52.16
Trade pricing is personalised to your account

2 in stock (can be backordered)

£52.16

Why Choose the ABB T16-7.6 Thermal Overload Relay?

The ABB T16-7.6 Thermal Overload Relay (1SAZ711201R1040) is a dependable electromechanical motor protection device engineered to protect three-phase motors against overload conditions and phase failure. As part of the trusted ABB T16 thermal overload relay series, it delivers fast, reliable motor protection while helping to minimise downtime and extend the service life of industrial equipment.

Designed for direct mounting onto compatible ABB mini and block contactors, the T16-7.6 combines straightforward installation with dependable performance. It features temperature compensation, selectable automatic or manual reset, integrated auxiliary contacts, trip indication and a trip-free mechanism, making it an excellent choice for industrial motor control systems.

With an adjustable current range of 5.7 to 7.6 A and Trip Class 10 protection, the ABB 1SAZ711201R1040 is ideal for protecting motors used in conveyors, pumps, compressors, fans, packaging machinery, processing equipment and automated production systems.

Key Advantages

  • Reliable thermal overload protection for three-phase motors.
  • Adjustable current setting from 5.7 to 7.6 A.
  • Protects against motor overload and phase failure.
  • Trip Class 10 for rapid motor protection.
  • Selectable automatic or manual reset.
  • Direct mounting onto compatible ABB contactors for fast installation.

Key Features

  • ABB T16 thermal overload relay series.
  • Current adjustment range: 5.7 to 7.6 A.
  • Trip Class 10 motor protection.
  • Integrated temperature compensation.
  • 1 NO + 1 NC auxiliary contacts.
  • Trip-free mechanism with STOP function.
  • Visible trip indication.
  • Automatic or manual reset selection.
  • Direct mounting onto ABB mini and block contactors.

Reliable Motor Protection for Industrial Applications

Thermal overload relays continuously monitor motor current and disconnect the control circuit whenever sustained overload or phase loss is detected. This helps prevent overheating, insulation damage and premature motor failure while improving the reliability and longevity of industrial equipment.

The ABB T16 series is widely used in motor starters and control panels where dependable overload protection and seamless integration with ABB contactors are required. Its compact construction makes it ideal for OEM machinery, manufacturing plants and industrial automation systems.

Typical Applications

  • Motor starters and control panels.
  • Industrial conveyors.
  • Pumps and pumping systems.
  • Fans and ventilation equipment.
  • Compressors.
  • Packaging and processing machinery.
  • Machine tools.
  • OEM automation equipment.

Technical Specifications

Tick the specs you need, then view products that match.

Current 7.6 A
Mounting Type Direct mount on contactor
Device Type Thermal Overload Relay
Current Range 5.7–7.6 A
Trip Class Class 10
Reset Type Manual / Automatic
Phase Three Phase
IP Rating IP20
Poles 3-pole
Rated operational current 7.6 A
Current adjustment range 5.7 to 7.6 A
Series T16 Thermal Overload Relays
Product code 1SAZ711201R1040
Product type Thermal overload relay
Trip class Class 10
Number of poles 3
Auxiliary contacts 1 NO + 1 NC
Rated insulation voltage 690 V AC
Auxiliary circuit voltage 600 V AC/DC
Protection rating IP20
Reset method Automatic or manual
Mounting type Direct mounting / DIN rail
Terminal type Screw terminals
Dimensions (H × W × D) approx. 76.7 × 45 × 53.5 mm
Operating temperature approx. -25 °C to +60 °C
Weight approx. 0.1 kg

Frequently Asked Questions

What is the ABB T16-7.6 thermal overload relay used for?

It protects three-phase electric motors against overload conditions and phase failure, helping prevent overheating and costly equipment damage.

What current range does this relay support?

The relay has an adjustable overload setting range of 5.7 to 7.6 A.

Does the relay include auxiliary contacts?

Yes. It includes 1 normally open (NO) signal contact and 1 normally closed (NC) trip contact.

Can the relay be configured for automatic or manual reset?

Yes. The reset mode is selectable, allowing either automatic or manual operation depending on the application.

How is the T16-7.6 installed?

The relay mounts directly onto compatible ABB mini and block contactors, providing a compact and efficient motor starter solution.

Trusted by Industrial Professionals Worldwide

ABB thermal overload relays are trusted by panel builders, OEMs and maintenance engineers worldwide for dependable motor protection, long service life and seamless integration into industrial motor control systems.
