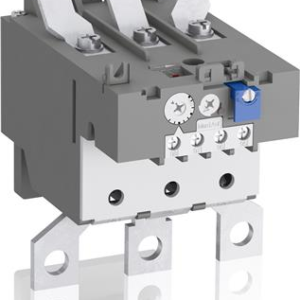

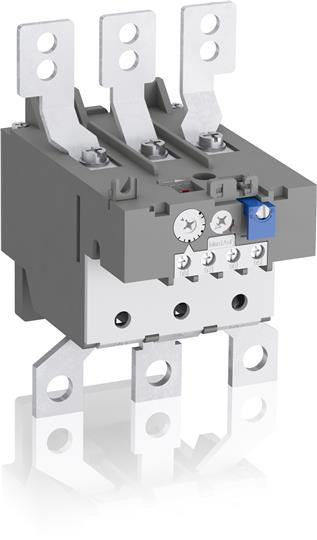

ABB TA200DU-135 thermal overload relay with adjustable 100-135 A current range for industrial motor protection against overload and phase failure.
£335.89
The ABB TA200DU-135 Thermal Overload Relay (1SAZ421201R1003) is a heavy-duty electromechanical motor protection relay designed to provide dependable overload and phase failure protection for larger three-phase motors operating in demanding industrial environments. As part of the proven ABB TA200DU thermal overload relay series, it is engineered for direct mounting onto compatible ABB A145, A185, AF145, AF185, AF190 and AF205 contactors, making it an ideal solution for industrial motor starters, machinery and electrical control panels.
Designed to maximise motor reliability while reducing costly downtime, the TA200DU-135 features temperature compensation, phase loss sensitivity and a Trip Class 10A characteristic for accurate overload protection. Integrated auxiliary contacts, selectable manual or automatic reset and built-in STOP and TEST functions simplify commissioning and maintenance while ensuring safe operation in demanding industrial environments.
With an adjustable current setting range of 100 to 135 A, the TA200DU-135 is ideally suited for protecting large industrial motors used in conveyors, compressors, pumps, fans and heavy manufacturing equipment. Its rugged construction ensures dependable long-term performance in continuous industrial service.
Thermal overload relays continuously monitor motor current and disconnect the motor whenever prolonged overload conditions or phase failure occur. This helps prevent overheating, extend motor service life and minimise unexpected downtime across industrial installations.
The ABB TA200DU series is trusted by OEMs, panel builders and maintenance engineers for dependable motor protection, straightforward installation and seamless compatibility with ABB block contactors. Its robust construction ensures long service life in demanding industrial environments.
| Current | 135 A |
|---|---|
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | TA200DU |
| Part number | 1SAZ421201R1003 |
| Product type | Thermal overload relay |
| Current setting range | 100–135 A |
| Rated operational current | 135 A |
| Trip class | 10A |
| Rated operational voltage | Up to 690 V AC |
| Rated insulation voltage | 690 V |
| Number of poles | 3P |
| Auxiliary contacts | 1 NC + 1 NO |
| Frequency | 50 / 60 Hz |
| Protection rating | IP20 housing |
| Mounting type | Direct mounting to contactor |
| Dimensions (H × W × D) | approx. 151 × 104 × 126 mm |
| Weight | approx. 0.76 kg |
The TA200DU-135 protects three-phase motors against overload conditions and phase failure in industrial motor control applications.
The relay provides an adjustable overload current setting from 100 to 135 A.
Yes. The TA200DU-135 supports both manual and automatic reset to suit different installation requirements.
It is designed for direct mounting onto compatible ABB A145, A185, AF145, AF185, AF190 and AF205 contactors.
It provides reliable thermal overload and phase failure protection for three-phase industrial motors while helping extend motor service life.
ABB TA200DU thermal overload relays are trusted worldwide by machine builders, electrical contractors and maintenance engineers for dependable motor protection, long service life and seamless integration into industrial motor starter assemblies.
