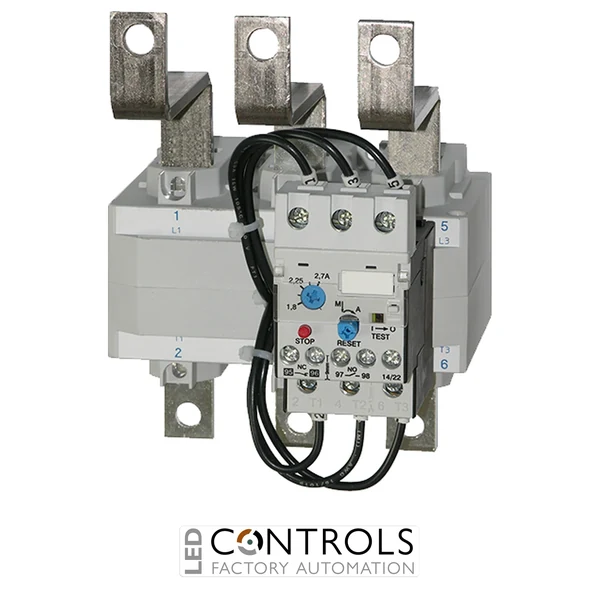

IMO MCOR-6-216 thermal overload relay with adjustable 160-216A protection range for industrial motor control and heavy-duty motor starter applications.
£652.18
The IMO MCOR-6-216 is a heavy-duty thermal overload relay designed to deliver dependable motor protection for large industrial motors and demanding automation systems. Engineered for integration with compatible IMO MC series contactors, this relay protects motors against overload currents, overheating and phase failure conditions that can cause costly production downtime and equipment damage.
As part of the trusted IMO MCOR overload relay series, the MCOR-6-216 combines precise thermal protection with durable industrial construction. The relay offers adjustable overload settings, reliable tripping performance and straightforward installation for industrial motor starter assemblies and OEM control panels.
With an adjustable current setting range of 160 to 216 A, the IMO MCOR-6-216 is ideal for protecting large three-phase motors used in pumps, compressors, conveyors, process machinery and heavy industrial applications. Its direct-mount design enables seamless integration into industrial motor control systems while helping extend motor service life and improve operational reliability.
Thermal overload relays continuously monitor motor current and disconnect the circuit if overload or overheating conditions occur. This protection helps prevent insulation failure, motor damage and unplanned downtime in industrial applications.
The IMO MCOR series is designed for demanding motor control environments requiring dependable overload protection and long-term operational reliability. The MCOR-6-216 is particularly suited to larger industrial motors operating under heavy load conditions.
| Current | 216 A |
|---|---|
| Phase | Three Phase |
| Series | MCOR Thermal Overload Relays |
| Product type | Thermal overload relay |
| Adjustable current range | 160–216 A |
| Protection function | Thermal overload and phase failure protection |
| Reset type | Manual / automatic selectable |
| Auxiliary contacts | 1NO + 1NC |
| Trip class | Class 10A |
| Voltage rating | Up to 690 V AC |
| Number of poles | 3-pole |
| Mounting type | Direct mounting to compatible contactors |
| Connection type | Screw terminals |
| Operating temperature | Approx. -25°C to +60°C |
| Compliance | IEC motor protection standards |
| Weight | Approx. 0.85 kg |
| HS Code | 8536309090 |
| Country of Manufacture | Austria |
The relay provides thermal overload and phase failure protection for large industrial motors and motor starter systems.
The MCOR-6-216 features an adjustable overload current range of 160 to 216 A.
Yes, the relay supports both manual and automatic reset modes depending on system requirements.
The relay protects motors against overload conditions, overheating and phase failure.
The MCOR-6-216 is typically installed in industrial motor starter panels, MCC systems and heavy-duty automation equipment.
IMO thermal overload relays are widely used in industrial motor control systems to provide reliable motor protection, long operational life and dependable machine performance in demanding industrial environments.
