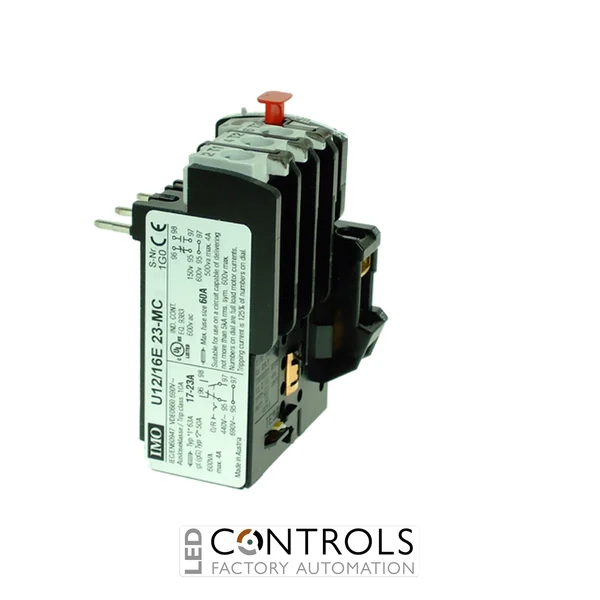

Why Choose the IMO U12/16E14K1 Thermal Overload Relay?
The IMO U12/16E14K1 is a reliable thermal overload relay designed to provide dependable motor protection in industrial automation, motor starter assemblies and electrical control systems. As part of the IMO U12/16E overload relay series, it is engineered to protect electric motors against overload currents and overheating conditions.
This overload relay combines accurate thermal protection with a compact design and straightforward installation. Designed for use with compatible IMO MB09 and MB12 contactors, the U12/16E14K1 provides reliable motor protection while supporting efficient integration into industrial control panels and machinery systems.
With an adjustable current setting range of 10–14 A, the IMO U12/16E14K1 is suitable for protecting motors in applications such as conveyors, pumps, fans, compressors and industrial machinery. It features manual reset operation for controlled restart procedures following overload trips.
Key Advantages
- Reliable thermal overload protection for industrial motors.
- 10–14 A adjustable current range for accurate motor protection.
- Provides protection against motor overload conditions.
- Manual reset functionality for controlled machine restart.
- Compatible with IMO MB09 and MB12 contactors.
- Compact design for electrical control panel installations.
Key Features
- IMO U12/16E thermal overload relay series.
- 10–14 A adjustable overload current range.
- 18–24 A star-delta protection range.
- Thermal overload protection.
- Manual reset operation.
- 1 normally open and 1 normally closed auxiliary contact.
- Direct mounting to compatible IMO MB09 and MB12 contactors.
Reliable Motor Protection for Industrial Applications
Thermal overload relays such as the IMO U12/16E14K1 monitor motor current and disconnect the motor circuit when excessive current conditions occur. This helps prevent overheating, motor damage and unexpected equipment downtime.
The IMO U12/16E series is designed for industrial motor control systems requiring dependable overload protection and simple integration into contactor starter assemblies. Its compact construction makes it suitable for automation equipment, machinery and industrial control panels.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and ventilation equipment.
- Packaging and processing machinery.
- OEM motor starter assemblies.
- Factory automation systems.
- Industrial control panels and machinery.
