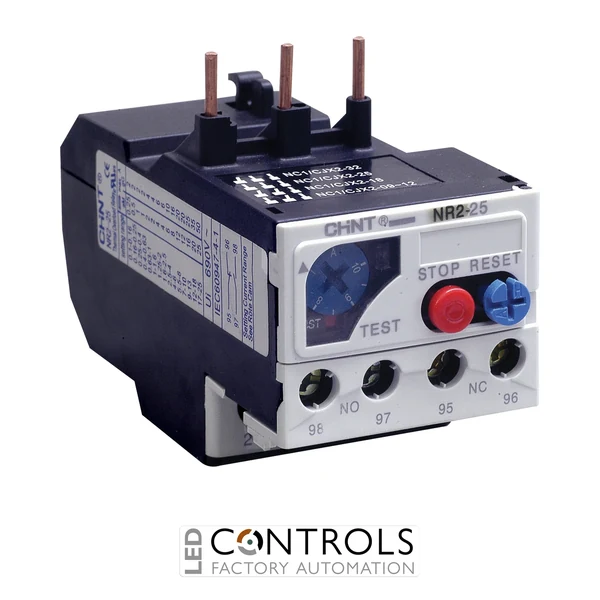

CHINT NR2-25-10 thermal overload relay with a 6.00–10.00 A adjustable current range designed for three-phase AC motor overload and phase-loss protection.
£26.19
The CHINT NR2-25-10 is a dependable thermal overload relay designed to protect three-phase AC motors against overload and phase-loss conditions in industrial motor control applications. As part of the proven CHINT NR2 thermal overload relay series, it provides adjustable motor protection and reliable operation for electrical control systems.
This overload relay uses thermal bimetal protection technology to monitor motor current and trip the control circuit when sustained overload conditions occur. The NR2 series is designed for simple integration with CHINT contactors, providing an effective solution for motor starters, automation equipment and industrial machinery.
With an adjustable current range of 6.00–10.00 A, the CHINT NR2-25-10 is suitable for protecting small to medium three-phase motors and provides accurate overload protection in demanding industrial environments.
Thermal overload relays such as the CHINT NR2-25-10 help prevent motor damage by detecting excessive current conditions and disconnecting the motor control circuit when overload occurs. This improves equipment reliability and helps extend motor operating life.
The NR2 series is designed for machine builders, electrical engineers and automation professionals requiring dependable motor protection with simple installation and adjustment.
| Manufacturer | CHINT |
|---|---|
| Series | NR2 Thermal Overload Relay |
| Model | NR2-25-10 |
| Product type | Thermal overload relay |
| Current setting range | 6.00–10.00 A |
| Frame size | NR2-25 |
| Protection type | Overload and phase-loss protection |
| Rated frequency | 50 / 60 Hz |
| Rated operational voltage | Up to 690 V AC |
| Rated insulation voltage | 690 V |
| Trip class | 10A |
| Number of poles | 3 |
| Mounting type | Plug-in / compatible contactor mounting |
| Compatible contactors | CHINT NC1 series |
| Auxiliary contacts | 1 NO + 1 NC |
| Compliance standard | IEC/EN 60947-4-1 |
The CHINT NR2-25-10 is a thermal overload relay used to protect three-phase AC motors from overload and phase-loss conditions.
The relay has an adjustable current setting range of 6.00–10.00 A.
The relay provides thermal overload protection and phase-loss protection for industrial motor applications.
The NR2-25-10 is designed for use with compatible CHINT contactors including the NC1 series.
The NR2 series supports manual and automatic reset operation for flexible motor control system designs.
CHINT NR2 thermal overload relays are widely used in industrial motor control systems to provide reliable protection, efficient operation and improved equipment safety.
