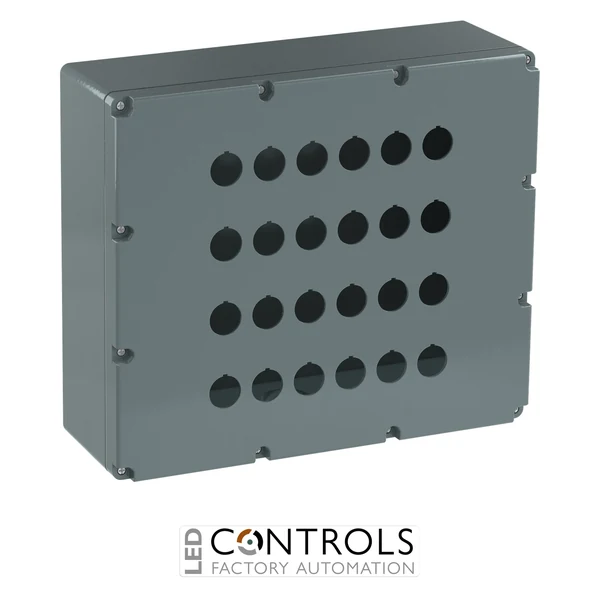

Why Choose the ABB 080SP24 24-Position Pilot Device Enclosure?
The ABB 080SP24 is a robust 24-position aluminium enclosure designed for industrial pilot devices and operator controls. Supplied under ABB order code 1SFA170810R1024 and belonging to the P9M Pushbuttons product group, it provides a durable housing for assembling comprehensive pushbutton and control stations.
The 080SP24 is an empty grey aluminium enclosure with 24 operator positions for 22 mm pilot devices. Its normal-base construction incorporates provision for conduit entry, allowing compatible pushbuttons, selector switches, pilot lights and other operator devices to be installed and wired as part of a customised industrial control station.
With dimensions of 300 × 257 × 101.5 mm and an IP66 protection rating, the 080SP24 provides a substantial yet organised enclosure for demanding machine-control environments. Its 24-position configuration is particularly suitable for applications requiring numerous control and indication functions within a single operator station.
Key Advantages
- Genuine ABB P9M Pushbuttons enclosure for industrial control applications.
- 24 operator positions provide capacity for extensive control and indication functions.
- Designed for standard 22 mm pilot devices.
- Durable grey aluminium construction.
- IP66 protection rating for demanding industrial environments.
- Normal-base construction with conduit-entry provision for control wiring.
Key Features
- ABB type 080SP24.
- ABB order code 1SFA170810R1024.
- 24-position empty pilot-device enclosure.
- 24 × 22 mm operator openings.
- Grey aluminium housing.
- IP66 degree of protection.
- NEMA 4X enclosure rating.
- Surface-mounted housing.
- Normal base construction.
- Designed with conduit-entry provision.
- Dimensions of 300 × 257 × 101.5 mm.
- Net weight approximately 2.912 kg.
High-Capacity Housing for Industrial Operator Controls
Multi-position pilot-device enclosures allow pushbuttons, selector switches, pilot lights and other control devices to be grouped into a single organised operator station. This simplifies machine operation by placing related commands and indications together while providing a dedicated protective housing for the installed devices.
The ABB 080SP24 provides 24 standard 22 mm operator positions in a durable aluminium enclosure. Its IP66 protection, normal-base construction and conduit-entry provision make it suitable for larger industrial control stations where numerous operator functions need to be integrated into one enclosure.
Typical Applications
- Large multi-function industrial control stations.
- Machine pushbutton and selector-switch panels.
- Production-line operator interfaces.
- Manufacturing and process automation equipment.
- Local machinery control and indication stations.
- OEM machinery and industrial automation systems.
