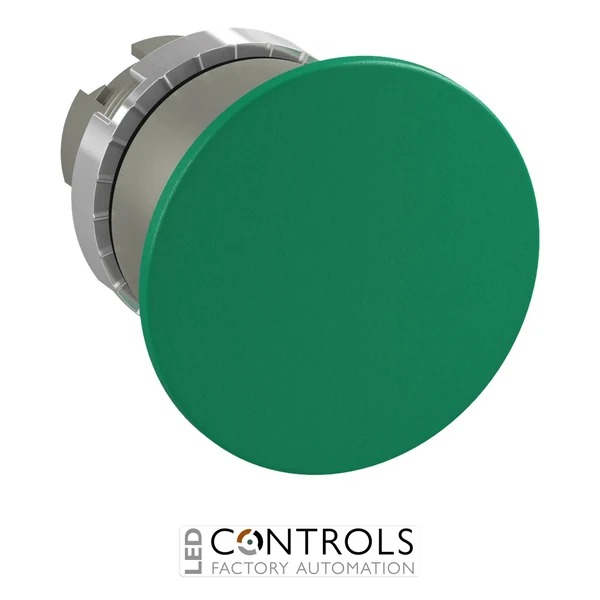

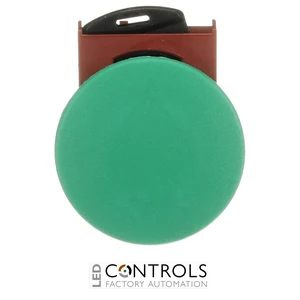

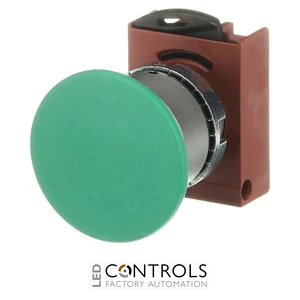

Why Choose the ABB P9MEM4VN Mushroom Pushbutton?
The ABB P9MEM4VN is a robust non-illuminated mushroom pushbutton designed for industrial machinery, control panels and operator stations. Part of ABB's P9M Pushbuttons modular metal range, it combines a large green mushroom actuator with durable satin-chrome metal construction for reliable manual control in demanding industrial applications.
The P9MEM4VN features a 40 mm green mushroom actuator with momentary spring-return operation, returning automatically to its normal position when released. Its enlarged actuator provides an accessible operating surface, while the modular design allows compatible ABB contact blocks to be selected according to the electrical switching configuration required by the application.
Designed for a standard 22 mm mounting hole, the P9MEM4VN provides IP66 front protection when correctly installed. Each reference includes the satin-chrome metal body and nut together with the holder, providing a rugged operator assembly suitable for mining, construction, heavy industry and general machinery applications.
Key Advantages
- Large 40 mm mushroom actuator for accessible manual operation.
- Highly visible green actuator for industrial operator controls.
- Momentary spring-return operation automatically returns after release.
- Standard 22 mm mounting format for industrial pilot-device installations.
- Durable satin-chrome metal construction.
- IP66 front protection for demanding industrial environments.
Key Features
- ABB P9MEM4VN mushroom pushbutton.
- 40 mm mushroom actuator.
- Green actuator colour.
- Momentary / spring-return operation.
- Non-illuminated design.
- 22 mm mounting hole.
- Satin-chrome metal body and retaining nut.
- Supplied with holder.
- IP66 protection at the front.
Mushroom pushbuttons provide a larger operating surface than conventional flush pushbuttons, making them useful where a prominent and readily accessible manual control is required. The ABB P9MEM4VN combines a 40 mm mushroom actuator with spring-return operation, providing a temporary control input whenever the actuator is pressed.
ABB's P9M modular metal range is designed for demanding industrial applications where mechanical durability and configuration flexibility are important. Compatible modular contact blocks can be selected separately to create the electrical contact arrangement required for the machine or control system.
Typical Applications
- Industrial machinery control stations.
- Manufacturing and production equipment.
- Mining and construction machinery.
- Heavy-industry operator controls.
- Conveyor and material-handling systems.
- OEM machinery and industrial automation systems.
