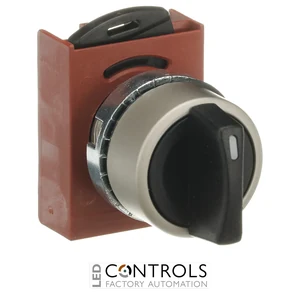

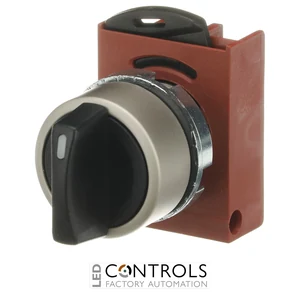

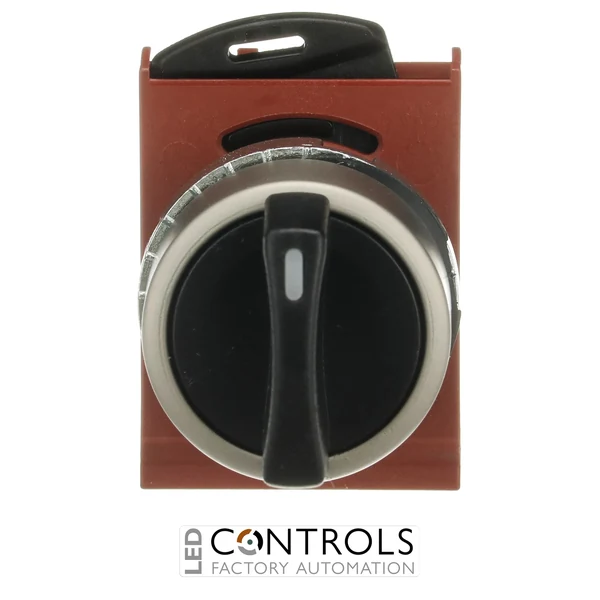

Why Choose the ABB P9MSMZ5N Selector Switch?
The ABB P9MSMZ5N is a robust three-position maintained/momentary selector switch designed for operator control in industrial machinery, control panels and automation systems. As part of the ABB P9M modular metal pushbutton range, it combines a durable satin chrome metal construction with a black short rotary handle for reliable operation in demanding industrial environments.
The P9MSMZ5N features CAM function Z and combines maintained and spring-return operation within its three-position selector arrangement. This configuration makes it suitable for machine and process-control functions where both retained selection and temporary momentary commands are required from a single operator.
Designed for standard 22 mm pilot-device mounting, the P9MSMZ5N provides IP66 front protection and a NEMA 4X rating when correctly installed. Each reference includes the satin chrome metal body and nut together with the holder, allowing compatible ABB P9M contact blocks to be selected according to the required electrical switching arrangement.
Key Advantages
- Heavy-duty three-position selector switch for industrial control applications.
- Maintained/momentary operating principle supports versatile machine-control functions.
- Black short rotary handle provides compact and convenient manual operation.
- CAM function Z for the specified three-position switching arrangement.
- Non-illuminated design for straightforward operator-control applications.
- Durable satin chrome metal body and nut for demanding environments.
- IP66 and NEMA 4X protection when correctly installed.
- Modular construction supports compatible ABB P9M contact blocks and accessories.
Key Features
- ABB P9M modular metal range.
- Three selector positions.
- Maintained/momentary operation.
- Spring-return functionality.
- Short rotary handle.
- Black actuator colour.
- CAM function Z.
- 45° movement between adjacent selector positions.
- Non-illuminated configuration.
- Satin chrome metal body and nut.
- Holder included with the selector-switch operator.
- 22 mm mounting-hole diameter.
- IP66 front protection.
Reliable Selector Control for Industrial Machinery
Three-position selector switches provide a practical manual interface for selecting machine modes, operating states and temporary control commands. The ABB P9MSMZ5N combines maintained and momentary functionality within its three-position arrangement, enabling control schemes that require both retained selection and spring-return operation.
The ABB P9M modular metal range is designed for demanding applications including mining, construction and heavy industry. Its modular architecture allows compatible P9M contact blocks to be selected according to the required electrical circuit, while the metal operator construction and high degree of front protection provide a durable interface for industrial control equipment.
Typical Applications
- Industrial machinery control panels.
- Machine operating-mode selection.
- Maintained and momentary control functions.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control systems.
- Conveyor and material-handling systems.
- OEM machinery and automation systems.
