Why Choose the ABB P9MSMX5N Selector Switch?

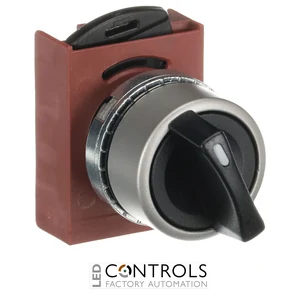

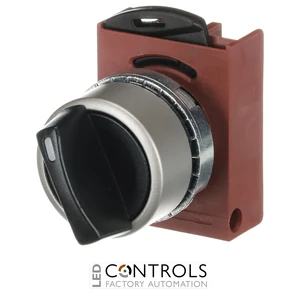

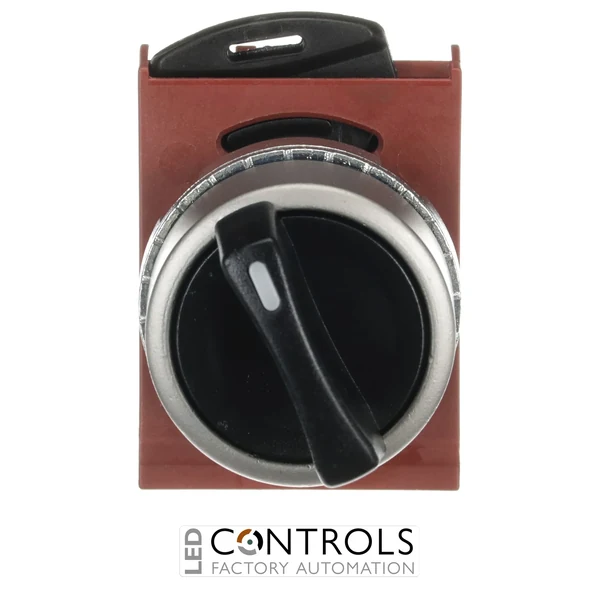

The ABB P9MSMX5N is a robust 4-position selector switch designed for industrial machinery, control panels and operator stations. Part of ABB's P9M Pushbuttons modular metal range, it features a black short rotary handle and satin-chrome metal construction for dependable manual selection in demanding industrial environments.
The P9MSMX5N provides four selector positions with a maintained/momentary operating principle and CAM function X. Its compact short handle provides straightforward rotary control, while ABB's modular architecture allows compatible P9M contact blocks to be configured according to the switching requirements of the application.
Designed for a standard 22 mm mounting hole, the P9MSMX5N is non-illuminated and provides IP66 front protection. The reference includes the satin-chrome metal body and nut together with the holder, making it suitable for mining, construction, heavy industry and general industrial machinery.
Key Advantages
- 4-position selector for multi-position industrial control functions.
- Maintained/momentary operation for flexible operator control.
- CAM function X for the specified four-position switching sequence.
- Black short rotary handle provides compact manual selection.
- Standard 22 mm mounting format for industrial pilot-device installations.
- IP66 front protection for demanding industrial environments.
Key Features
- ABB P9MSMX5N selector switch.
- 4-position operation.
- Maintained/momentary operating principle.
- CAM function X.
- Short rotary handle.
- Black actuator colour.
- Non-illuminated design.
- 22 mm mounting hole.
- Satin-chrome metal body and nut.
- Holder included with the selector.
- IP66 protection at the front.
Four-Position Selection for Industrial Controls
Four-position selector switches provide multiple manually selectable states from a single compact operator. The ABB P9MSMX5N combines four positions with CAM function X and maintained/momentary operation, providing a versatile interface for machinery functions, operating modes and process-control commands.
ABB's P9M modular metal range combines rugged mechanical construction with a flexible contact-block system. The P9MSMX5N can be combined with compatible P9M contact blocks to implement the required electrical switching arrangement while retaining a durable, compact operator interface.
Typical Applications
- Industrial machinery control panels.
- Multi-position operating-mode selection.
- Operator control stations.
- Mining and construction equipment.
- Conveyor and material-handling systems.
- OEM machinery and industrial automation systems.
