Why Choose the ABB P9MSMY0N Selector Switch?

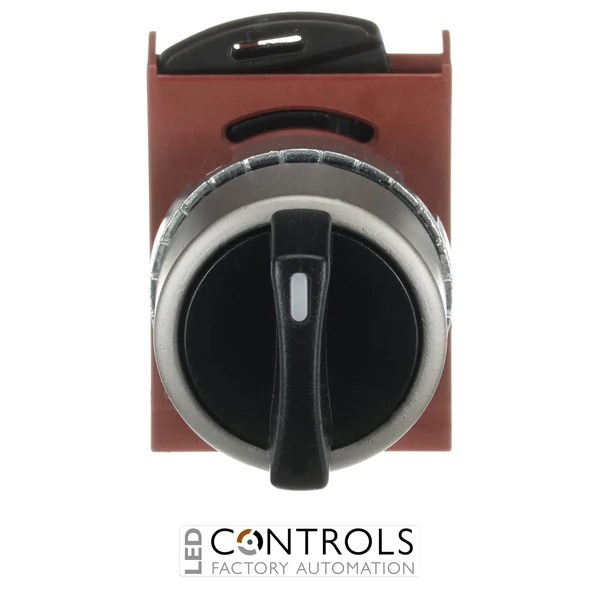

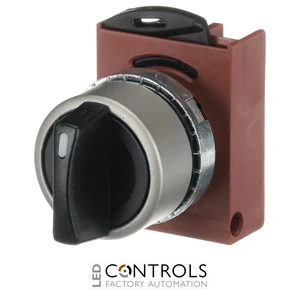

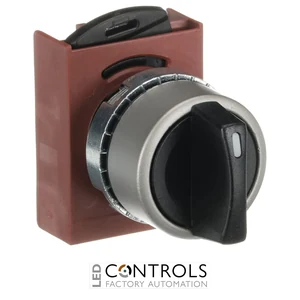

The ABB P9MSMY0N is a robust 5-position maintained selector switch designed for industrial machinery, control panels and operator stations. Part of ABB's P9M Pushbuttons modular metal range, it features a black short rotary handle and satin-chrome metal construction for dependable multi-position manual selection.
The P9MSMY0N provides five maintained positions, labelled through positions A–E in the ABB switching arrangement, with CAM function Y. Each position remains selected until the operator manually moves the handle, making the switch suitable for operating-mode, process and function selection where multiple stable states are required.
Designed for a standard 22 mm mounting hole, the P9MSMY0N is non-illuminated and provides IP66 front protection. The reference includes the satin-chrome metal body and nut together with the holder, providing a rugged modular operator for mining, construction, heavy-industry and general machinery applications.
Key Advantages
- 5-position selector supports multi-function industrial controls.
- Maintained operation keeps the selected position until manually changed.
- CAM function Y provides the specified ABB five-position switching sequence.
- Black short rotary handle provides compact manual selection.
- Standard 22 mm mounting format for industrial pilot-device installations.
- IP66 front protection and NEMA Type 4X protection for demanding environments.
Key Features
- ABB P9MSMY0N selector switch.
- 5 selector positions.
- Maintained / latching operation.
- No spring return.
- CAM function Y.
- Short rotary handle.
- Black actuator colour.
- Non-illuminated design.
- 22 mm mounting hole.
- Satin-chrome metal body and nut with holder.
- IP66 protection at the front.
Maintained Five-Position Selection for Industrial Controls
Five-position selector switches provide several stable operating choices from a single compact operator. The ABB P9MSMY0N uses five maintained positions with 40° spacing and CAM function Y, allowing the handle to remain at the selected setting until deliberately moved to another position.
ABB's P9M modular metal range combines rugged operator construction with a flexible modular contact system. The P9MSMY0N can be used with compatible ABB P9M contact blocks to implement the electrical switching arrangement associated with CAM function Y for machinery and industrial automation applications.
Typical Applications
- Industrial machinery control panels.
- Multi-position operating-mode selection.
- Process and function selection.
- Mining and construction equipment.
- Heavy-industry operator stations.
- OEM machinery and industrial automation systems.
