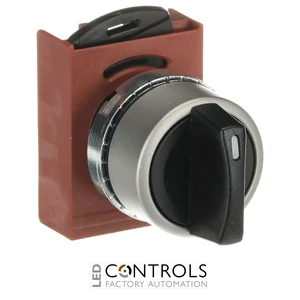

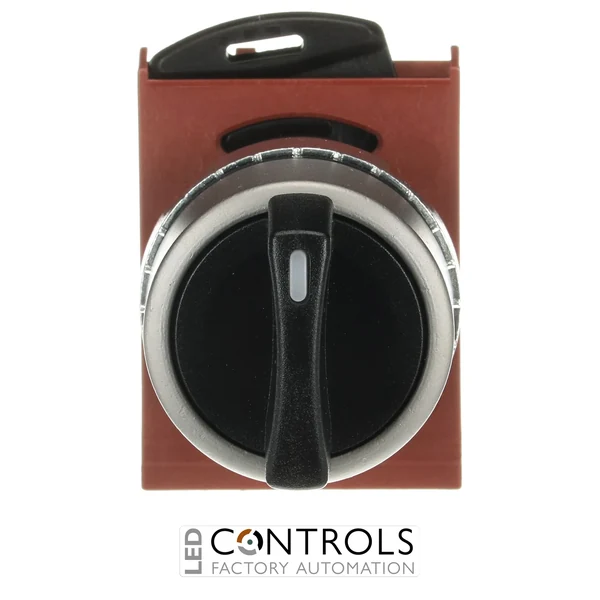

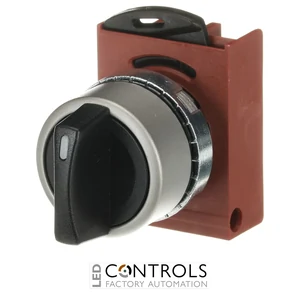

Why Choose the ABB P9MSMW0N Selector Switch?
The ABB P9MSMW0N is a robust five-position maintained selector switch designed for demanding industrial machinery, control panels and automation systems. Part of the ABB P9M modular metal range, it combines a durable satin chrome metal construction with a black short-handle actuator and the flexibility of ABB's modular 22 mm pilot-device platform.
The P9MSMW0N provides five maintained positions, labelled through the operating sequence A–B–C–D–E, with 40° movement between adjacent positions. Its CAM function W defines the switching sequence, while the maintained action ensures the selected position remains mechanically set until the operator deliberately moves the handle.
Designed for 22 mm panel mounting, the P9MSMW0N features a non-illuminated black short handle and IP66 front protection. The reference includes the satin chrome metal body and nut together with the holder, ready for configuration with compatible ABB P9M contact blocks according to the required control circuit.
Key Advantages
- Five maintained selector positions provide versatile multi-mode machine and process control.
- CAM function W provides the specified ABB five-position switching sequence.
- 40° movement between adjacent positions gives clearly separated selector settings.
- Black short-handle actuator provides compact and convenient manual operation.
- Maintained action keeps the selected position set until manually changed.
- Durable satin chrome metal body and nut for demanding industrial environments.
- IP66 front protection supports installation in harsh industrial applications.
- Modular design allows compatible ABB P9M contact blocks to be selected for the required circuit.
Key Features
- ABB P9M modular metal range.
- Five-position selector switch.
- Maintained operating principle.
- Short rotary handle.
- Black actuator colour.
- CAM function W.
- A–B–C–D–E selector positions.
- 40° selector angle between adjacent positions.
- Non-illuminated configuration.
- Satin chrome metal body and nut.
- Holder included with the operator.
- 22 mm mounting-hole diameter.
- IP66 front protection.
- NEMA 4X rated.
Five-Position Control for Industrial Machinery
Five-position selector switches provide a practical operator interface where several distinct machine modes, operating states or process selections must be controlled from one device. The ABB P9MSMW0N offers five maintained positions with 40° spacing, allowing the operator to select a position and leave it mechanically retained until another setting is required.
The P9M modular architecture separates the mechanical operator from the electrical contact arrangement, allowing compatible ABB P9M contact blocks to be configured to suit the control circuit. Combined with its metal construction, IP66 front protection and broad industrial temperature range, the P9MSMW0N is well suited to machinery, mining, construction and heavy-industry control systems.
Typical Applications
- Industrial machinery control panels.
- Multi-mode machine selection.
- Process operating-state selection.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control systems.
- Conveyor and material-handling systems.
- OEM machinery and automation systems.
