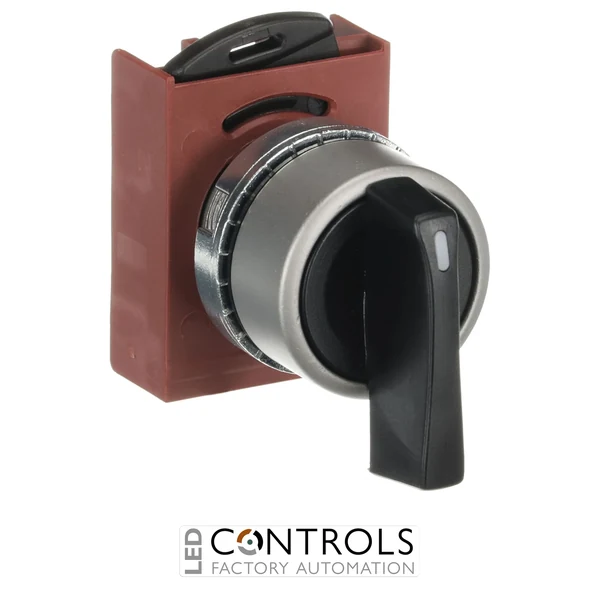

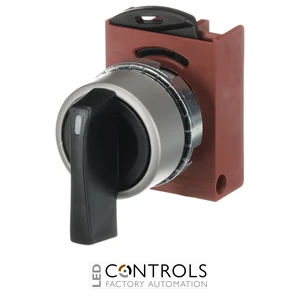

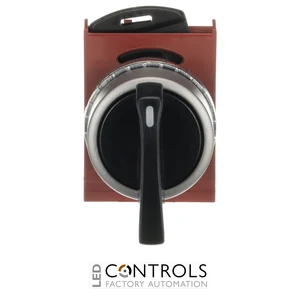

Why Choose the ABB P9MSVZ3N Selector Switch?
The ABB P9MSVZ3N is a robust three-position selector switch designed for industrial machinery, control panels and automation systems. Part of the ABB P9M modular metal range, it combines a durable satin chrome metal body with a black long-handle actuator for dependable operator control in demanding environments.
The P9MSVZ3N uses CAM function Z and provides three operating positions identified as A–B–C, with 45° movement between adjacent positions. Its long rotary handle provides a prominent manual interface, while the selector incorporates spring-return functionality for momentary control operation.
Designed for standard 22 mm pilot-device mounting, the P9MSVZ3N provides IP66 front protection and is non-illuminated. Each reference includes the satin chrome metal body and nut together with the holder, allowing compatible ABB P9M contact blocks to be selected according to the electrical switching arrangement required by the application.
Key Advantages
- Three-position selector operation for versatile industrial machine and process control.
- Long black rotary handle provides a prominent and convenient operator interface.
- CAM function Z defines the three-position switching arrangement.
- 45° movement between adjacent positions provides clearly differentiated selector settings.
- Spring-return functionality supports momentary operator commands.
- Durable satin chrome metal body and nut for demanding industrial environments.
- IP66 front protection supports installation in harsh machinery and control-panel environments.
- Modular design allows compatible ABB P9M contact blocks to be selected for the required control circuit.
Key Features
- ABB P9M modular metal range.
- Three-position selector switch.
- A–B–C operating positions.
- Spring-return functionality.
- Long rotary handle.
- Black actuator colour.
- CAM function Z.
- 45° movement between adjacent positions.
- Non-illuminated configuration.
- Satin chrome metal body and nut.
- Holder included with the selector-switch operator.
- 22 mm mounting-hole diameter.
- IP66 front protection.
Three-Position Control for Industrial Machinery
Three-position selector switches provide a practical manual interface for machine-direction, operating-mode and process-control commands. The ABB P9MSVZ3N provides A, B and C positions separated by 45°, with spring-return functionality enabling temporary commands where the selector is required to return after operator input.
ABB's P9M modular architecture separates the mechanical operator from the electrical contact arrangement. Compatible P9B contact blocks can therefore be selected to create the required circuit configuration, while the long handle, metal construction and IP66 front protection provide a durable operator interface for industrial machinery and automation equipment.
Typical Applications
- Industrial machinery control panels.
- Three-position machine-control functions.
- Forward/neutral/reverse control schemes.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control systems.
- Conveyor and material-handling systems.
- OEM machinery and automation systems.
