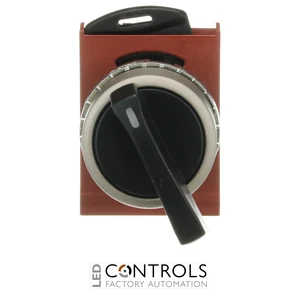

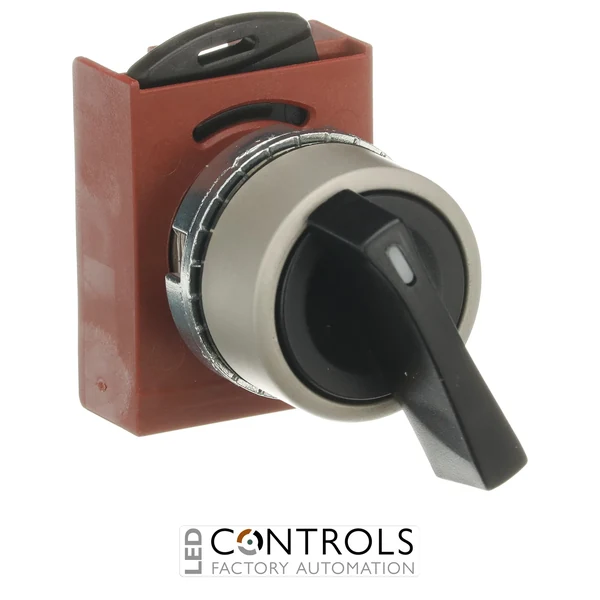

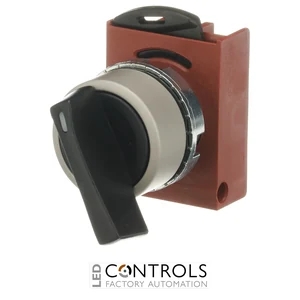

Why Choose the ABB P9MSVX0N Selector Switch?
The ABB P9MSVX0N is a robust four-position maintained selector switch designed for industrial machinery, control panels and automation systems. Part of the ABB P9M modular metal range, it combines a durable satin chrome metal body with a black long rotary handle for dependable operator control in demanding industrial environments.
The P9MSVX0N provides four maintained positions, identified as A–B–C–D, with 45° movement between adjacent positions. Its CAM function X defines the switching sequence, while the latching action ensures that the selected position remains mechanically set until the operator deliberately moves the handle.
Designed for standard 22 mm pilot-device mounting, the P9MSVX0N is non-illuminated and provides IP66 front protection together with a NEMA 4X rating. Each reference includes the satin chrome metal body and nut together with the holder, ready for configuration with compatible ABB P9M contact blocks.
Key Advantages
- Four maintained selector positions provide flexible multi-mode machine and process control.
- CAM function X provides the specified ABB four-position switching arrangement.
- 45° movement between adjacent positions gives clearly differentiated selector settings.
- Black long rotary handle provides a prominent and convenient operator interface.
- Maintained latching action keeps the selected position set until manually changed.
- Durable satin chrome metal body and nut suit demanding industrial installations.
- IP66 and NEMA 4X protection support use in harsh machinery and control-panel environments.
- Modular construction allows compatible ABB contact blocks to be selected for the required control circuit.
Key Features
- ABB P9M modular metal range.
- Four-position selector switch.
- A–B–C–D selector positions.
- Maintained / latching operating principle.
- No spring return.
- Long rotary handle.
- Black actuator colour.
- CAM function X.
- 45° movement between adjacent positions.
- Non-illuminated configuration.
- Satin chrome metal body and nut.
- Holder included with the selector-switch operator.
- 22 mm mounting-hole diameter.
- IP66 front protection and NEMA 4X classification.
Four-Position Control for Industrial Machinery
Four-position selector switches provide a practical operator interface where several distinct machine modes, operating states or process selections must be controlled from one device. The ABB P9MSVX0N offers four maintained A–B–C–D positions with 45° spacing, allowing the operator to select a position and leave it mechanically retained until another setting is required.
The P9M modular architecture separates the mechanical operator from the electrical contact arrangement. Compatible ABB P9B contact blocks can therefore be selected to implement the required CAM function X circuit, while the long handle, rugged metal construction and IP66 front protection make the P9MSVX0N suitable for machinery, mining, construction and heavy-industry applications.
Typical Applications
- Industrial machinery control panels.
- Four-mode machine selection.
- Process operating-state selection.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control systems.
- Conveyor and material-handling systems.
- OEM machinery and automation systems.
