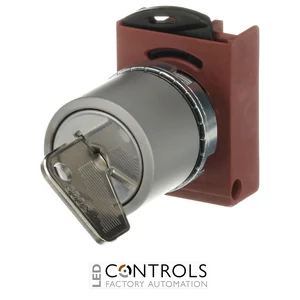

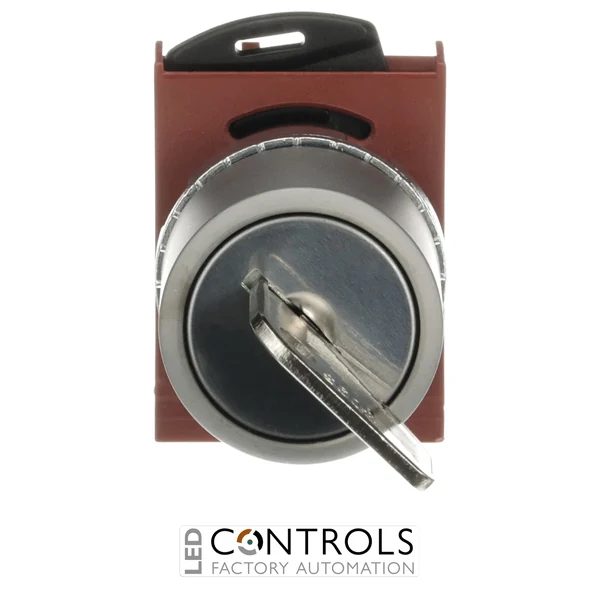

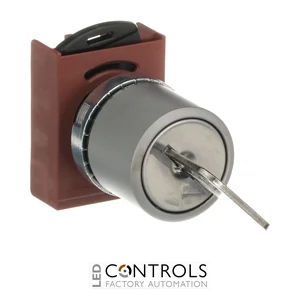

Why Choose the ABB P9MSCD5A95 Key-Operated Selector Switch?
The ABB P9MSCD5A95 is a robust two-position momentary key-operated selector switch designed for controlled operation of industrial machinery, control panels and automation systems. Part of the ABB P9M modular metal range, it combines a satin chrome metal operator body with a black key-operated actuator and metal key for demanding industrial environments.
The P9MSCD5A95 uses CAM function D and provides 90° movement between its two operating positions. Its spring-return operating principle makes the selector momentary rather than latching, while key code 95 provides controlled access to the operating function and permits the key to be removed in the designated A position.
Designed for standard 22 mm panel mounting, the P9MSCD5A95 is non-illuminated and provides IP66 front protection together with a NEMA 4X rating. The reference includes the satin chrome metal body and nut together with the holder and two keys, providing a modular operator ready for use with compatible ABB P9M contact blocks.
Key Advantages
- Key-operated control helps restrict machine or process functions to authorised personnel.
- Two-position momentary operation provides spring-return control for temporary commands.
- Key code 95 provides a defined key system for controlled operation.
- Key removable in position A supports controlled access and operating-state management.
- CAM function D defines the two-position contact operating sequence.
- 90° selector movement provides clear separation between operating positions.
- Durable satin chrome metal body and nut suit demanding industrial installations.
- IP66 and NEMA 4X protection support use in harsh industrial environments.
Key Features
- ABB P9M modular metal range.
- Key-operated selector switch.
- Two operating positions.
- Momentary / spring-return operation.
- Key code 95.
- Metal key.
- Black actuator.
- Key removable in position A.
- CAM function D.
- 90° movement between operating positions.
- Non-illuminated configuration.
- Satin chrome metal body and nut.
- Holder and two keys included.
- 22 mm mounting-hole diameter.
- IP66 front protection.
Controlled Key-Operated Selection for Industrial Machinery
Key-operated selector switches are useful where access to a machine command, operating mode or control function must be restricted. The ABB P9MSCD5A95 combines two-position spring-return operation with key code 95 and controlled key removal in position A, providing a deliberate operator interface for machinery and process-control systems.
The ABB P9M modular architecture separates the mechanical operator from the electrical contact arrangement, allowing compatible P9M contact blocks to be selected according to the required control circuit. Its metal construction, IP66 front protection and industrial operating-temperature range make the P9MSCD5A95 particularly suitable for mining, construction, manufacturing and heavy-industry installations.
Typical Applications
- Industrial machinery control panels.
- Restricted-access machine commands.
- Authorised operator-control functions.
- Machine enable and control circuits.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control systems.
- OEM machinery and automation systems.
