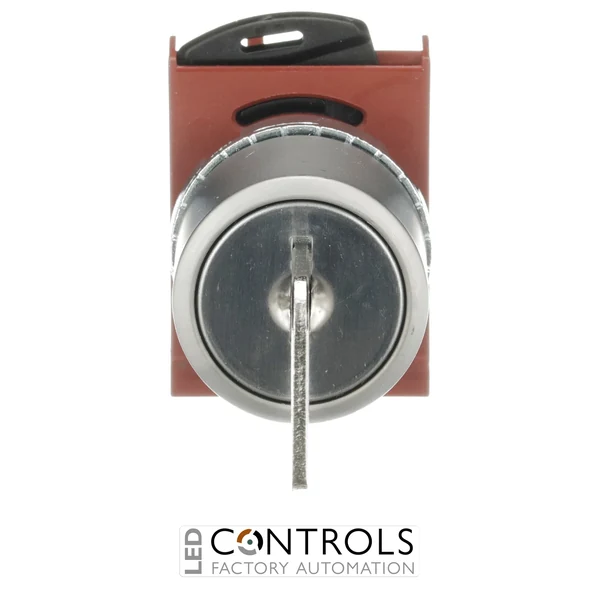

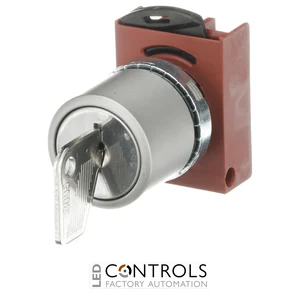

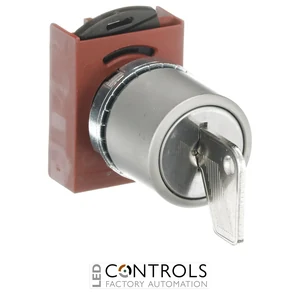

Why Choose the ABB P9MSCZ0C95 Key-Operated Selector Switch?
The ABB P9MSCZ0C95 is a robust 3-position maintained key-operated selector switch designed for industrial machinery, control panels and operator stations. Part of ABB's P9M modular metal range, it combines controlled key operation with rugged satin-chrome metal construction for mining, construction and heavy-industry applications.
The P9MSCZ0C95 uses ABB key code 95, a metal-head key and CAM function Z. Its three positions are arranged A–B–C with 45° spacing, and the key can be removed in position B only, allowing the centre position to be secured by withdrawing the key.
Designed for a standard 22 mm mounting hole, the P9MSCZ0C95 is non-illuminated and provides IP66 front protection with a NEMA Type 4X rating. Each reference includes the satin-chrome metal body and nut together with the holder and two keys, providing a complete operator assembly for integration with compatible ABB P9M contact blocks.
Key Advantages
- 3-position maintained operation for stable multi-position selection.
- Key-operated control helps restrict operation to authorised personnel.
- Key code 95 with metal-head keys.
- Key removable in position B only for controlled centre-position access.
- CAM function Z with A–B–C positions at 45° intervals.
- Standard 22 mm mounting format for industrial pilot-device installations.
- IP66 front protection and NEMA Type 4X rating for demanding environments.
Key Features
- ABB P9MSCZ0C95 key-operated selector switch.
- 3 selector positions.
- Maintained / latching operation.
- CAM function Z.
- A–B–C position arrangement.
- 45° position spacing.
- Key code 95.
- Key removable in position B only.
- Black actuator with metal-head key.
- Non-illuminated design.
- Satin-chrome metal body and nut with holder.
- Two keys included.
Controlled Three-Position Selection for Industrial Machinery
A key-operated selector switch helps control access to machinery and process functions by requiring the appropriate key for operation. The ABB P9MSCZ0C95 provides three maintained A–B–C positions at 45° intervals and permits key removal only in position B, allowing the centre state to remain selected after the key has been withdrawn.
ABB's P9M modular metal range combines rugged operator construction with a flexible modular contact-block system. The P9MSCZ0C95 uses CAM function Z and can be integrated with compatible ABB P9M contact blocks to create the required electrical switching arrangement for machinery, control stations and industrial automation systems.
Typical Applications
- Industrial machinery control panels.
- Authorised operating-mode selection.
- Three-position machine function selection.
- Mining and construction equipment.
- Heavy-industry operator stations.
- OEM machinery and industrial automation systems.
