Why Choose the ABB P9MSCZ5A95 Key-Operated Selector Switch?

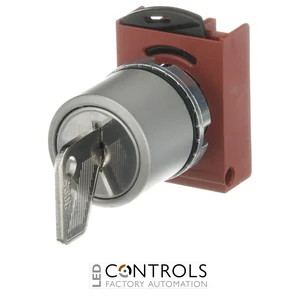

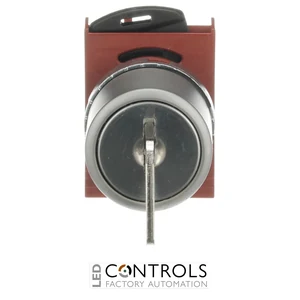

The ABB P9MSCZ5A95 is a robust 3-position key-operated selector switch designed for secure operator control in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184461R9006, it forms part of the ABB P9M Pushbuttons modular metal range and combines a satin chrome metal body with a durable metal key actuator.
This non-illuminated selector switch uses ABB's Z cam function and provides three operating positions, identified as A, B and C with 45° spacing. The key can be removed in the A position only, helping restrict changes to machine or process settings while providing controlled access for authorised operators.
Designed for 22 mm industrial control applications, the P9MSCZ5A95 provides IP66 front protection and NEMA Type 4X protection for demanding industrial environments. The selector is supplied with its satin chrome metal body and nut together with the holder and two keys, providing a complete modular operator assembly for use with compatible ABB P9 contact blocks.
Key Advantages
- Secure 3-position key-operated selector switch for industrial control applications.
- Part of the ABB P9M Pushbuttons modular metal range.
- Key removable in the A position only for controlled operating-mode selection.
- Key code 95 with durable metal key construction.
- Rugged satin chrome metal body for demanding industrial environments.
- IP66 front and NEMA Type 4X protection for robust panel installations.
Key Features
- ABB P9M Pushbuttons series.
- 3-position key-operated design.
- Z cam function.
- 45° position spacing between A, B and C.
- Key code 95.
- Key removable in A position only.
- Metal key construction.
- Non-illuminated operator design.
- Satin chrome metal body and fixing nut.
- Supplied with holder and two keys.
- 22 mm panel-mounting format.
- IP66 front protection rating.
Secure Multi-Position Control for Industrial Machinery
Key-operated selector switches provide a controlled method of selecting machine functions, operating modes or process states where access needs to be restricted to personnel holding the appropriate key. The three-position configuration of the P9MSCZ5A95 provides multiple selectable control states from a single industrial operator, while its key-removal arrangement helps control access to changes in machine operation.
The ABB P9M modular metal range is designed for demanding industrial control applications where robust construction and flexible configuration are required. Its modular architecture allows the selector operator to be combined with compatible ABB P9 contact blocks to create an electrical switching arrangement suited to the requirements of the machine or control system.
Typical Applications
- Industrial control panels and operator stations.
- Restricted machine mode selection.
- Authorised operator control systems.
- Manufacturing and production machinery.
- Mining, construction and heavy industrial equipment.
- OEM machinery and automation systems.
