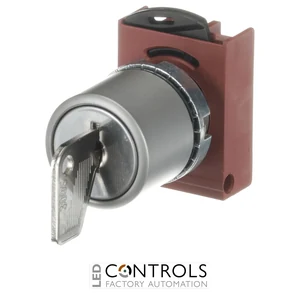

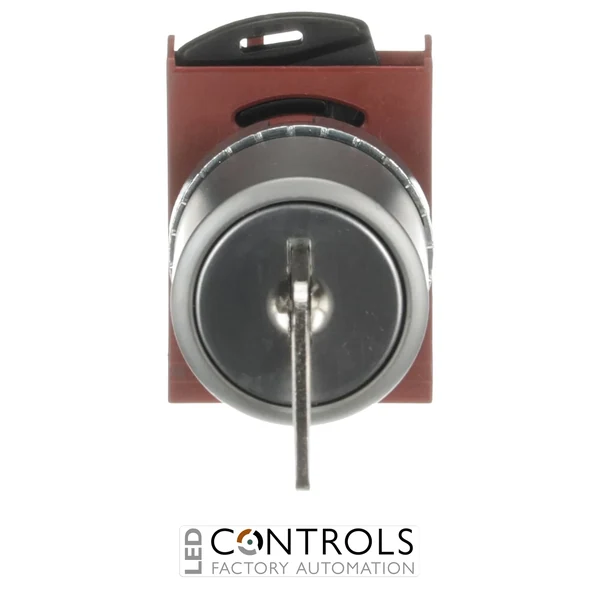

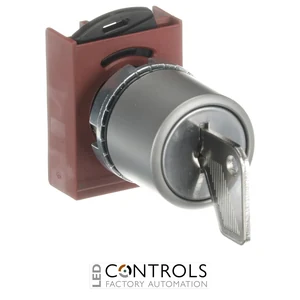

Why Choose the ABB P9MSCZ3C95 Key Operated Selector Switch?
The ABB P9MSCZ3C95 is a robust 3-position key operated selector switch designed for industrial machinery, control panels and automation systems. As part of the ABB P9M modular metal pushbutton range, it combines momentary selector operation with durable metal construction for demanding industrial applications.
This selector switch uses a spring-return / momentary operating principle with three selector positions. The P9MSCZ3C95 uses key code 95, a metal key and CAM function Z. The selector provides spring return from the outer positions, while the key can be removed in position B only, helping control access to machinery and operating functions.
The P9MSCZ3C95 is non-illuminated and features a black control element with a satin chrome metal body and nut. Designed for the standard 22 mm mounting format, it provides IP66 front-side protection and NEMA 4X protection, making it suitable for machinery, production equipment and demanding industrial operator stations.
Key Advantages
- Industrial 3-position key operated selector switch for controlled machine functions.
- Momentary / spring-return operation for applications requiring automatic return from the outer positions.
- Key can be removed in position B only.
- Key code 95 with metal key construction.
- CAM function Z for three-position selector operation.
- Robust satin chrome metal body and nut for demanding environments.
- IP66 front-side protection for reliable industrial panel operation.
- Standard 22 mm mounting format for operator panels and control stations.
Key Features
- ABB P9M modular metal range.
- 3-position key operated selector switch.
- Momentary / spring-return operating principle.
- CAM function Z.
- Three positions: A, B and C.
- Key code 95.
- Key removable in position B only.
- 2 keys included.
- Metal key head.
- Black control element.
- Non-illuminated design.
- Satin chrome metal body and nut supplied with holder.
- 22 mm mounting hole diameter.
- IP66 front-side degree of protection.
- NEMA 4X protection classification.
Secure Momentary Control for Industrial Machinery
Key operated selector switches provide a practical method of restricting selected machine and process functions to personnel with the appropriate key. The ABB P9MSCZ3C95 combines three-position operation with spring return from the outer positions and key removal in position B only, making it suitable for controlled machine commands, mode selection and other operator functions requiring momentary actuation.
The ABB P9M modular metal range is designed for demanding industrial installations. Its standard 22 mm mounting format simplifies integration into compatible operator stations and control panels, while the satin chrome metal construction and IP66 front protection support dependable operation in challenging industrial environments.
Typical Applications
- Industrial machinery control panels.
- Momentary machine command selection.
- Authorised operating controls.
- Maintenance and service functions.
- Production and manufacturing equipment.
- Material handling and processing machinery.
- Industrial operator stations.
- OEM automation panels and machine building.
