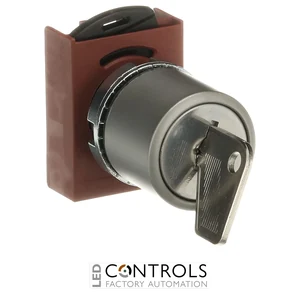

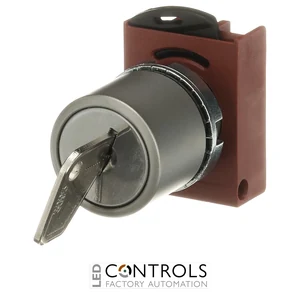

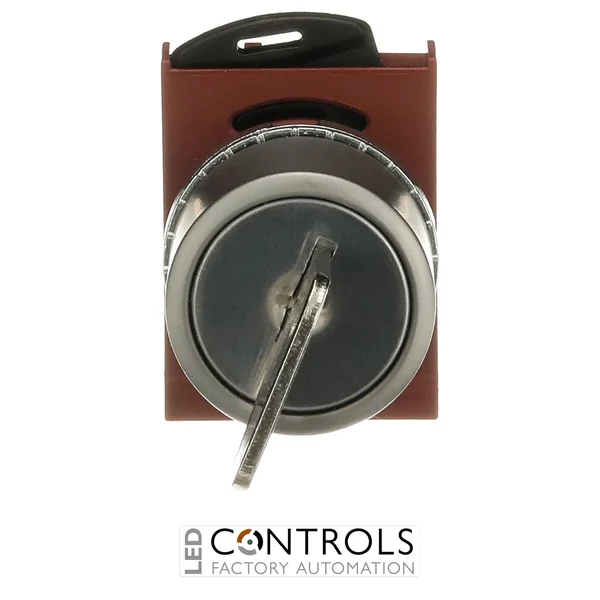

Why Choose the ABB P9MSCX0A95 Key Operated Selector Switch?
The ABB P9MSCX0A95 is a robust 4-position key operated selector switch designed for controlled operation of industrial machinery, control panels and automation systems. As part of the ABB P9M modular metal pushbutton range, it combines maintained selector operation with durable metal construction for demanding industrial applications.
This selector switch features a maintained operating principle, allowing the selected position to remain engaged until deliberately changed by the operator. The P9MSCX0A95 uses key code 95, a metal key head and CAM function X, with four selector positions identified as A, B, C and D.
For this specific configuration, the key can be removed in position A only. The P9MSCX0A95 is non-illuminated and features a black control element with a satin chrome metal body and nut together with the holder. Designed for the standard 22 mm mounting format, it provides IP66 front-side protection for reliable use in demanding industrial environments.
Key Advantages
- Industrial 4-position key operated selector switch for controlled machine functions.
- Maintained switching action keeps the selected operating position engaged.
- Key can be removed in position A only.
- Key code 95 with metal key head.
- CAM function X for four-position selector operation.
- Supplied with 2 keys for practical installation and operation.
- Robust satin chrome metal body and nut for demanding environments.
- IP66 front-side protection for reliable industrial panel operation.
- Standard 22 mm mounting format for industrial operator panels.
Key Features
- ABB P9M modular metal range.
- 4-position key operated selector switch.
- Maintained operating principle.
- CAM function X.
- Four positions: A, B, C and D.
- 45° switching increments between adjacent positions.
- Key code 95.
- Metal key removable in position A only.
- 2 keys included.
- Black control element.
- Non-illuminated design.
- Satin chrome metal body and nut with holder.
- 22 mm mounting hole diameter.
- IP66 front-side degree of protection.
Secure Four-Position Control for Industrial Machinery
Key operated selector switches provide a practical method of restricting machine and process functions to personnel with the appropriate key. The ABB P9MSCX0A95 combines four-position maintained operation with CAM function X and key removal restricted to position A, making it suitable for applications requiring several controlled operating states or machine modes from a single selector.
The ABB P9M modular metal range is designed for demanding industrial installations, including mining, construction and heavy-industry applications. Its standard 22 mm mounting format simplifies integration into compatible operator stations and control panels, while the satin chrome metal construction and IP66 front protection support dependable service in challenging environments.
Typical Applications
- Industrial machinery control panels.
- Four-position machine mode selection.
- Authorised operating-mode control.
- Maintenance and service selection functions.
- Production and manufacturing equipment.
- Mining and heavy-industry machinery.
- Construction equipment control systems.
- OEM automation panels and operator stations.
