Why Choose the ABB P9MSCX0Z95 Key-Operated Selector Switch?

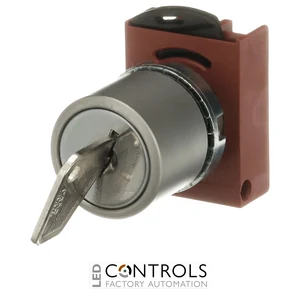

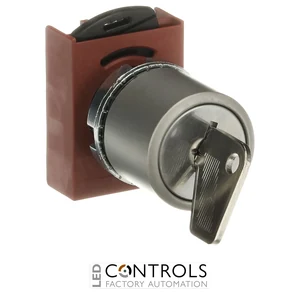

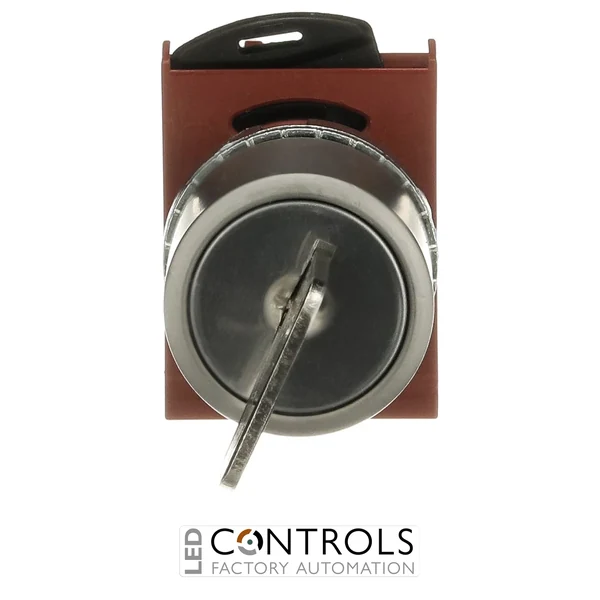

The ABB P9MSCX0Z95 is a robust 4-position maintained key-operated selector switch designed for secure operator control in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184482R9006, it forms part of the ABB P9M Pushbuttons modular metal range and combines a satin chrome metal body with a durable metal key actuator.
This non-illuminated selector switch uses ABB's X cam function and provides four maintained operating positions, identified as A, B, C and D with 45° spacing. The key can be removed in all positions, providing flexible controlled access while allowing the selected operating state to remain mechanically maintained until deliberately changed.
Designed for 22 mm industrial control applications, the P9MSCX0Z95 features a rugged modular metal construction suitable for demanding industrial environments. The selector is supplied with its satin chrome metal body and nut together with the holder and two keys, providing a complete operator assembly for use with compatible ABB P9 contact blocks.
Key Advantages
- Secure 4-position maintained key-operated selector switch for industrial control applications.
- Part of the ABB P9M Pushbuttons modular metal range.
- Key removable in all four positions for flexible controlled operation.
- Key code 95 with durable metal key construction.
- X cam function provides defined multi-position switching behaviour.
- Rugged satin chrome metal construction for demanding industrial environments.
Key Features
- ABB P9M Pushbuttons series.
- 4-position maintained operation.
- A, B, C and D selector positions.
- 45° position spacing.
- X cam function.
- Key code 95.
- Key removable in all positions.
- Metal key construction.
- Non-illuminated operator design.
- Satin chrome metal body and fixing nut.
- Supplied with holder and two keys.
- 22 mm panel-mounting format.
Secure Multi-Position Control for Industrial Machinery
Key-operated selector switches provide a controlled method of selecting machine functions, operating modes or process states where access needs to be restricted to personnel holding the appropriate key. The four-position configuration of the P9MSCX0Z95 provides multiple selectable control states from a single operator, while the maintained action keeps the chosen position selected until it is deliberately changed.
The ABB P9M modular metal range is designed for industrial control applications requiring robust construction and flexible configuration. Its modular architecture allows the selector operator to be combined with compatible ABB P9 contact blocks, while the X cam arrangement supports defined contact operation across the four A, B, C and D selector positions.
Typical Applications
- Industrial control panels and operator stations.
- Restricted multi-mode machine selection.
- Authorised operator control systems.
- Manufacturing and production machinery.
- Process equipment and heavy industrial machinery.
- OEM machinery and automation systems.
