Why Choose the ABB P9MPLRGD Illuminated Pushbutton?

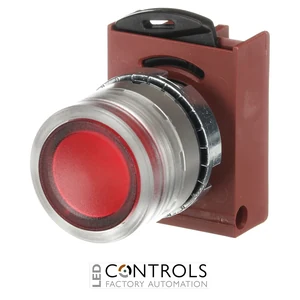

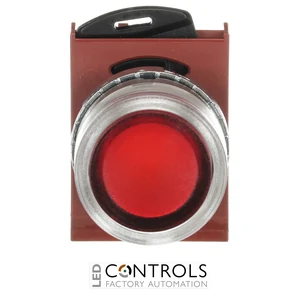

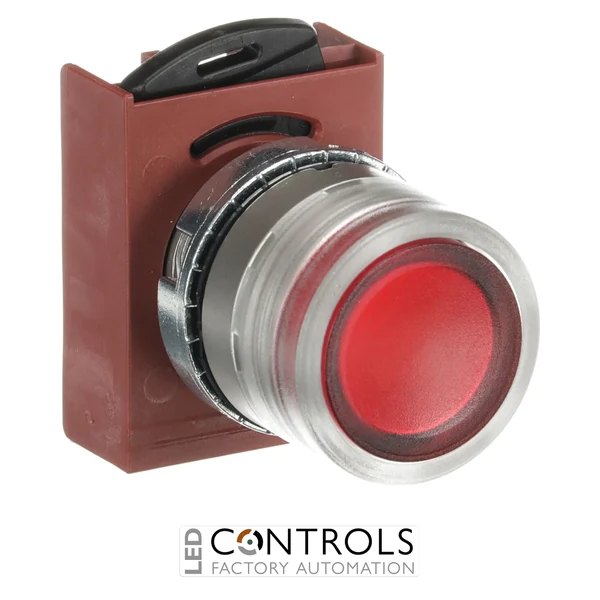

The ABB P9MPLRGD is a robust momentary illuminated pushbutton designed for operator control and signalling in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184491R9101, it forms part of the ABB P9M Pushbuttons modular metal range and features a red flush plastic lens with a satin chrome metal body.
This pushbutton combines momentary spring-return operation with an illuminated red operator, providing clear visual identification and positive manual control. Its modular construction allows compatible ABB P9 contact blocks and an appropriate illumination block to be selected according to the electrical requirements of the control circuit.
Designed for 22 mm industrial control applications, the P9MPLRGD provides IP66 front protection and is suitable for demanding industrial environments. The operator is supplied with the satin chrome metal body and nut together with the holder, providing a practical modular solution for machinery, operator stations and industrial control panels.
Key Advantages
- Robust momentary illuminated pushbutton for industrial control and signalling applications.
- Part of the ABB P9M Pushbuttons modular metal range.
- Red flush plastic lens provides clear operator identification.
- Momentary spring-return action for temporary machine commands.
- Durable satin chrome metal construction for demanding industrial environments.
- IP66 front protection supports installation in challenging operating conditions.
Key Features
- ABB P9M Pushbuttons series.
- Momentary spring-return operation.
- Illuminated red operator.
- Flush pushbutton design.
- Durable plastic lens.
- Satin chrome metal body and fixing nut.
- Supplied with holder for modular assembly.
- 22 mm panel-mounting format.
- IP66 front protection rating.
- Suitable for modular configuration with compatible ABB P9 contact and illumination blocks.
Reliable Illuminated Control for Industrial Machinery
Illuminated momentary pushbuttons combine manual control with visual signalling in a single panel-mounted operator. When pressed, the P9MPLRGD provides a temporary control input and returns after release, while its red illuminated lens can provide clear visual indication when combined with the appropriate illumination components.
The ABB P9M modular metal range is designed for industrial applications including manufacturing, mining, construction and heavy industry. Its modular architecture allows the pushbutton operator to be combined with compatible contact and illumination blocks, enabling the electrical switching and indication arrangement to be configured for the requirements of the machine or control system.
Typical Applications
- Industrial control panels and operator stations.
- Machine start, stop and control commands where appropriate to the circuit design.
- Status and process indication controls.
- Manufacturing and production machinery.
- Mining, construction and heavy industrial equipment.
- OEM machinery and automation systems.
