Why Choose the ABB P9MPLVGD Illuminated Pushbutton?

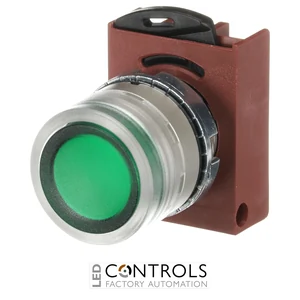

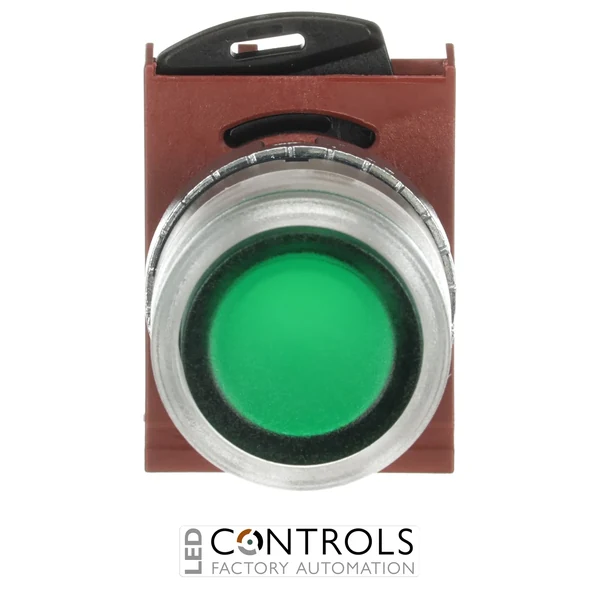

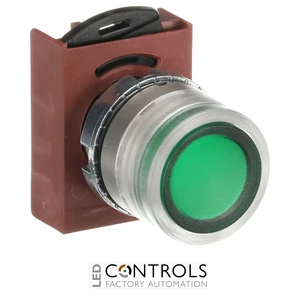

The ABB P9MPLVGD is a green illuminated momentary pushbutton from ABB's P9M modular metal pilot-device range, designed for industrial machinery, control panels and automation systems. Its flush green plastic lens combines operator control and visual indication in a compact device suitable for demanding industrial installations.
The P9MPLVGD uses a momentary spring-return action, returning to its normal position after the operator releases the button. The illuminated design enables the green actuator to provide clear visual status indication when combined with the appropriate compatible illumination components, while the flush profile helps create a clean and practical control-panel interface.
Each P9MPLVGD reference includes the satin chrome metal body and nut together with the holder. Designed around ABB's modular 22 mm pilot-device platform, the operator can be combined with compatible ABB P9M contact and illumination components to create the electrical and signalling arrangement required by the application.
Key Advantages
- Green illuminated actuator combines manual control with clear visual status indication.
- Momentary spring-return operation is ideal for start, command, acknowledgement and control functions.
- Flush actuator profile provides a neat, low-profile operator interface.
- Green plastic lens provides durable colour identification and supports illuminated signalling.
- Rugged satin chrome metal body and nut suit demanding industrial installations.
- Holder included simplifies integration into the ABB modular pilot-device system.
- 22 mm mounting format suits widely used industrial control-panel layouts.
- Modular construction allows contact and illumination components to be selected according to the required control circuit.
Key Features
- ABB P9M modular metal range.
- Illuminated momentary pushbutton.
- Flush actuator.
- Green actuator/lens.
- Plastic lens type.
- Momentary spring-return operation.
- Satin chrome metal body.
- Metal mounting nut.
- Holder included.
- 22 mm pilot-device mounting format.
- Designed for modular configuration with compatible ABB P9M components.
- Suitable for machinery, construction, mining and heavy-industrial control applications.
Illuminated Momentary Control for Industrial Panels
Illuminated pushbuttons combine a manual control function with visual signalling at the same operator position. The ABB P9MPLVGD uses a green flush plastic lens and momentary spring-return action, making it well suited to machine commands where the actuator should return automatically after each operation while also providing a clearly identifiable illuminated interface.
ABB's P9M modular architecture allows the operator, contact blocks and illumination components to be configured according to the control-system requirements. This modular approach simplifies the creation and maintenance of industrial control stations while the P9MPLVGD's metal construction and compact dimensions support dependable use on machinery and production equipment.
Typical Applications
- Industrial machinery control panels.
- Start and machine-cycle commands.
- Operator acknowledgement functions.
- Process-control stations.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control panels.
- Conveyor and material-handling systems.
- OEM machinery and automation systems.
