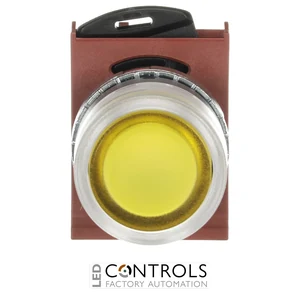

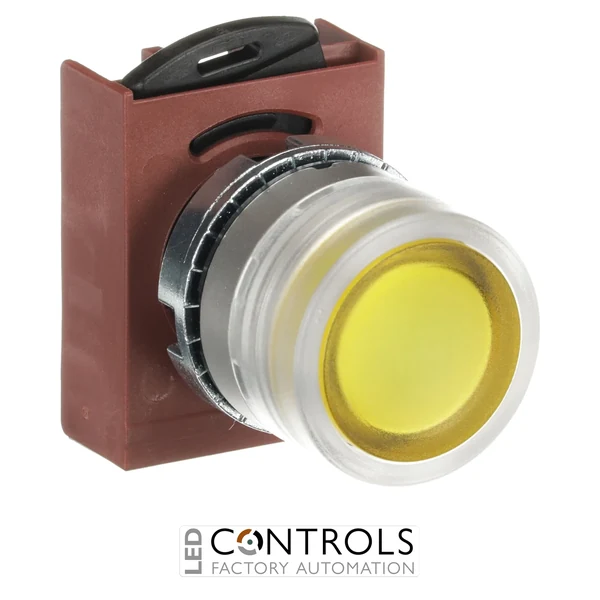

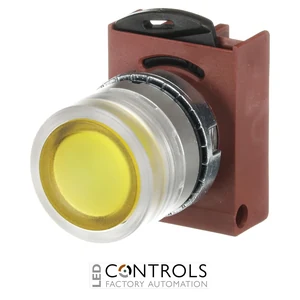

Why Choose the ABB P9MPLGGD Illuminated Pushbutton?
The ABB P9MPLGGD is a yellow illuminated momentary pushbutton from ABB's P9M modular metal pilot-device range, designed for industrial machinery, control panels and automation systems. Its flush yellow actuator combines operator control and visual indication in a compact, robust device for demanding industrial environments.
The P9MPLGGD uses a momentary spring-return action, automatically returning to its normal position when released. Its flush plastic lens is yellow and suitable for illumination, providing clear visual identification for machine commands, acknowledgement functions and process-control applications.
Designed for a standard 22 mm mounting hole, the P9MPLGGD features a satin chrome metal body and chrome-coloured metal front ring. ABB supplies the operator together with its holder, providing a modular platform that can be combined with compatible P9M contact and illumination components according to the required control circuit.
Key Advantages
- Yellow illuminated actuator combines operator control with clear visual signalling.
- Momentary spring-return operation automatically restores the actuator after each command.
- Flush actuator design creates a neat, low-profile control-panel interface.
- Plastic lens construction provides the illuminated yellow operating surface.
- IP66 front protection supports installation in demanding industrial environments.
- Rugged satin chrome metal construction is designed for mining, construction and heavy-industry applications.
- 22 mm mounting integrates easily into standard industrial pilot-device layouts.
- Modular construction allows compatible ABB contact and illumination components to be selected for the application.
Key Features
- ABB P9M modular metal range.
- Illuminated momentary pushbutton.
- Flush pushbutton actuator.
- Yellow actuator/lens.
- Plastic lens type.
- Round lens.
- Momentary spring-return operation.
- One command position.
- Non-latching switching function.
- Satin chrome metal body.
- Chrome-coloured metal front ring.
- Holder included.
- 22 mm mounting-hole diameter.
- IP66 front protection.
Illuminated Momentary Control for Industrial Panels
Illuminated pushbuttons combine manual command input and visual signalling at a single operator position. The ABB P9MPLGGD provides a yellow flush lens with momentary spring-return operation, making it suitable for applications where the actuator should automatically return after each command while remaining clearly identifiable to the operator.
ABB's P9M modular architecture allows the operator to be configured with compatible contact and illumination components according to the control-system requirements. The combination of modular construction, IP66 front protection and a rugged metal body makes the P9MPLGGD well suited to machinery, mining, construction and heavy-industrial control installations.
Typical Applications
- Industrial machinery control panels.
- Operator acknowledgement commands.
- Machine-cycle and process commands.
- Warning-related operator functions.
- Manufacturing and production equipment.
- Mining and heavy-industry machinery.
- Construction equipment control panels.
- Conveyor and material-handling systems.
- OEM machinery and industrial automation systems.
