Why Choose the ABB P9MPLBGD Illuminated Pushbutton?

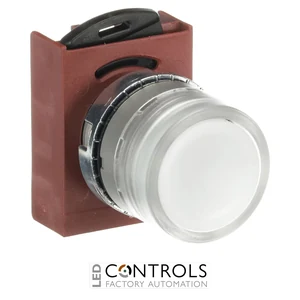

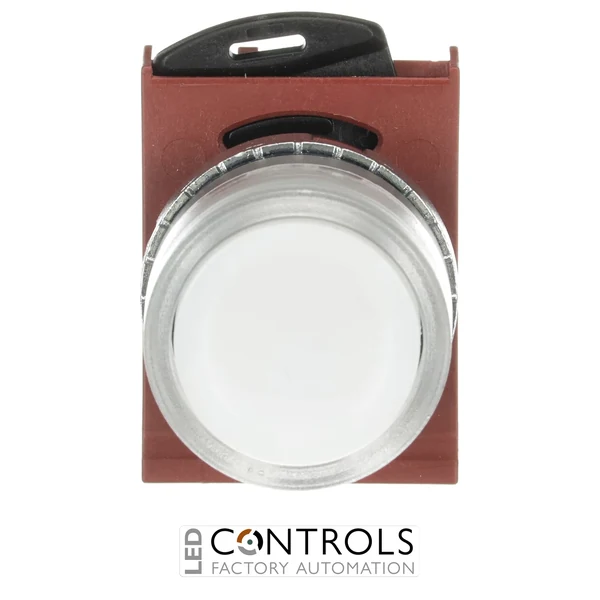

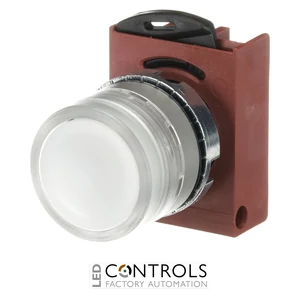

The ABB P9MPLBGD is a robust momentary illuminated pushbutton designed for operator control and signalling in industrial machinery, control panels and automation systems. Identified by ABB order code 1SFA184497R9105, it forms part of the ABB P9M Pushbuttons modular metal range and features a white flush plastic lens with a satin chrome metal body.
This pushbutton combines momentary spring-return operation with an illuminable white operator, providing clear visual identification and positive manual control. Its modular construction allows compatible ABB P9 contact blocks and a suitable illumination module to be selected according to the electrical switching and indication requirements of the control circuit.
Designed for 22 mm industrial control applications, the P9MPLBGD provides IP66 front protection and operates across a broad industrial temperature range. The reference includes the satin chrome metal body and nut together with the holder, providing a modular operator assembly ready for configuration with compatible ABB P9 components.
Key Advantages
- Robust momentary illuminated pushbutton for industrial control and signalling applications.
- Part of the ABB P9M Pushbuttons modular metal range.
- White flush plastic lens provides clear operator identification.
- Momentary spring-return action is ideal for temporary machine commands.
- Durable satin chrome metal construction for demanding industrial environments.
- IP66 front protection supports installation in challenging operating conditions.
Key Features
- ABB P9M Pushbuttons series.
- Momentary spring-return operation.
- White illuminable operator.
- Flush pushbutton design.
- Plastic lens type.
- Satin chrome metal body and fixing nut.
- Supplied with holder for modular assembly.
- 22 mm panel-mounting format.
- IP66 front protection rating.
- Suitable for configuration with compatible ABB P9 contact and illumination components.
Reliable Illuminated Control for Industrial Machinery
Illuminated momentary pushbuttons combine manual operator input with the capability for visual signalling in a single panel-mounted device. When pressed, the P9MPLBGD provides a temporary mechanical control action and automatically returns after release, while its white lens can provide visual indication when the operator is equipped with a compatible illumination module.
The ABB P9M modular metal range is designed for demanding applications such as mining, construction and heavy industry while retaining the flexibility of a modular pilot-device system. The P9MPLBGD can be combined with compatible ABB P9 contact blocks and illumination components to create the switching and indication arrangement required by the machine or control system.
Typical Applications
- Industrial control panels and operator stations.
- Machine command and control functions.
- Status and process indication controls.
- Manufacturing and production machinery.
- Mining, construction and heavy industrial equipment.
- OEM machinery and automation systems.
