Why Choose the ABB P9MPLRSD Pushbutton?

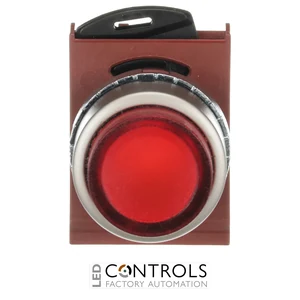

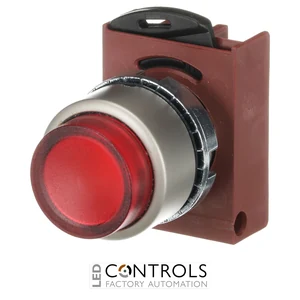

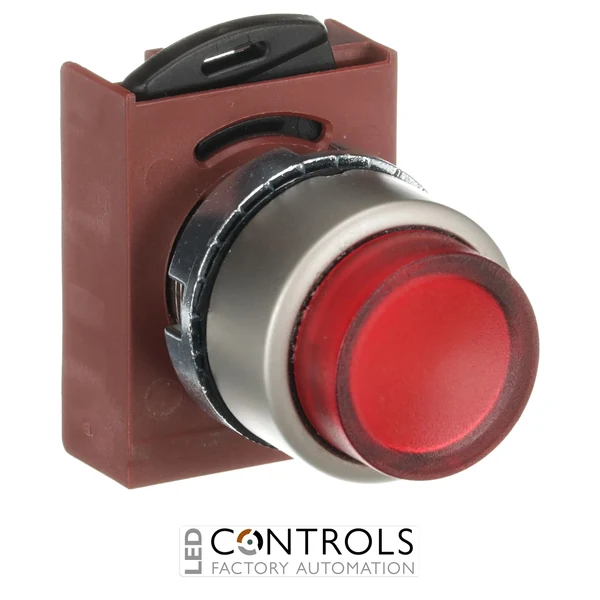

The ABB P9MPLRSD is a robust illuminated momentary pushbutton from the ABB P9M modular metal pilot-device range, designed for operator control and signalling in industrial machinery, control panels and automation systems. Supplied under ABB order code 1SFA184501R9101, it features a highly visible red extended actuator with a plastic lens and durable satin-chrome metal construction.
The P9MPLRSD uses a spring-return momentary action, returning to its normal position when released. Its illuminated actuator enables the operator control to provide visual status indication when used with a compatible lighting element, making it well suited to machinery where clear command and indication functions are important.
Designed for the standard industrial 22 mm mounting format, the P9MPLRSD includes the satin-chrome metal body, mounting nut and holder. Its IP66 front-side protection and wide operating-temperature range make it suitable for demanding applications including manufacturing, construction, mining and heavy industrial equipment.
Key Advantages
- Robust illuminated momentary pushbutton for industrial control applications.
- Highly visible red extended actuator with plastic lens.
- Spring-return operation for momentary command functions.
- Illuminated design combines operator control with visual indication.
- Durable satin-chrome metal construction for demanding environments.
- Standard 22 mm panel mounting simplifies integration.
- IP66 front-side protection for industrial installations.
- Part of ABB's flexible P9M modular metal range.
Key Features
- ABB P9M modular metal range.
- Momentary pushbutton with spring-return action.
- Extended actuator design.
- Red actuator for clear visual identification.
- Plastic lens construction.
- Illuminated operator design.
- One command position.
- Round actuator format.
- Satin-chrome metal front ring.
- Supplied with mounting holder.
- Designed for 22 mm panel cut-outs.
- IP66 protection from the front.
Reliable Operator Control and Visual Indication
Momentary pushbuttons provide a temporary electrical command while the actuator is pressed and automatically return when released. This makes the ABB P9MPLRSD suitable for start, reset, acknowledgement and other operator commands where a maintained mechanical position is not required.
The illuminated red actuator also enables clear visual signalling when combined with the appropriate P9M lighting and contact components. ABB's modular P9M architecture allows the operator to be integrated into customised control assemblies while retaining the durability required for industrial machinery and heavy-duty control stations.
Typical Applications
- Industrial machinery control panels.
- Start, reset and acknowledgement commands.
- Production and manufacturing equipment.
- Mining and heavy-industry control systems.
- Construction machinery and equipment.
- Material handling and conveyor systems.
- Operator stations and control consoles.
- OEM machinery and industrial automation systems.
